A mini self-propelled scissor lift is one of the most practical and cost-effective aerial work solutions for low-to-medium height indoor and outdoor tasks. While larger boom lifts and standard scissor lifts dominate heavy construction sites, compact mini scissor lifts fill a critical niche for jobs that require working at heights of 3 to 6 meters in confined spaces — such as ceiling installation, lighting maintenance, painting, signage work, HVAC repairs and warehouse stock picking.

The HUICHUANG HCJZ series mini electric scissor lift is engineered specifically for this segment. It features an ultra-compact chassis and is equipped with a self-propelled electric drive system. This lift can pass through standard door frames, move through narrow passages, and operate inside finished buildings without damaging the floor. This guide covers the full model range, core design features, safety systems, technical specifications and typical applications of the HCJZ series, to help buyers evaluate whether this compact aerial work platform matches their project requirements.

Product Overview and Model Range

The HCJZ series includes six standard models covering two working height ranges and three configuration levels, allowing buyers to select the exact combination of lifting height, platform extension and feature set that matches their needs.

All models share the same compact chassis footprint of 1.32m × 0.76m, a standard platform size of 1.15m × 0.6m, and a uniform rated load capacity of 240kg — sufficient for one operator with tools and materials. The two height tiers are:

• 3m lifting height / 5m working height: Models HCJZ-3A, HCJZ-3B and HCJZ-3C, suitable for standard ceiling height maintenance, interior finishing and low-level installation work
• 3.9m lifting height / 5.9m working height: Models HCJZ-4A, HCJZ-4B and HCJZ-4C, designed for slightly higher tasks such as warehouse shelving, tall ceiling lighting and multi-purpose commercial space maintenance

The configuration tiers differ in platform extension and feature set: A-series models feature a fixed platform without extension; B-series and C-series models include a 0.55m extendable platform section that expands the working radius when needed, while maintaining the compact folded dimensions for passage through narrow spaces. Machine weights range from 482kg to 692kg depending on model and configuration.

Compact Design and Indoor Versatility

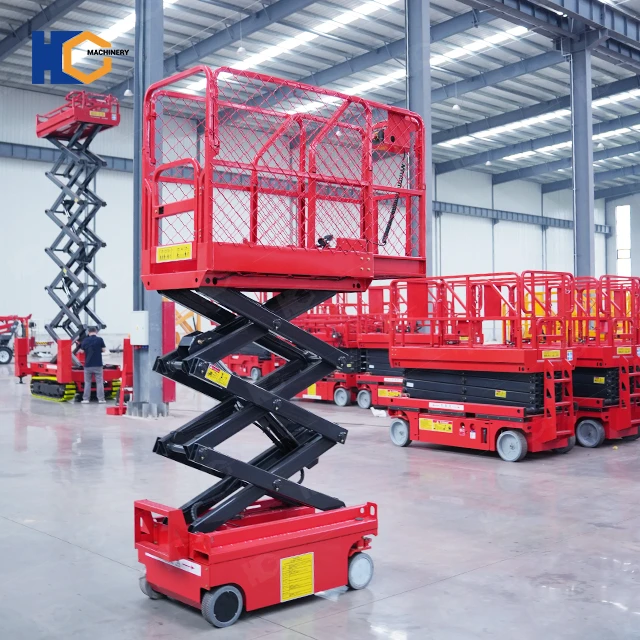

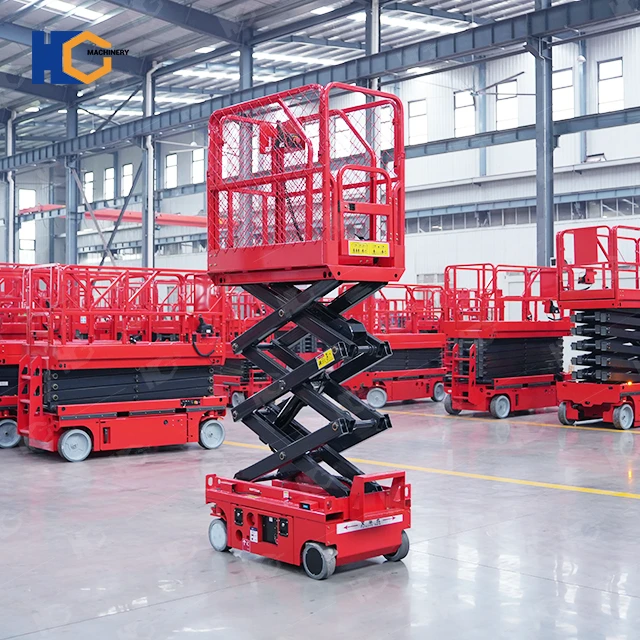

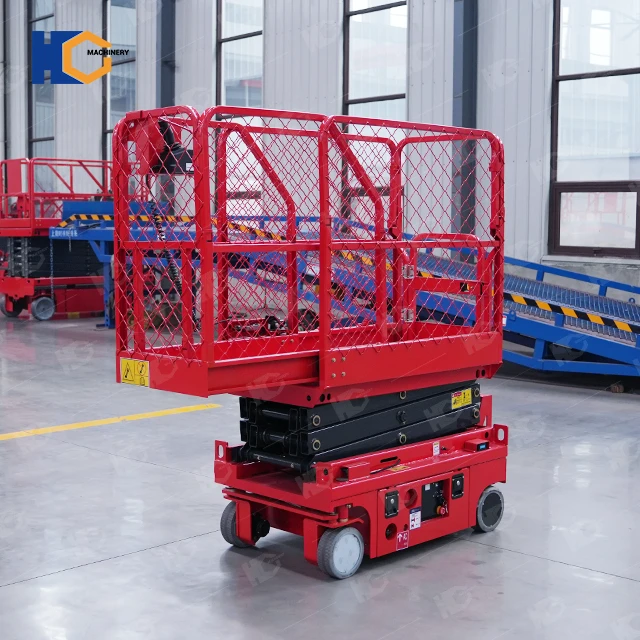

The defining advantage of a mini scissor lift is its ability to work in spaces where larger aerial equipment simply cannot reach. With an overall width of only 0.76 meters, the HCJZ series fits through standard single doorways and commercial elevator openings, allowing it to move between rooms and floors without disassembly. Its compact length of 1.32 meters also enables tight turning in corridors and confined work areas.

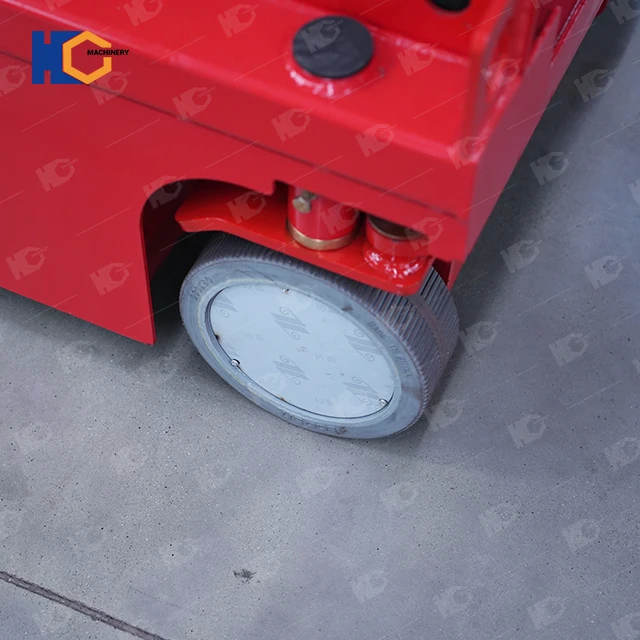

The lightweight construction — starting at just 482kg for the base model — reduces floor loading pressure, making the lift suitable for use on finished floors, raised access floors and upper building levels where heavier equipment would exceed load limits. The solid rubber wheels are non-marking and cause no damage to indoor flooring surfaces, while also providing stable traction on smooth concrete, tile and epoxy-coated warehouse floors.

For site-to-site transfer within a facility, the machine’s lightweight design and universal wheel configuration allow it to be manually moved easily when not in operation, significantly improving transfer efficiency between work zones. This makes the HCJZ series especially valuable for maintenance teams that need to move the lift frequently between different areas of a building.

Manganese Steel Scissor Structure and Build Quality

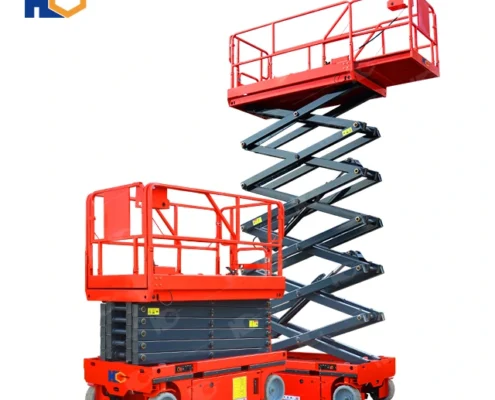

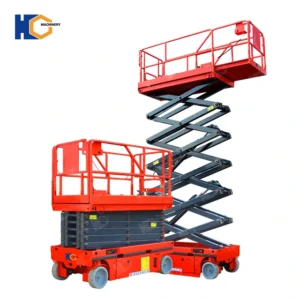

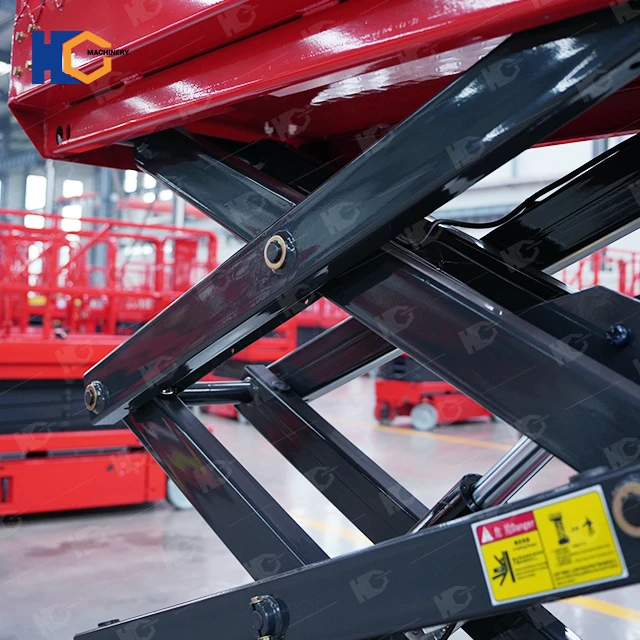

The lifting mechanism of the HCJZ series is built on a high-strength manganese steel scissor structure constructed from precision rectangular steel tubes. The crisscross scissor mechanism expands and contracts to raise and lower the platform, delivering strong lifting capacity while maintaining structural stability throughout the full travel range.

The manganese steel construction provides excellent tensile strength and fatigue resistance, ensuring the scissor arms maintain their structural integrity even after years of frequent daily use. The lifting process is smooth and lag-free, with precise positioning at any height, allowing operators to stop exactly at the required working level without overshoot or drift.

All structural steel components undergo electrophoretic anti-rust treatment, which forms a dense, uniform protective coating on all metal surfaces — including interior areas that spray paint cannot fully cover. This treatment provides superior resistance to corrosion, humidity and daily wear, extending the service life of the lift and maintaining a clean, professional appearance. The chrome-plated hydraulic cylinders are more durable and stronger than standard cylinders, resisting wear and corrosion for long-term reliable operation.

Dual Control System and Easy Operation

The HCJZ series features a dual control system that allows operators to choose the most convenient control method for each task, with no need to switch equipment — one person can complete the entire operation from setup to work execution.

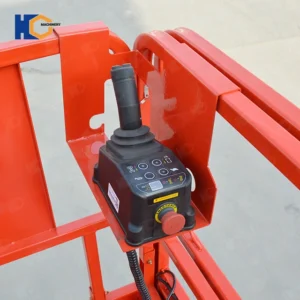

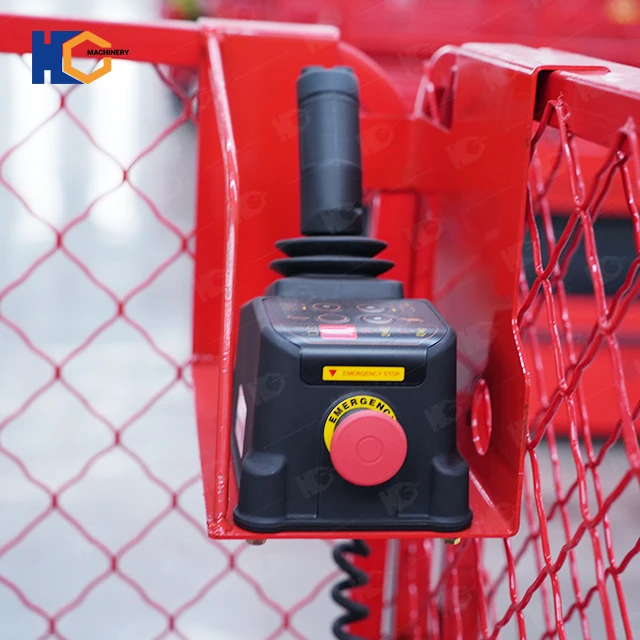

The primary control interface is the platform-mounted electric control handle. Each control button is clearly marked with instruction symbols, so users can understand how it works immediately and operate lifting, lowering and steering functions with minimal training. The intuitive joystick layout enables precise, proportional control of all movements, making the lift easy to operate for both experienced technicians and first-time users.

An optional wireless remote control is also available for B and C series models, allowing operators to control lifting and driving functions from the ground or from the platform. This is especially useful for positioning the lift under a work area before ascending, or for operations where a ground assistant needs to coordinate movement. Both control systems include a prominent emergency stop button for immediate shutdown in any situation.

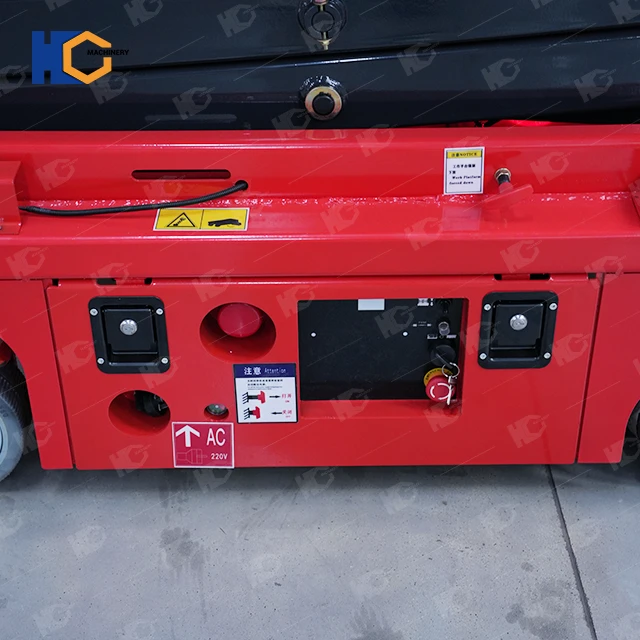

A chassis-mounted lower control panel provides basic up and down control from ground level, useful for initial setup, maintenance and when the platform needs to be lowered without an operator on board.

Electric Drive System and Low Maintenance

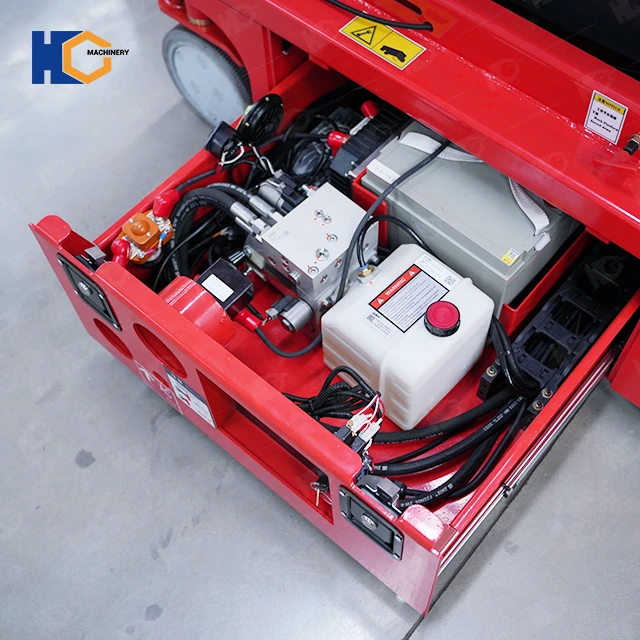

The HCJZ series is powered by an optional 24V 80Ah battery system that delivers clean, quiet operation ideal for indoor environments. The fully electric drive produces zero emissions, making it safe for use in enclosed spaces, warehouses, office buildings and retail environments where exhaust fumes would be unacceptable.

The battery supports approximately 8 hours of operation on a full charge, providing enough runtime for a full work shift on most projects. The battery is ocean-shipping certified and fully compliant with international transport regulations, simplifying import and logistics for overseas buyers. Electric scissor lifts also require significantly less maintenance than engine-powered units — there are no oil changes, fuel filters or engine tune-ups, reducing long-term operating costs and downtime.

The self-propelled drive system allows the operator to drive the lift while the platform is elevated, eliminating the need to lower, reposition and re-raise the platform for each small location adjustment. This dramatically improves productivity on projects that require working at multiple adjacent positions, such as installing a row of ceiling lights or painting a long wall section.

Comprehensive Safety Protection

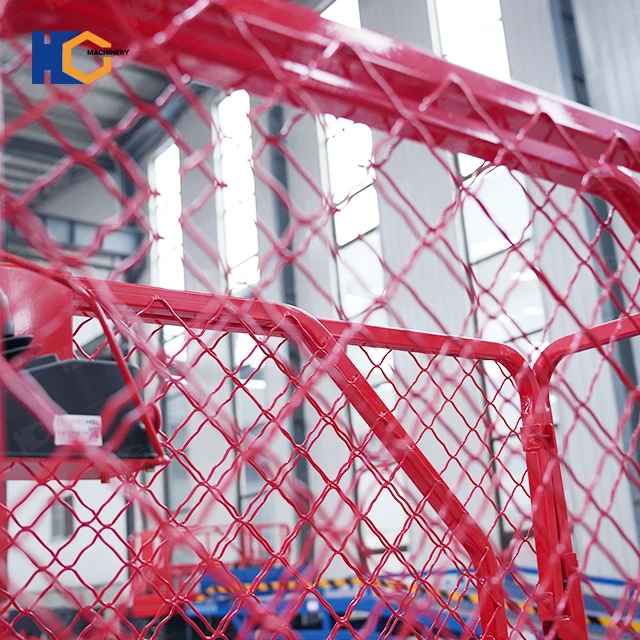

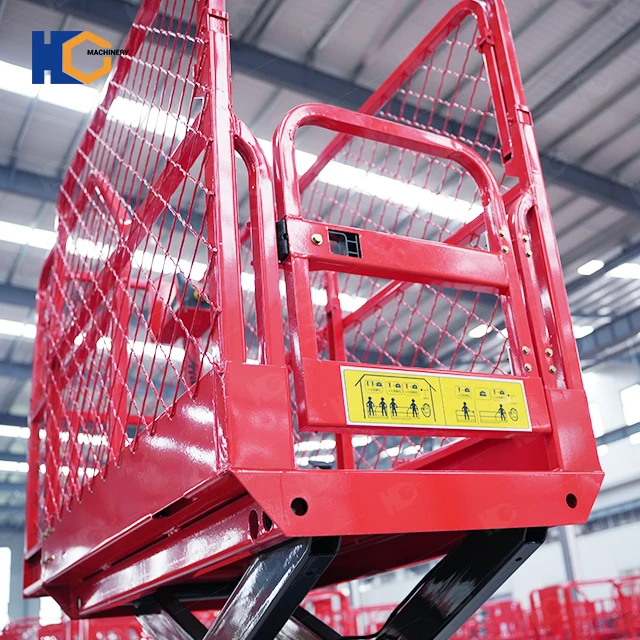

Safety is engineered into every layer of the HCJZ mini scissor lift design. The platform is surrounded by high-strength guardrails on all sides, creating a stable, enclosed work area that reduces the risk of falls and improves operator confidence when working at height. The platform floor features an anti-slip surface that prevents personnel and materials from slipping, even in damp or dusty conditions. Multiple safety locking mechanisms on the guardrail access door prevent accidental falls during operation.

The hydraulic system is fitted with an explosion-proof valve that protects the platform from falling in the event of a hydraulic hose failure or sudden pressure loss. This valve automatically locks the cylinder if it detects an uncontrolled descent, holding the platform in place until the issue can be safely resolved.

Additional standard safety features include an emergency stop button on both the platform and ground control panels, overload protection that prevents lifting when the platform load exceeds the rated capacity, and a tilt sensor that warns the operator if the machine is operating on ground beyond the safe angle. The extendable platform models include an automatic locking door on the extension section, ensuring the platform cannot be extended or retracted accidentally during operation.

Technical Specifications

Model	Lifting Height	Working Height	Overall Size (L×W×H)	Platform Size	Extended Platform	Load Capacity	Weight
HCJZ-3A	3 m	5 m	1.32×0.76×1.43 m	1.15×0.6 m	—	240 kg	482 kg
HCJZ-4A	3.9 m	5.9 m	1.32×0.76×1.52 m	1.15×0.6 m	—	240 kg	576 kg
HCJZ-3B	3 m	5 m	1.32×0.76×1.43 m	1.15×0.6 m	0.55 m	240 kg	630 kg
HCJZ-4B	3.9 m	5.9 m	1.32×0.76×1.59 m	1.15×0.6 m	0.55 m	240 kg	688 kg
HCJZ-3C	3 m	5 m	1.32×0.76×1.43 m	1.15×0.6 m	0.55 m	240 kg	650 kg
HCJZ-4C	3.9 m	5.9 m	1.32×0.76×1.59 m	1.15×0.6 m	0.55 m	240 kg	692 kg

All models feature manganese steel scissor construction, electrophoretic anti-rust treatment, chrome-plated hydraulic cylinders, solid rubber wheels and a 24V electric drive system.

Typical Application Scenarios

Thanks to its compact dimensions, zero-emission electric drive and non-marking wheels, the HCJZ mini scissor lift serves a wide range of indoor and light outdoor applications:

• Commercial building maintenance: Ceiling light replacement, HVAC filter changes, sprinkler system inspection and high-level cleaning in offices, malls and hotels
• Interior construction and finishing: Drywall installation, ceiling grid work, painting, wallpaper hanging and electrical rough-in during new construction or renovation
• Warehousing and logistics: Stock picking, shelf installation, inventory checking and equipment maintenance in narrow-aisle warehouses and distribution centers
• Retail and display work: Signage installation, seasonal display setup, storefront maintenance and lighting adjustment in retail environments
• Institutional facilities: School, hospital and government building maintenance where quiet, emission-free operation is required
• Industrial plant maintenance: Low-level equipment servicing, pipe inspection and lighting maintenance in factories and production facilities

The extendable platform option is particularly valuable for tasks that require reaching slightly beyond the standard platform footprint, such as working around ceiling fixtures or along wall edges, without needing to reposition the entire machine.

Why Choose HUICHUANG

HUICHUANG is a professional manufacturer of aerial work platforms and lifting equipment based in China, with years of experience serving global construction, rental, facility maintenance and industrial markets. Our HCJZ series mini self-propelled scissor lifts are built with standardized production processes and strict quality control at every manufacturing stage, from raw material inspection to final factory testing.

We provide full-cycle customer support, including pre-sales model selection guidance, custom configuration options, operation training and long-term after-sales spare parts support. Every unit undergoes complete assembly, debugging and full safety inspection before shipment, arriving ready for immediate on-site deployment. Our compact structure design with drawout-type component layout also makes routine maintenance easy, reducing service time and keeping the lift productive.

Conclusion

The HUICHUANG HCJZ series mini self-propelled scissor lift delivers professional-grade aerial access in a compact, affordable package designed specifically for low-to-medium height indoor work. With its 0.76m ultra-narrow chassis, zero-emission electric drive, manganese steel scissor structure, dual control system and comprehensive multi-layer safety protection, it provides a reliable, efficient and safe solution for jobs that larger equipment cannot handle.

Whether you operate a facility maintenance team, run a small rental fleet, manage interior construction projects or work in warehousing and logistics, this mini scissor lift offers the right balance of compact size, working height, load capacity and ease of use. With six model configurations covering 3m and 4m lifting heights with optional platform extension, there is an HCJZ configuration to match virtually any low-level aerial work requirement.

Investing in a quality mini electric scissor lift pays back through improved work efficiency, reduced reliance on ladders and scaffolding, lower long-term maintenance costs and, most importantly, safer working conditions for operators at height. Contact our technical team with your project requirements to receive a tailored model recommendation and configuration quote.
