Heavy duty HC-SL21 hydraulic rotary scissor lift table with 360° turntable. Manganese steel frame, anti-slip surface and CE certification for car showrooms, trade shows and industrial assembly lines. Custom load 1-100 tons, indoor & outdoor installation.

Introduction

Across automotive retail, trade exhibitions and industrial manufacturing, handling heavy display items or workpieces usually requires two separate tools: a scissor lift for height adjustment and a fixed turntable for angle control. This split setup wastes valuable floor space, creates workflow interruptions and raises overall equipment costs. For showroom operators, event planners and production managers seeking to improve efficiency while saving space, an integrated lifting and rotation solution delivers clear practical and economic benefits.
Manufactured by HUICHUANG, the HC-SL21 hydraulic rotary scissor lift table is a 2-in-1 industrial unit that combines smooth vertical lifting and stable 360-degree rotation in a single heavy-duty structure. Built with a thickened steel chassis and high-strength manganese steel scissor arms, it delivers consistent reliability for both static display and dynamic operation in indoor and outdoor environments. All specifications including size, lifting height and load capacity are fully customizable to fit specific project needs. This guide covers its core features, component design, technical parameters and common applications to help buyers evaluate a reliable all-in-one rotating lifting solution.

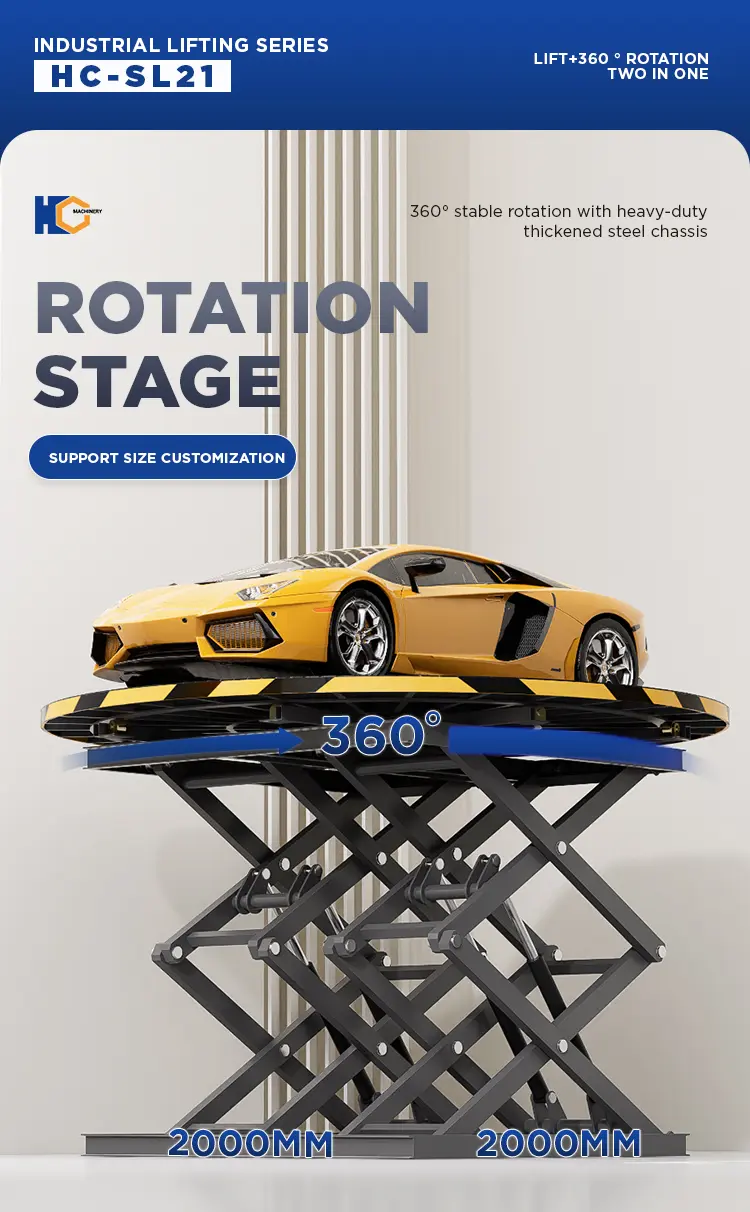

Product Overview

As part of the industrial lifting series, the HC-SL21 pairs a hydraulic scissor lift base with a motorized circular turntable mounted on the top platform. Hydraulic cylinders drive the scissor mechanism for steady vertical movement, while the upper turntable runs along a reinforced track for continuous 360° rotation. The two functions can be controlled separately or operated at the same time, allowing operators to adjust height and angle smoothly to match display, assembly or inspection requirements.
The heavy-duty thickened steel base ensures excellent lateral stability even at maximum lifting height and rotation speed, with minimal vibration and no sway. The platform features an anti-slip checkered steel surface for secure traction and even load distribution. All steel parts receive anti-corrosion treatment, and core hydraulic and electrical components use sealed enclosures, supporting both permanent indoor installation and covered outdoor use. Standard models cover lifting heights from 1 to 20 meters and load capacities from 1 to 100 tons, with full customization available for special project needs.

Six Core Advantages

1. Space-Saving 2-in-1 Integrated Design

By combining lifting and rotation in one unit, the HC-SL21 replaces separate lift tables and turntables, cutting required floor space by nearly half. This is ideal for compact urban showrooms, small exhibition booths and limited production areas. The integrated design also lowers total purchase, installation and maintenance costs, as only one power and control system is needed.

2. Simple One-Key Dual Control

The system uses an intuitive one-key dual control interface with separate commands for lifting and rotation, requiring minimal staff training. A wired control panel comes as standard, and a wireless remote is available for flexible operation during events and exhibitions. Operators can switch between continuous rotation and fixed-angle positioning to suit different workflows.

3. Multi-Layer Safety Protection

Safety is built into every level of the design. An overload relief valve stops lifting automatically if load exceeds rated capacity. Upper and lower limit switches prevent over-travel, and an emergency stop button halts all movement instantly in abnormal situations. The reinforced steel structure also provides a high structural safety factor for stable static holding and dynamic operation.

4. Wide Anti-Slip Platform Surface

The diamond-pattern checkered steel platform increases surface friction, preventing vehicles, workpieces and display items from shifting during rotation and lifting, even on damp surfaces. The solid one-piece plate distributes weight evenly across the structure, avoiding concentrated stress points. Optional edge safety strips and guardrails are available for extra pedestrian protection.

5. Weatherproof & Rustproof Build

Multi-layer anti-corrosion coating and sealed electrical and hydraulic enclosures give the unit weatherproof and rustproof performance. It works reliably in covered outdoor event spaces, semi-open production areas and humid workshop environments, withstanding temperature changes, dust and occasional moisture without premature wear or corrosion.

6. Standard Certified Quality

The HC-SL21 meets international machinery safety standards and holds CE certification. Every unit passes full-load lifting, rotation and safety function tests before shipment, with complete technical documentation provided. Standardized quality control also ensures easy spare parts replacement and low long-term maintenance costs.

Core Component Design

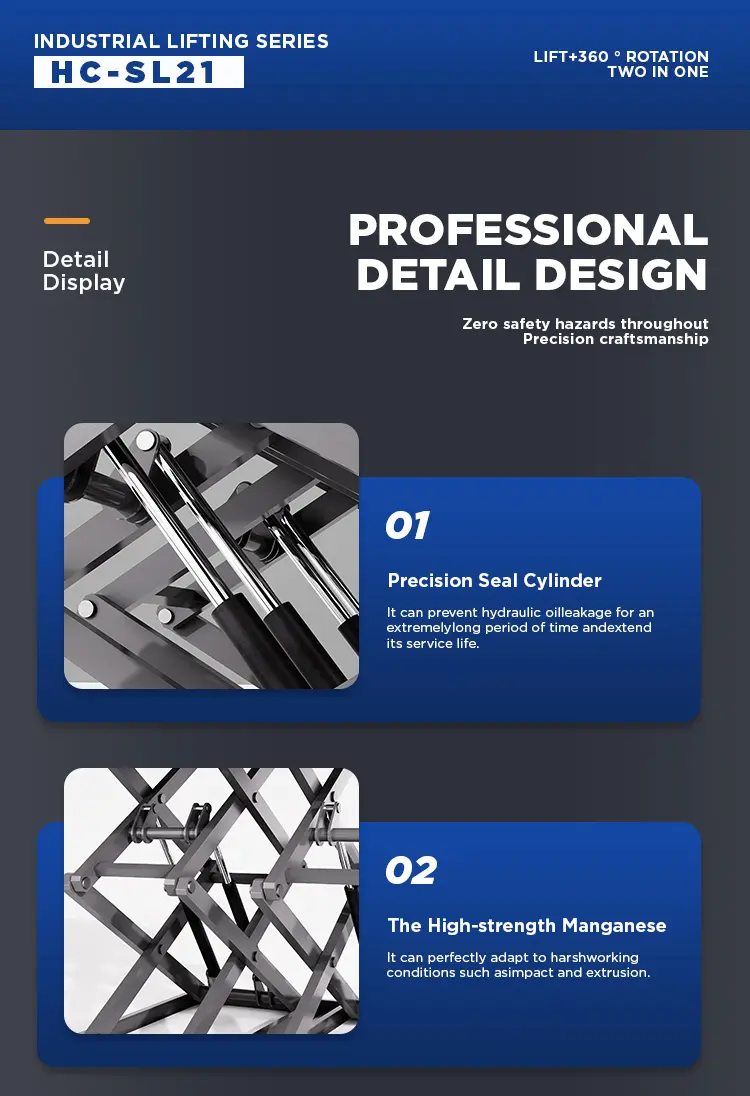

Precision Seal Hydraulic Cylinders

High-grade hydraulic cylinders with precision seals deliver long-term leak resistance and stable, jolt-free lifting motion. Reliable sealing keeps work areas clean and protects showroom floors from oil stains. A synchronized cylinder layout keeps the platform perfectly level, maintaining accurate turntable rotation at all heights.

High-Strength Manganese Steel Scissor Frame

The scissor arm assembly is made of high-toughness manganese steel, with excellent resistance to impact, extrusion and heavy-load fatigue. Full-penetration welds with stress relief treatment reduce deformation risk and extend structural service life, maintaining accuracy after thousands of lifting and rotation cycles.

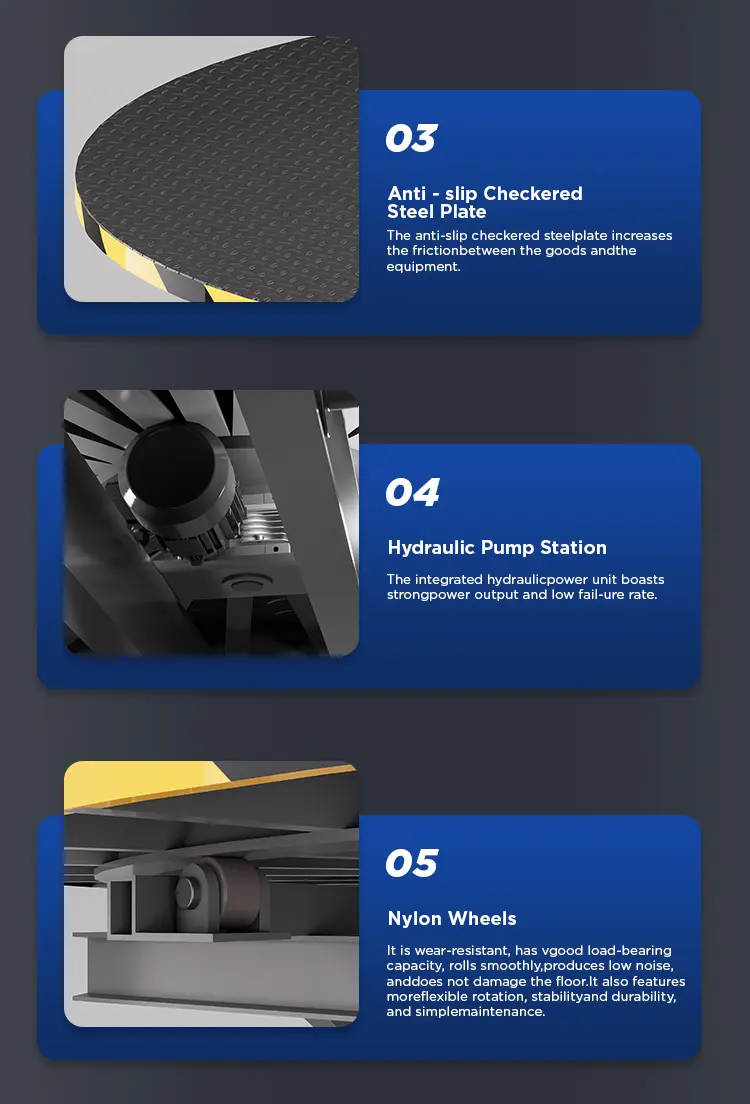

Anti-Slip Checkered Steel Tabletop

The solid diamond-pattern checkered steel turntable provides high friction to keep loads firmly in place during start, stop and continuous rotation. The thick plate distributes weight evenly to avoid local sagging under heavy loads, and its wear-resistant texture retains anti-slip performance after years of use.

Integrated Hydraulic Pump Station

The fully enclosed integrated hydraulic power unit delivers strong, consistent output with low failure rates and quiet operation. Its compact design saves installation space, and low noise output suits showrooms, theaters and office-adjacent production areas. It includes built-in overpressure protection and a manual lowering valve for safe descent during power outages.

Heavy-Duty Nylon Rotation Wheels

The turntable runs on heavy-duty nylon support wheels that provide smooth, low-noise rotation with high load capacity. Unlike metal rollers, nylon wheels do not scratch or mark finished floors, making them ideal for premium showrooms and event venues. The self-lubricating material requires only simple periodic cleaning for maintenance.

Technical Specifications

All parameters can be fully customized to match specific project requirements. The table below shows the standard configuration range of the HC-SL21 series:
ParameterStandard RangeCustomization Options
Lifting Height1 – 20 metersCustom stroke for display, production or stage use
Lifting Speed4 – 6 m/minAdjustable speed for precision positioning
Rotation Mode360° continuous / fixed angleVariable speed & automatic angle stop
Power Supply220V / 380V ACCustom voltage for regional grid standards
Platform Size1×1m / 2×2m referenceCustom diameter, shape and surface finish
Rated Load Capacity1 – 100 tonsEngineered for vehicle, industrial and stage loads
InstallationIndoor / covered outdoorPit-mount and weather protection packages available
Control SystemWired button panelWireless remote, PLC automation integration

Wide Range of Applications

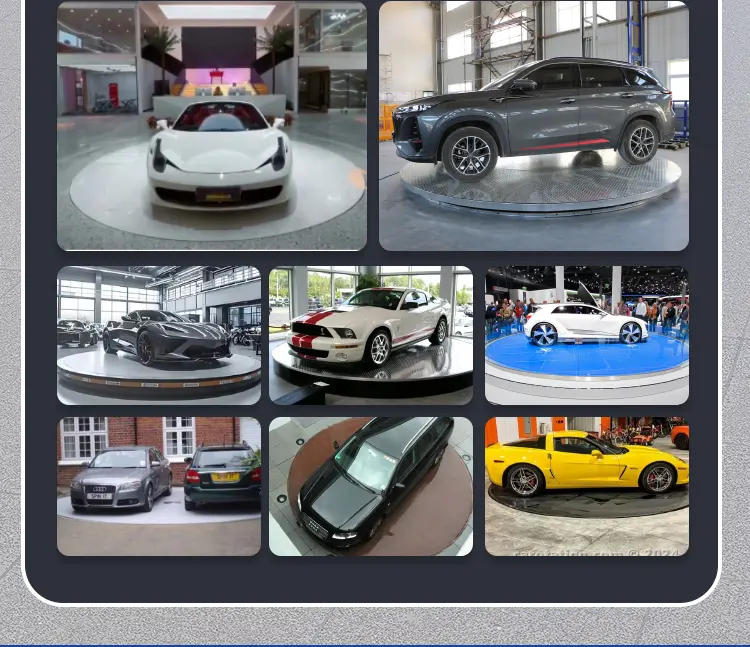

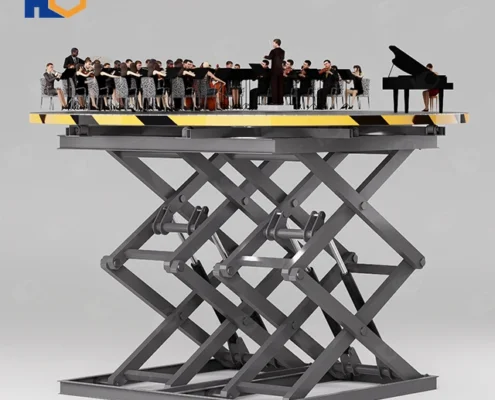

The HC-SL21 serves diverse commercial and industrial use cases. In automotive showrooms and trade exhibitions, it creates eye-catching centerpiece displays, letting visitors view every angle of featured vehicles without walking around, and its semi-portable design supports fast setup between events. For industrial assembly and quality inspection, it allows workers to adjust height to ergonomic levels and rotate workpieces to access all sides, improving efficiency and reducing physical strain. In theaters, brand launches and live events, it acts as flexible stage machinery for lifting performers and set pieces, offering creative flexibility at a lower cost than custom permanent stage equipment.

Customization & Installation Support

The HC-SL21 supports full custom configuration to match unique site and project requirements. The HUICHUANG technical team designs tailored solutions based on site dimensions, load needs and application scenarios, with options for pit installation, above-ground installation and semi-portable setups. Full OEM and ODM services are also available for distributors and brand partners, including private labeling and custom packaging. Units ship as pre-assembled modules with full English manuals, and remote technical guidance is provided to support local installation and commissioning.

Conclusion

The HC-SL21 360° hydraulic rotary scissor lift table provides a space-efficient, cost-effective 2-in-1 solution for lifting and rotation across automotive display, event and industrial applications. Its heavy-duty manganese steel frame, precision hydraulic system and smooth rotation mechanism deliver stable, reliable performance while eliminating the need for multiple separate equipment pieces.
With fully customizable size, load capacity and lifting height, it adapts easily from small luxury showroom displays to large industrial assembly stations and major trade events. For auto dealers, event producers and manufacturing facilities looking to improve presentation quality, streamline workflows and save floor space, this all-in-one rotary lift offers a practical, durable upgrade with clear returns.
If you are planning a showroom upgrade, exhibition project or production line improvement, the HUICHUANG team can provide a custom HC-SL21 configuration matched to your exact needs. Contact us today for detailed specifications, layout drawings and a formal quotation.
