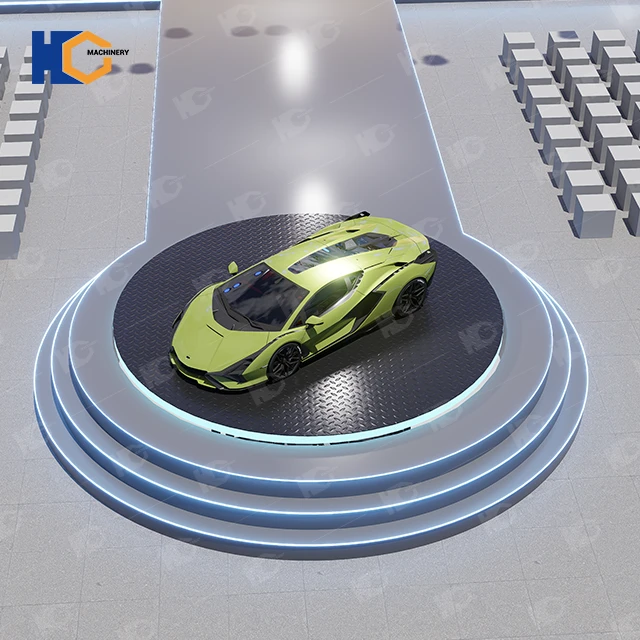

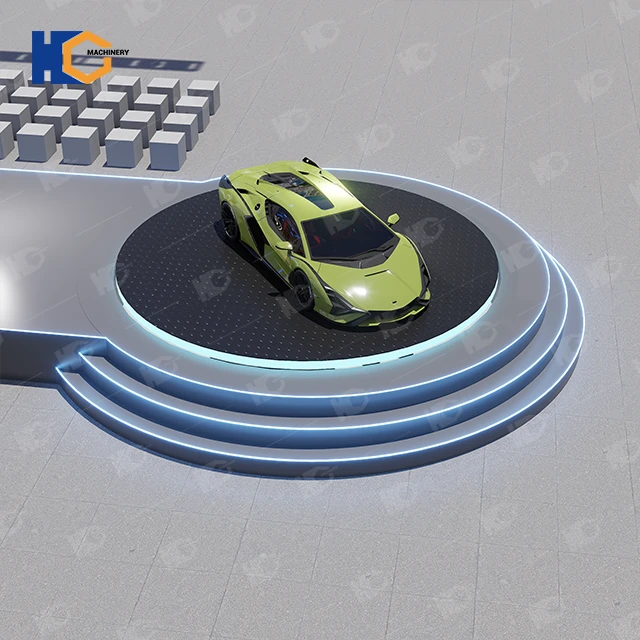

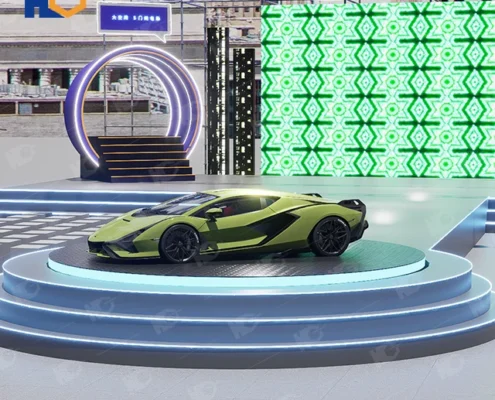

Hydraulic Scissor Lift with 360° Turntable for Car Display

Model: Hydraulic Scissor Lift with 360° Turntable
Brand: HUICHUANG(JNHC lift)
Customization: YES
Manual: YES
Payment Methods: TT
Delivery time: 15 working days

+8615628811021

admin@jnhclift.com

Heavy duty hydraulic scissor lift with 360° turntable designed for car showrooms, auto exhibitions and vehicle display events. Smooth lifting, stable rotation, anti-slip platform and weatherproof construction to elevate automotive presentation and maximize showroom space efficiency.

Introduction

In automotive retail and brand marketing, static vehicle displays deliver limited visual impact, especially for premium and performance vehicle brands where presentation quality directly shapes customer perception. Customers walking around a parked car often miss key design details, and low fixed platforms fail to make featured models stand out in crowded showrooms or busy exhibition halls. Basic floor turntables offer rotation but cannot adjust viewing height; standalone scissor lifts add elevation but lack 360° presentation capability. For luxury dealerships, auto show organizers and automotive brand teams, combining both functions in a single, space-saving unit has become a cost-effective way to upgrade display quality without expanding valuable floor space.

This hydraulic scissor lift with 360° turntable is engineered specifically for automotive display scenarios, integrating vertical lifting and full-circle rotation into one robust unit built on a thickened steel chassis. It allows dealership staff and event organizers to adjust both vehicle height and viewing angle with simple controls, creating dynamic, eye-catching presentations for sedans, sports cars, SUVs and classic models. With a heavy-duty load rating, anti-slip platform surface and weatherproof construction, it works equally well in permanent indoor showrooms and temporary outdoor brand events. This guide covers its working principle, display-focused advantages, core component design, technical specifications and real-world automotive applications to help dealers, event planners and facility managers select a reliable vehicle display solution.

Product Overview

This all-in-one display unit combines a heavy-duty scissor lifting structure with a motorized circular turntable mounted on top, driven by an integrated hydraulic power system. The lower scissor mechanism delivers smooth, steady vertical lifting powered by dual synchronized hydraulic cylinders, while the upper turntable rotates continuously along a reinforced circular track supported by heavy-duty guide wheels. Lifting and rotation can be controlled independently or operated at the same time, so operators can fine-tune both height and angle to achieve the ideal presentation effect.

Built on a thickened steel base frame with a symmetric scissor layout, the unit maintains stable balance even at maximum lifting height and during slow rotation, with no noticeable sway or vibration that could affect displayed vehicles. The platform surface uses anti-slip checkered steel plate to keep tires firmly in place during movement. All structural steel receives multi-layer anti-corrosion treatment, and core electrical and hydraulic parts use sealed enclosures, supporting both indoor permanent installation and covered outdoor event use. Standard platform sizes accommodate most passenger vehicles, and custom diameters and load ratings are available for full-size SUVs, pickup trucks and specialty vehicles.

Core Advantages for Automotive Display

1. 360° Full-Angle Vehicle Presentation

The built-in 360° turntable allows visitors to view every exterior detail of a vehicle from a single standing position, eliminating the need for customers to circle the car repeatedly. For sales teams, this makes it easier to showcase body lines, wheel design, paint finish and rear styling without manually repositioning the vehicle. In busy auto shows, rotating displays naturally draw foot traffic and keep visitors at the booth longer, increasing opportunities for meaningful customer engagement and product consultation.

2. Adjustable Lifting Height for Visual Focus

Vertical lifting capability elevates featured vehicles to natural eye level or creates a raised stage effect, making hero models stand out even in crowded showrooms and exhibition halls. Adjustable height also supports flexible use cases: lower positions for daily customer walk-around viewing, and raised positions for launch events, award ceremonies and professional photo shoots. Unlike fixed raised platforms, the lift can be lowered flush with the floor for easy vehicle drive-on and drive-off access.

3. Space-Saving All-in-One Design

Replacing two separate pieces of equipment — a static display platform and a floor turntable — with one integrated unit cuts the required floor footprint roughly in half. This is especially valuable for urban dealerships with limited showroom space and small exhibition booths at trade shows. The compact integrated design also reduces installation work and overall equipment costs, since only one power supply and one control system are needed.

4. Safe, Vehicle-Friendly Platform Surface

The full platform is fabricated from diamond-pattern checkered steel plate, which creates high friction between tire rubber and the lift surface. This prevents tire slippage during rotation and lifting, even when tires carry rainwater or road dust from outdoor test drives. The flat, continuous plate supports even weight distribution across all four tires, avoiding uneven pressure that could damage low-profile tires on high-performance vehicles.

5. Weatherproof Build for Indoor and Outdoor Use

All structural steel components receive rust-inhibiting primer and durable powder coating, while hydraulic and electrical connections use sealed moisture-resistant enclosures. This weatherproof construction allows the unit to be used at covered outdoor brand launches, dealership open-house events and open-air auto shows. It withstands dust, light rain and temperature changes without performance loss or premature corrosion.

6. Simple Operation with Minimal Training

The unit features an intuitive one-key dual control system with separate buttons for lifting and rotation. Showroom staff can master basic operation after a short briefing, with no specialized technical knowledge required. Wireless remote control is also available, allowing sales staff to operate the lift while walking with customers and explaining vehicle features in detail.

Core Component Design

Precision Seal Hydraulic Cylinders

Dual synchronized hydraulic cylinders are fitted with high-performance precision seals that prevent oil leakage over long service life. This not only maintains consistent, smooth lifting performance but also eliminates the risk of oil stains on premium showroom floors — a critical concern for high-end dealerships with polished tile or epoxy surfaces. Stable cylinder pressure also ensures jolt-free movement that will not shift or damage displayed vehicles.

High-Strength Manganese Steel Scissor Frame

The main scissor arm structure is manufactured from high-toughness manganese steel, chosen for its excellent load capacity and resistance to impact and long-term fatigue deformation. All critical welds use full-penetration welding with post-weld stress relief treatment to maintain structural accuracy after thousands of lifting cycles. This heavy-duty build safely supports luxury vehicles, electric SUVs and classic cars with high curb weights for extended static display periods.

Anti-Slip Checkered Steel Platform

The turntable surface is made from solid diamond-pattern checkered steel plate. The raised texture increases surface friction to keep vehicle tires securely positioned during start, stop and continuous rotation, even on damp surfaces. The one-piece plate distributes vehicle weight evenly across the entire support structure, avoiding concentrated stress points. The surface is also easy to clean, making it simple to maintain a polished, professional showroom appearance.

Integrated Hydraulic Pump Station

The fully enclosed integrated hydraulic power unit delivers stable, consistent pressure with low failure rates and quiet operation. Low-noise performance is essential for showroom environments, where loud mechanical equipment would disrupt customer conversations and the premium retail atmosphere. The station includes built-in overpressure protection to prevent overload damage, plus a manual lowering valve for safe platform descent during power outages.

Heavy-Duty Nylon Rotation Wheels

The turntable runs on heavy-duty nylon support wheels that provide smooth, low-noise rotation with excellent load-bearing capacity. Unlike metal rollers, nylon wheels will not scratch or mark finished showroom floors, preserving the condition of high-end retail spaces. The material also has natural self-lubricating properties, requiring only simple periodic track cleaning to maintain smooth rotation and reduce long-term maintenance work.

Technical Specifications

All parameters can be customized to match specific vehicle sizes and site requirements. The table below shows the standard configuration range:

Parameter	Standard Range	Customization Options
Lifting Height	1 – 6 meters	Custom stroke for showroom stage and pit installation
Lifting Speed	4 – 6 m/min	Adjustable slow-speed mode for precision display positioning
Rotation Mode	360° continuous / fixed angle	Variable speed control and automatic angle stop
Power Supply	220V / 380V AC	Custom voltage for regional electrical standards
Platform Diameter	2m / 3m / 5m reference	Custom size for sports cars, SUVs and commercial vehicles
Rated Load Capacity	3 – 10 tons	Upgraded capacity for heavy electric vehicles and trucks
Installation	Indoor / covered outdoor	Pit-flush and above-ground installation packages
Control Method	Wired control panel	Wireless remote, floor call buttons and PLC integration

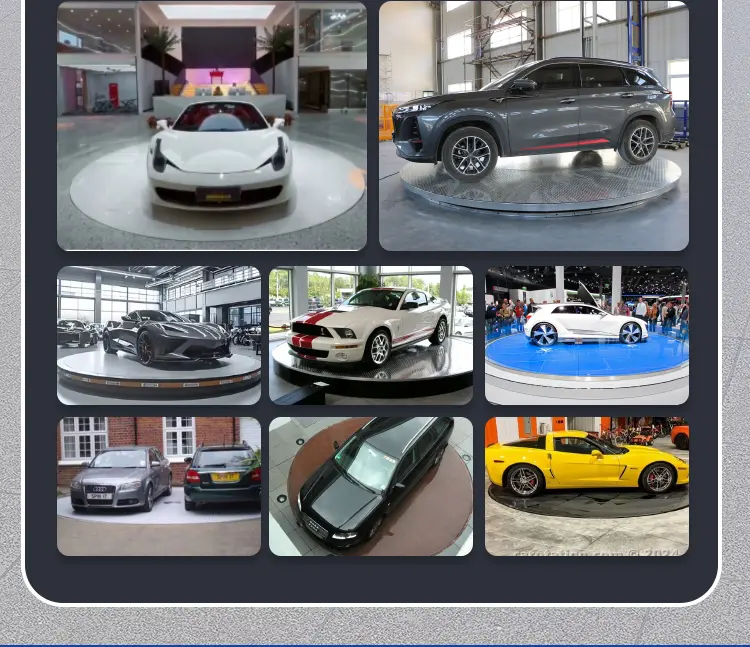

Common Automotive Application Scenarios

Luxury Auto Dealership Showrooms

Premium brand dealerships use the lift as a centerpiece display for featured new models, limited-edition vehicles and certified pre-owned luxury cars. Pit-flush installation creates a seamless floor finish when lowered, while elevated rotation turns the vehicle into an eye-catching focal point that guides customer flow through the showroom. Many locations pair the lift with accent lighting to further highlight body contours and paint finishes, amplifying the premium atmosphere.

International Auto Shows & Trade Exhibitions

At major auto shows and brand exhibitions, exhibitors deploy these rotating lift platforms to make booths stand out on crowded show floors. The semi-portable design supports fast assembly and disassembly between event dates, and the robust structure withstands frequent transport between exhibition venues across different cities.

Automotive Photography & Video Studios

Professional automotive media studios and in-house brand marketing teams use the lift to streamline vehicle photo and video shoots for advertising, social media and product catalogs. Adjustable height and smooth, controllable rotation allow photographers to capture every angle without repositioning the vehicle or rearranging lighting setups, cutting overall production time significantly.

Classic Car Restoration & Collection Facilities

Classic car restoration shops and private collection garages use the unit to display finished vehicles and support detailing work. Rotation allows technicians to inspect paint and bodywork from all angles, while lifting provides comfortable access to lower body panels and wheel areas without climbing or excessive bending.

Outdoor Brand Launch & Marketing Events

For new model launches, pop-up brand experiences and outdoor test drive events, the weatherproof unit is set up under covered outdoor areas to create a premium display stage. Its quiet operation ensures it does not interfere with presentation audio, guest speeches and live brand announcements.

Operation & Maintenance Guidance

Daily operation is straightforward: drive the vehicle onto the center of the platform, apply the parking brake, and exit the vehicle before operating the lift. Use the control panel or remote to adjust height and rotation speed as needed for the display scenario.

With basic routine care, the unit delivers many years of reliable service. Recommended maintenance includes monthly inspection of hydraulic fluid levels and cylinder seal condition, quarterly cleaning of the turntable track and scissor pivot points, and an annual full safety check of limit switches, emergency stop function and structural welds. For outdoor units, periodic cleaning and inspection of anti-corrosion coatings is advised. All maintenance should be performed by qualified personnel following the official operation manual, and the unit must never be operated beyond its rated load capacity.

Frequently Asked Questions

Q: Can this unit be installed flush with the showroom floor?

A: Yes, pit-recessed installation is fully supported so that the platform sits completely level with the surrounding floor when fully lowered. We provide detailed pit construction drawings for your building contractor to follow.

Q: Is it suitable for heavy electric vehicles with large battery packs?

A: Yes. The evenly supported full-platform design distributes weight uniformly across the entire surface, and upgraded load capacity options are available for heavy electric SUVs and pickup trucks.

Q: What happens if there is a power outage during an event?

A: The hydraulic system is equipped with a manual lowering valve that allows the platform to descend smoothly and safely to ground level even without power. Optional backup power systems are also available for uninterrupted event operation.

Q: Will the turntable wheels scratch our polished showroom floor?

A: No. The turntable uses heavy-duty nylon support wheels that are non-marking and floor-friendly, so they will not scratch or damage polished tile, epoxy or concrete showroom surfaces.

Conclusion

The hydraulic scissor lift with 360° turntable offers automotive retailers, event organizers and brand teams a compact, high-impact solution for upgrading vehicle displays. By combining adjustable vertical lifting and smooth full-circle rotation in a single heavy-duty unit, it improves presentation quality, saves valuable showroom space and reduces overall equipment costs compared with separate display tools.

Built with high-strength manganese steel, precision hydraulics and a vehicle-friendly anti-slip platform, it delivers stable, long-lasting performance suitable for both permanent showroom installation and temporary event use. For dealerships looking to elevate their customer experience, event teams seeking more dynamic booth displays, and automotive studios aiming to streamline production workflows, this all-in-one rotating lift provides a practical, cost-effective upgrade with measurable visual impact.

If you are planning a showroom upgrade, exhibition booth design or automotive display project, welcome to contact our team with your vehicle specifications and site details. We will provide a custom configuration recommendation, layout drawing and formal quotation tailored to your project requirements.
