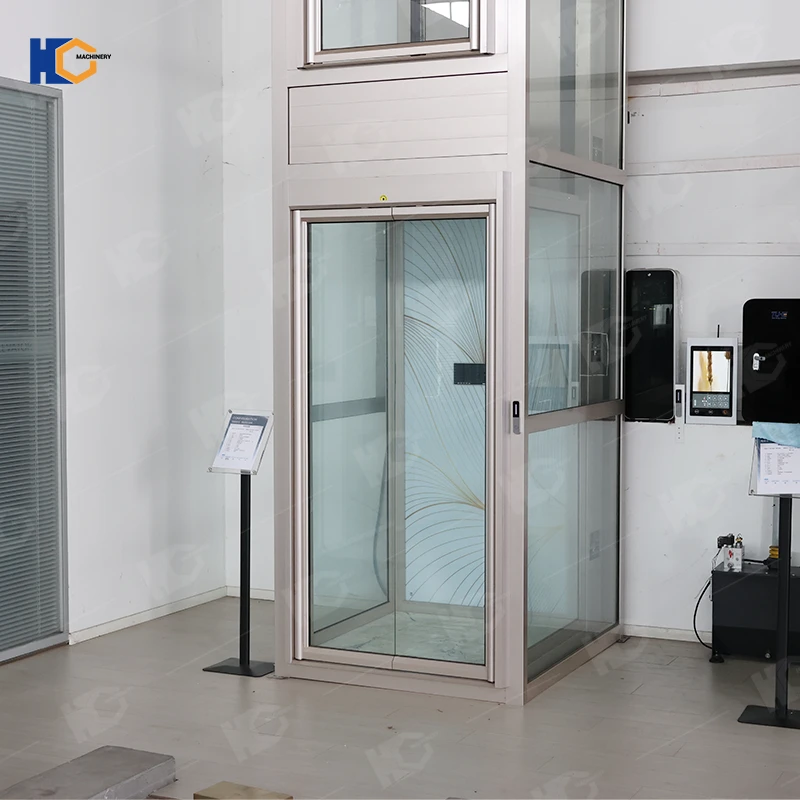

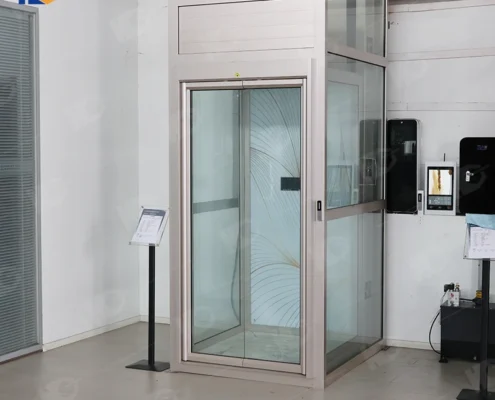

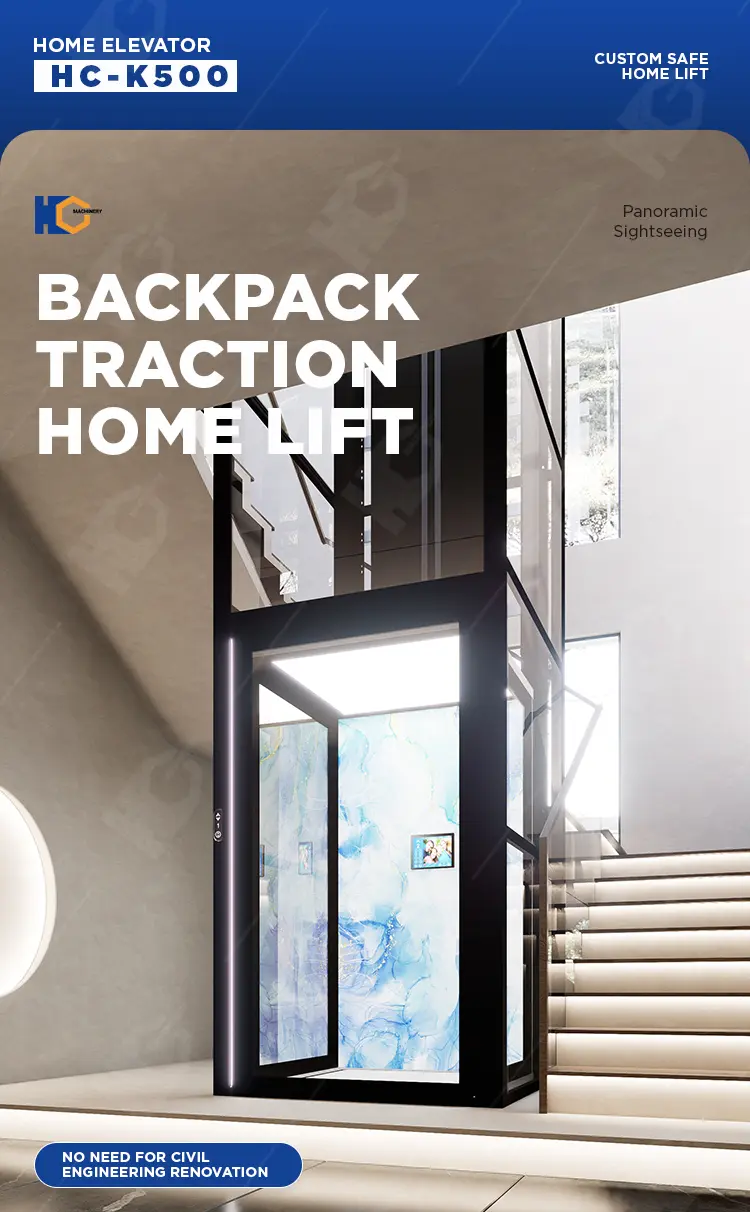

What Is a Backpack Traction Home Elevator?

A Backpack Traction Home Elevator is a residential lift that uses a backpack-style traction mechanism instead of hydraulic systems. The “backpack” refers to the counterweight design located behind the cabin, making the structure simple and space-saving.

Key Features:

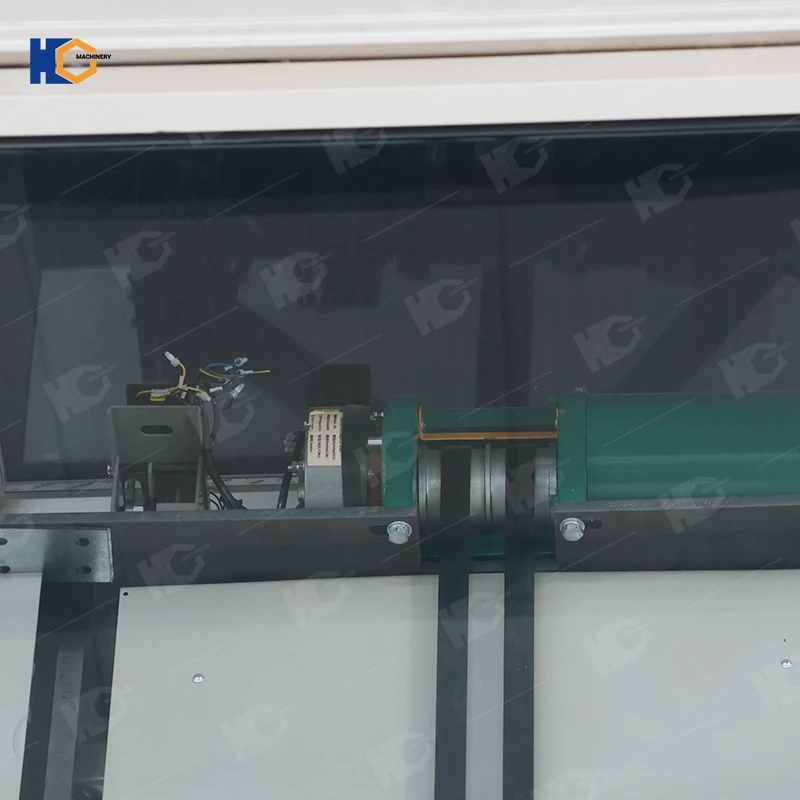

1. Traction Drive System – Uses a motor with a counterweight to balance the cabin, reducing power consumption.
2. Compact Shaft Structure – Requires minimal pit and overhead space, suitable for villas and apartments.
3. Low Noise & Energy Saving – The system is efficient and environmentally friendly.
4. Safe & Comfortable Ride – Equipped with safety brakes, emergency systems, and smooth start-stop control.
5. Elegant Design – Glass panels, aluminum frames, and customizable cabin interiors match French architectural styles.

---

Technical Specifications

Below is a general technical specification table for Backpack Traction Home Elevators in France:

---

Standard Configuration

Cabin Decoration

• Cabin wall: Stainless steel with etching patterns or tempered glass, available in multiple color options
• Cabin ceiling: Stainless steel ceiling
• Flooring: Standard PVC floor with multiple pattern options

Standard Safety Devices

• ARD (Automatic Rescue Device)
• Infrared light curtain door protection
• Safety gear
• Buffer
• Governor and tensioner

Comprehensive Multi-Layer Safety Protection

Safety is the foundational design priority for all Huichuang Lift residential elevators. The K500 integrates eight complementary safety systems to deliver reliable protection for daily household operation.

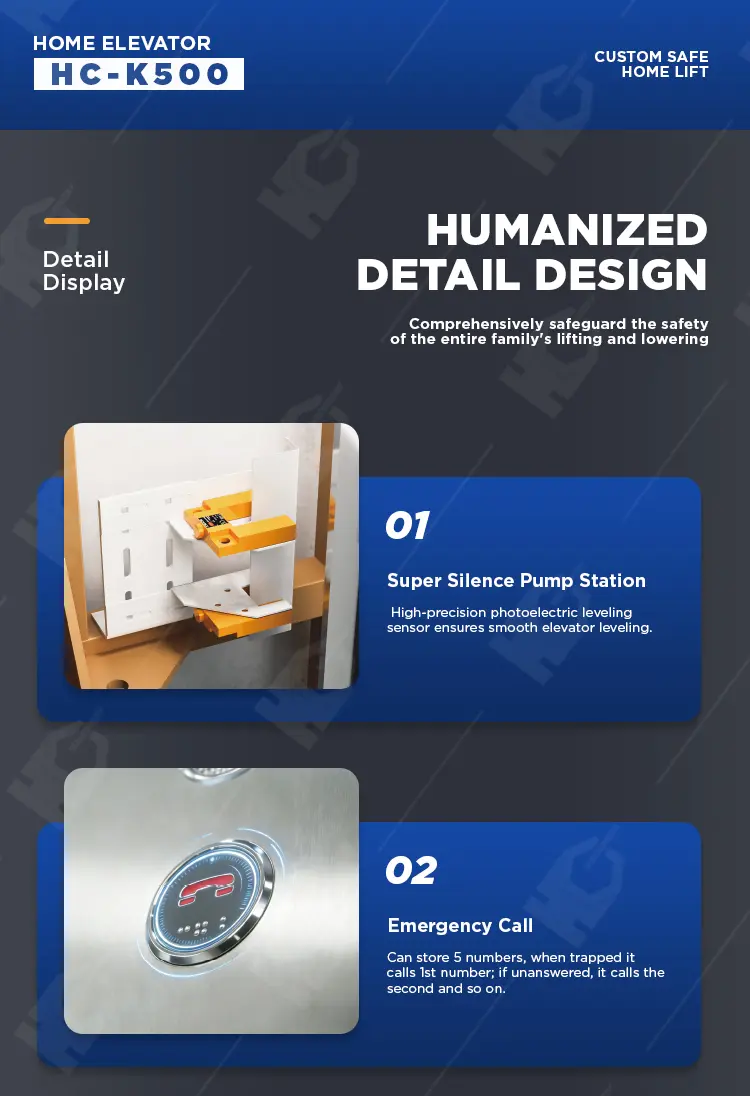

1. Emergency Call System The cabin is fitted with an emergency call function that can store up to 5 phone numbers. If a passenger becomes trapped, pressing the call button dials the first stored number automatically. If unanswered, it sequentially dials the remaining numbers until contact is made, ensuring help is always reachable.

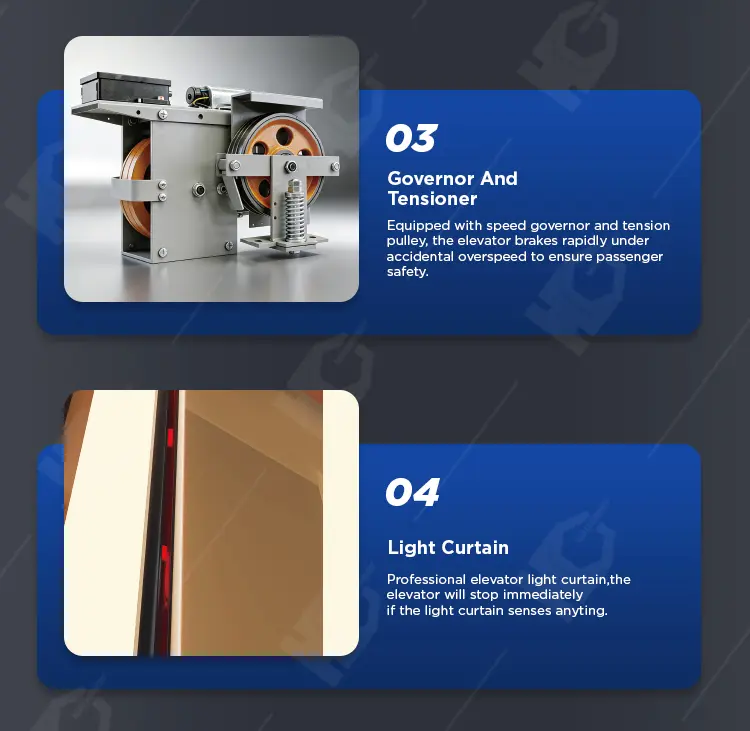

2. Governor and Tensioner The overspeed governor continuously monitors travel speed. In the event of accidental overspeed, it triggers the safety gear to activate. The matched tensioner maintains consistent rope tension at all times, ensuring steady, reliable governor performance over the elevator’s service life.

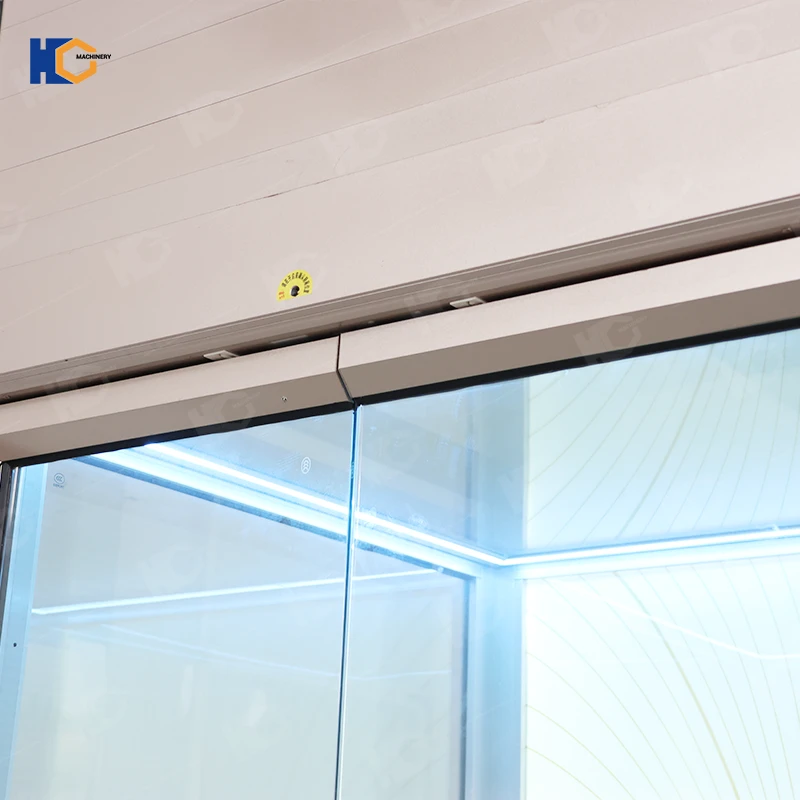

3. Infrared Light Curtain A professional infrared light curtain is installed at the door opening. During door closing, it continuously scans the full doorway area. If it detects any obstruction — such as hands, pets, luggage or small items — the doors immediately stop closing and reverse direction.
4. Self-Rescue Function For non-mechanical fault situations, the elevator includes a self-rescue feature. Passengers can press and hold the door close button for 3 seconds to trigger emergency leveling, allowing the cabin to move to the nearest floor and open the doors.
5. Photoelectric Leveling Sensor A high-precision photoelectric leveling sensor continuously monitors cabin position, ensuring accurate, gap-free floor leveling on every stop.

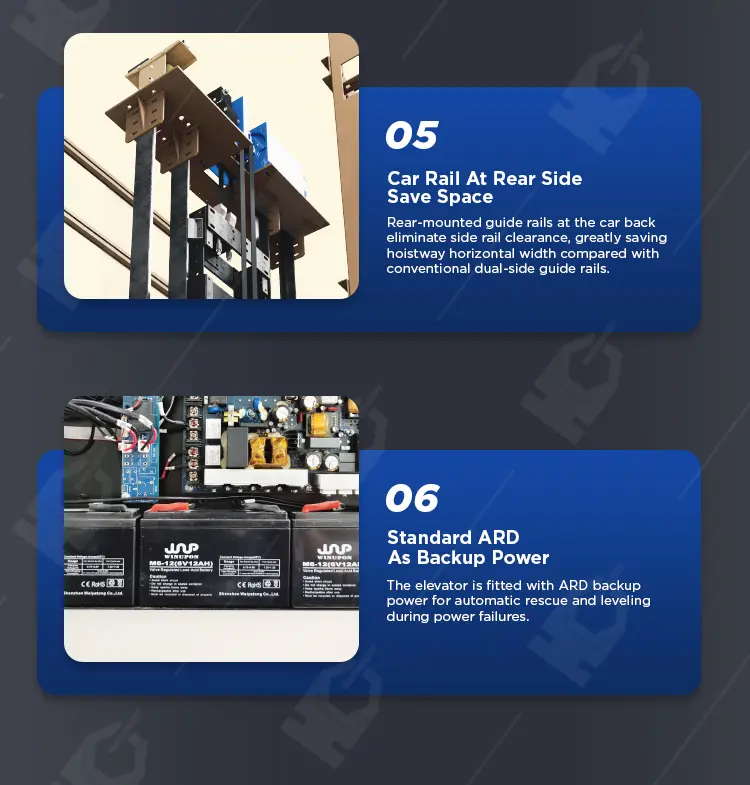

6. Built-In ARD Controller The Automatic Rescue Device is integrated into the control system. In the event of a mains power failure, the ARD system activates automatically and uses backup power to move the cabin to the nearest floor and open the doors, allowing passengers to exit safely.
7. Dual Progressive Safety Gears Two sets of progressive safety gears are installed as core overspeed protection. If overspeed is detected, the safety gears clamp firmly onto the guide rails to bring the cabin to a controlled, gentle stop, protecting passengers from harm.
8. Top Limit Switch A top limit switch is installed to prevent over-travel of the cabin. It ensures the elevator stops within its safe operating range, preventing the cabin from traveling beyond its designed upper limit.


Full Customization Options

To help the elevator integrate seamlessly with different home interior styles, the K500 offers extensive customization options covering shaft appearance, cabin finishes, ceilings, flooring and door types.

Shaft & Frame Customization

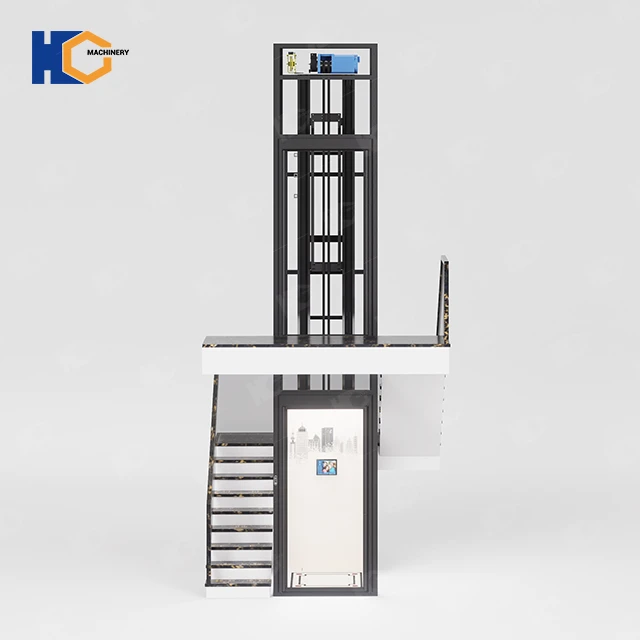

The glass shaft frame is available in two structural styles: steel tube model and bending model. Multiple shaft color options are available, including classic white, black, silver, champagne gold and wood-grain finishes, allowing the elevator exterior to match any home facade or interior design scheme. The glass panels also come in different color tints to suit different aesthetic preferences.

The shaft frame is constructed from aviation aluminum alloy for a lightweight yet rigid structure, with a hidden internal structure design that creates a clean, streamlined visual appearance. No separate shaft beam is required, allowing flexible positioning to suit different site layouts.

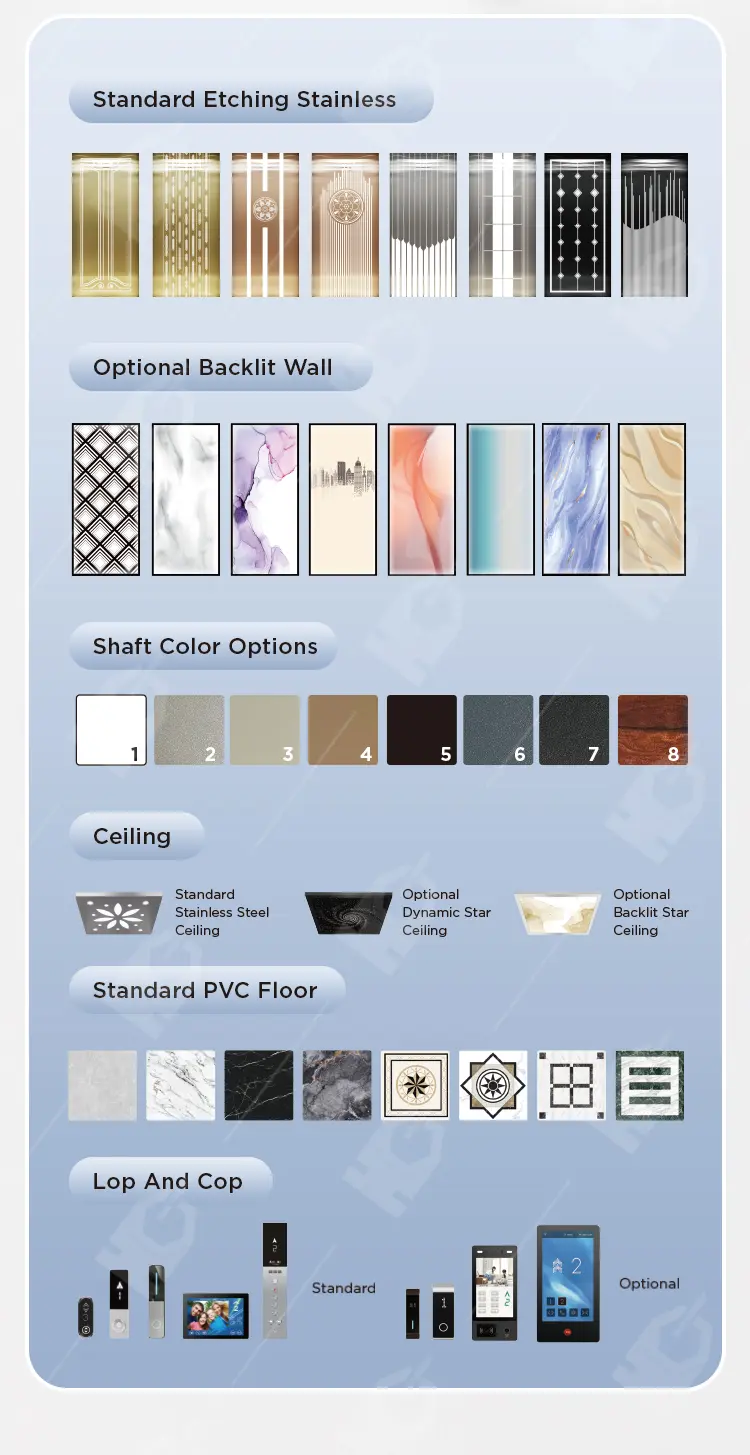

Cabin Interior Customization

• Wall panels: Standard etched stainless steel with a wide range of decorative pattern options; optional HD custom LED backlit panels for a premium ambient effect.
• Ceilings: Standard original stainless steel ceilings with multiple lighting layout options; optional acrylic decorative ceilings including starry sky style designs for a luxury cabin atmosphere.
• Flooring: Standard PVC flooring available in marble textures, geometric patterns and classic decorative motifs, allowing homeowners to match the elevator floor to their existing home flooring.

Door Type Options

Four door configurations are available to suit different space layouts and user preferences:

• Automatic double swing door
• Manual & automatic single swing door
• Handle type manual door
• Automatic folding door

All door options can be color-matched to the shaft frame for a unified, cohesive visual effect.

Suitable Application Scenarios

Thanks to its compact structure, zero-pit design and aesthetic flexibility, the K500 backpack traction home lift is suitable for a wide range of residential and light commercial scenarios across France.

It is an ideal solution for luxury detached villas, serving as both a daily vertical mobility facility and a premium interior design feature. For compact townhouses and duplex apartments in urban areas such as Paris, Lyon and Marseille, its small footprint makes it possible to add an elevator without occupying valuable living space.

For existing home renovation projects, the pitless and low-overhead design eliminates the need for major structural demolition, greatly reducing construction costs and project timelines. It can also be installed in the center of an existing stairwell, making use of otherwise wasted central space. Additionally, it works well for boutique guesthouses and small luxury properties as a high-end amenity that enhances guest experience.

Why Choose Huichuang Lift

Huichuang Lift is a professional manufacturer specializing in residential elevators and vertical lifting equipment, with extensive experience supplying global markets including France and other European countries.

All K500 elevators are manufactured on standardized production lines with strict quality control at every stage, from raw material inspection to final pre-shipment testing. Our products comply with international safety standards and carry CE certification, meeting the regulatory requirements for import and installation in France and across the EU.

We provide full-cycle customer support including pre-sales project consultation, custom configuration design, installation guidance and long-term after-sales technical support. For French distributors, contractors and project partners, we also offer flexible OEM/ODM services including custom branding and packaging.

FAQ – Backpack Traction Home Elevator

1. What is a backpack traction home elevator?

A backpack traction home elevator is a residential lift with a rear-mounted guide rail structure that reduces overall shaft space requirements. The Huichuang Lift K500 features a 0mm pitless design, 400kg load capacity and CE certification, suitable for private residential use.

2. What are the key specifications of the K500?

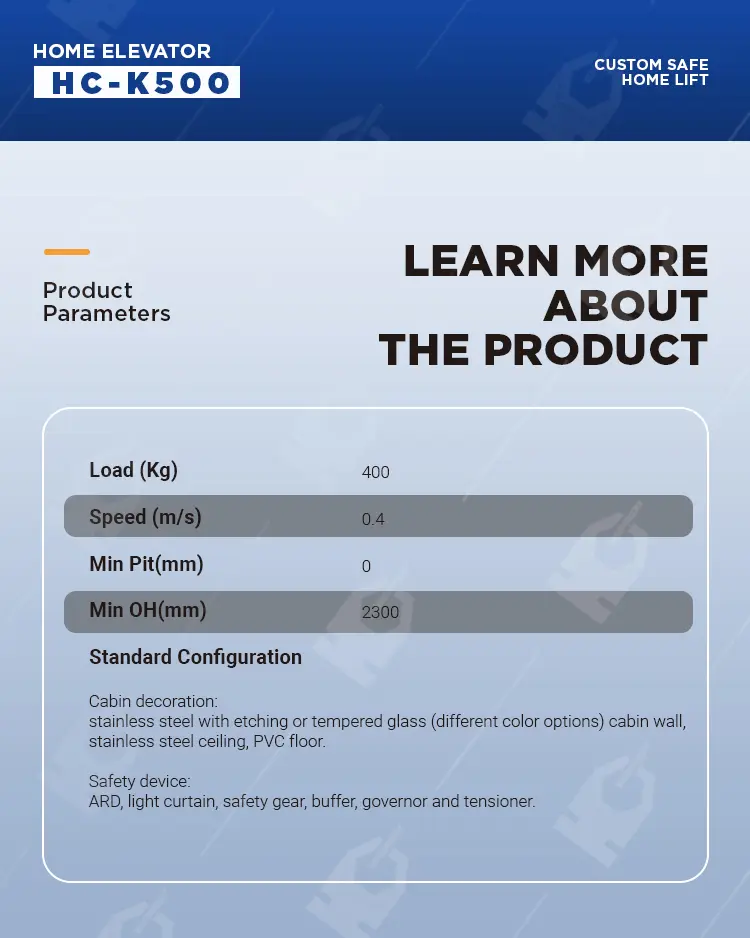

The standard K500 has a 400kg rated load, 0.4m/s travel speed, 0mm minimum pit depth and 2300mm minimum overhead height. It supports machine-room-less installation with a self-supporting shaft structure.

3. Can this elevator be installed in an existing house?

Yes. Its pitless design and self-supporting shaft structure eliminate the need for major structural demolition, making it highly suitable for retrofitting into existing villas, townhouses and duplex apartments.

4. What safety features are included as standard?

Standard safety features include ARD power failure rescue, infrared light curtain door protection, progressive safety gear, overspeed governor, emergency call system, photoelectric leveling sensor and top limit switch.

5. Can the design be customized?

Yes. Customization options include shaft frame color and style, cabin wall patterns, ceiling designs, flooring patterns and door types, allowing the elevator to match a wide range of interior decoration styles.

6. Does it require a machine room?

No. The K500 supports machine-room-less (MRL) installation, with no need for a separate machine room on the roof or top floor.

Conclusion

The Huichuang Lift K500 backpack traction home elevator delivers a practical, space-efficient vertical mobility solution for residential properties across France. Its innovative rear-mounted guide rail structure, zero-pit installation capability and reinforced durable design break through many of the traditional barriers to home elevator installation, making premium vertical accessibility achievable for a wider range of properties.

With comprehensive multi-layer safety protection, extensive customization options and CE-certified compliance with European standards, the K500 balances reliable daily performance, aesthetic integration and long-term value. Whether for a new luxury villa, an urban duplex renovation or a boutique residential project, it offers a high-quality, cost-effective residential lift solution backed by professional manufacturing and full-cycle customer support.

For French homeowners, developers and distribution partners seeking a reliable backpack traction home elevator supplier, Huichuang Lift provides tailored configuration solutions and full technical support to match your specific project requirements.
