HC-SL20 Hydraulic Scissor Car Parking Lift for Double Deck Vehicle Storage

Model: Small Glass Home Elevator
Brand: HUICHUANG(JNHC lift)
Customization: YES
Manual: YES
Price: $18,000–$35,000
Payment Methods: TT
Delivery time: 15 working days

+8615628811021

admin@jnhclift.com

Discover the HC-SL20 scissor car parking lift from HUICHUANG. This heavy-duty hydraulic double deck lift doubles parking capacity with an anti-slip platform, weatherproof construction and silent operation. Fully customizable for home garages, villas and commercial properties.

Introduction

As urban land grows increasingly scarce and household vehicle ownership continues to rise, parking shortages have become a universal challenge for homeowners and small commercial property managers. Expanding a garage or building new parking lots requires high construction costs, lengthy timelines and valuable floor space, making it impractical for most properties. For multi-car families and businesses looking to optimize space, vertical parking solutions offer a far more cost-effective and space-efficient alternative.

The HC-SL20 scissor car parking lift, part of HUICHUANG’s industrial lifting series, is purpose-built to efficiently solve parking difficulties through vertical vehicle stacking. Driven by a reliable hydraulic system and built with heavy-duty structural materials, it transforms a single standard parking spot into two functional levels, maximizing space utilization without expanding the ground footprint. It supports one-click electronic control lifting and full size customization, adapting seamlessly to both new construction and renovation projects. This guide covers its core advantages, engineering details, application scenarios and full value to help you find the right parking solution.

Product Overview

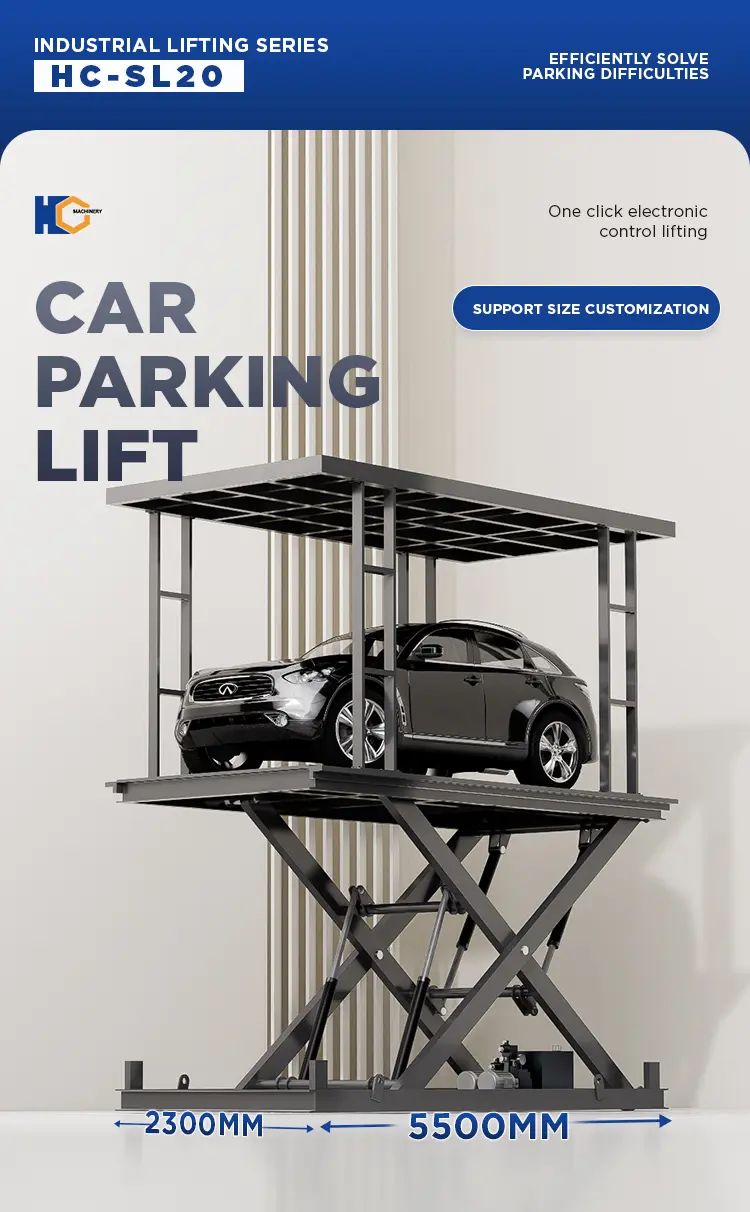

The HC-SL20 is a stationary scissor-type car parking lift designed for permanent installation in residential and light commercial settings. Its core function is to create double-deck vertical parking by lifting one vehicle to an upper level while leaving ground space available for a second vehicle. This design makes full use of unused overhead space in garages and driveways, effectively doubling parking capacity on the same ground area.

Unlike temporary lifts built for maintenance work, this model is engineered for long-term daily parking operation. It supports two primary installation methods: above-ground mounting for quick retrofit projects, and pit-recessed installation for a flush, seamless floor finish. With a standard platform measuring 2300mm in width and 5500mm in length, it accommodates most passenger sedans, SUVs and light commercial vehicles. All dimensions can be fully customized to fit specific site layouts and vehicle sizes, making it a flexible solution for diverse project requirements.

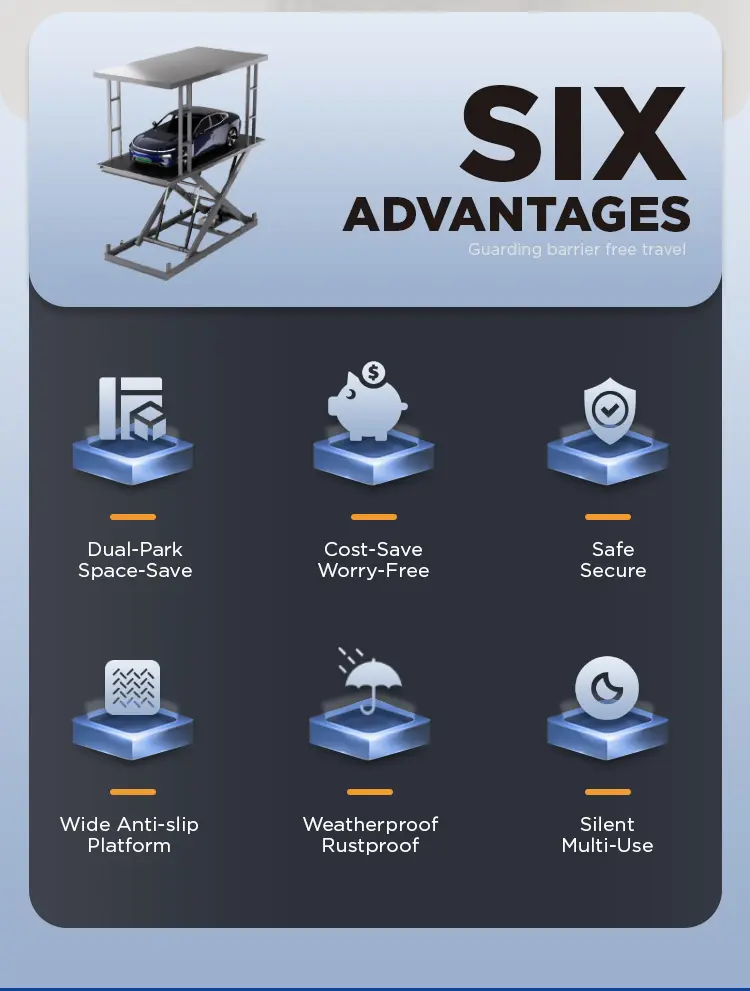

Six Core Advantages of the HC-SL20 Parking Lift

Engineered around real-world parking needs, the HC-SL20 delivers six key benefits that make it a standout choice for both residential and commercial parking upgrades.

1. Dual-Park Space-Saving Design

The most significant advantage is its ability to double parking capacity within a single parking footprint. By stacking vehicles vertically, it turns one standard spot into two usable spaces, eliminating the need for costly garage expansion or additional land purchase. This is especially valuable for urban villas, townhouses and small commercial properties where available space is limited and expensive. For households with two or more vehicles, it provides a practical way to add parking without major construction work.

2. Cost-Saving & Worry-Free Operation

Compared with building a new garage or expanding an existing parking area, installing a scissor parking lift requires only a fraction of the upfront investment and can be completed in a much shorter timeframe. There is no need for large-scale demolition, masonry or roof construction. The lift itself has a long service life with low routine maintenance requirements, delivering excellent long-term value and a fast return on investment. For property owners, it is a budget-friendly way to increase parking capacity and boost overall property value.

3. Safe & Secure Lifting Performance

Safety is a top priority for vehicle storage equipment. The HC-SL20 integrates multiple layers of mechanical and electrical protection to ensure reliable vehicle parking. It is equipped with position detection switches that monitor platform location in real time, and a mechanical locking system that automatically engages to hold the platform securely when raised. This prevents accidental descent even under abnormal conditions, giving users full confidence when leaving vehicles parked on the elevated platform for extended periods. An easily accessible emergency stop function is also included for immediate halting of operation when needed.

4. Wide Anti-Slip Platform

The lifting platform is constructed from anti-slip checkered steel plate, which increases friction between vehicle tires and the platform surface. This provides secure traction even when tires are wet from rain or snow, preventing slippage during vehicle entry and exit. The wide, spacious platform accommodates vehicles of various sizes and wheelbases, offering ample room for drivers to maneuver on and off comfortably. The solid steel plate construction also ensures even weight distribution across the entire platform.

5. Weatherproof & Rustproof Construction

All external metal components receive professional anti-corrosion and rust-resistant surface treatment, protecting the lift from moisture, dust and temperature fluctuations. This weatherproof build makes the lift suitable for both indoor garage and covered outdoor installation, allowing it to perform reliably across different climate conditions. The durable finish also maintains a clean, polished appearance over years of use, with minimal upkeep required.

6. Silent Operation & Multi-Use Versatility

Powered by an integrated hydraulic power unit, the lift operates with low noise and smooth motion, making it suitable for residential neighborhoods where loud mechanical noise would cause disturbance. Beyond vehicle parking, the platform can also serve as a general-purpose lifting solution for moving heavy items, tools or storage boxes between levels. For underground pit installations, the lower level can even double as secure storage space, adding extra functional value beyond parking.

Precision Engineering & Key Components

Behind its core advantages, the HC-SL20 is built with high-quality materials and precision-manufactured components to ensure long-term durability and reliable performance.

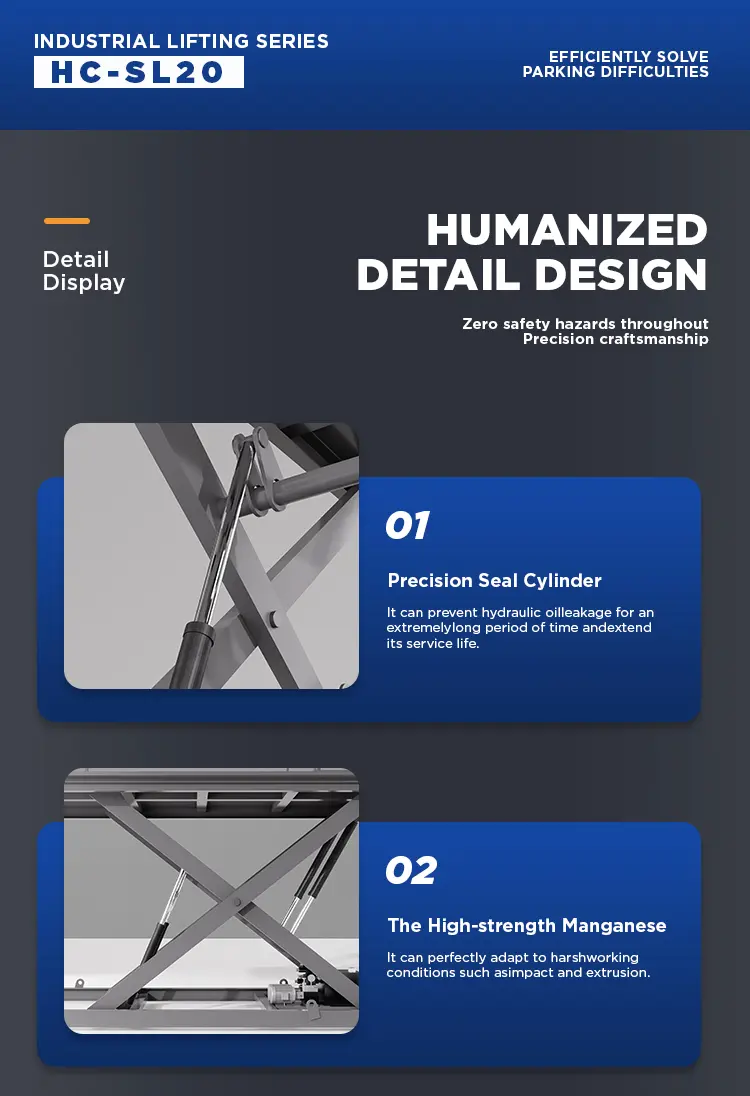

Precision Seal Hydraulic Cylinders

The lift’s hydraulic cylinders are fitted with high-precision sealing elements that prevent hydraulic oil leakage over an extremely long service life. This not only maintains consistent lifting performance but also reduces maintenance frequency and avoids oil contamination in clean garage environments. The reliable sealing system also contributes to smoother, more stable lifting motion and extends the overall service life of the hydraulic system.

High-Strength Manganese Steel Structure

The main scissor arm frame is fabricated from high-strength manganese steel, a material chosen for its exceptional toughness and load-bearing performance. It can perfectly adapt to harsh working conditions such as impact and extrusion, resisting bending and fatigue deformation even under long-term heavy load use. This heavy-duty construction gives the lift outstanding structural rigidity and ensures stable, safe operation over thousands of lifting cycles.

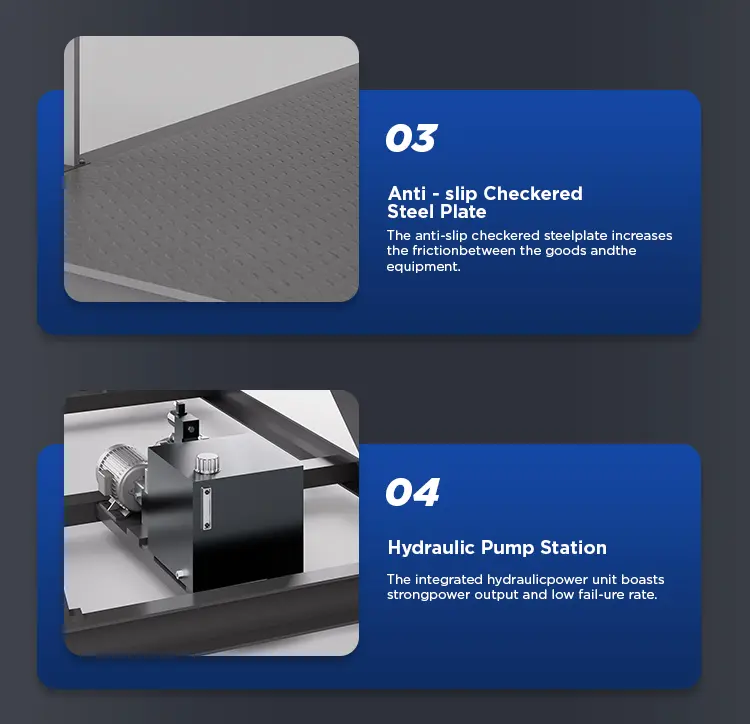

Anti-Slip Checkered Steel Plate Platform

The platform surface uses textured checkered steel plate, which creates increased friction between vehicle tires and the lift surface. This non-slip design improves safety during vehicle loading and unloading, especially in damp or wet conditions. The robust steel plate construction also provides a solid, level surface that supports even weight distribution across the entire platform, suitable for all types of passenger vehicles.

Integrated Hydraulic Pump Station

The lift is equipped with an integrated hydraulic power unit that boasts strong power output and a low failure rate. The compact, fully enclosed pump station design saves installation space and delivers consistent, reliable hydraulic pressure for smooth lifting. Its efficient design ensures steady performance even with frequent daily use, and requires minimal routine maintenance to keep operating at peak condition.

Technical Specifications

The table below outlines the standard configuration of the HC-SL20 car parking lift, with full customization available to match project requirements:

Parameter	Standard Specification	Customization Support
Model	HC-SL20 Industrial Lifting Series	OEM branding available
Platform Dimensions	2300mm (W) × 5500mm (L)	Fully custom length and width
Drive System	Hydraulic scissor drive	–
Control Method	One-click electronic button control	Wireless remote control upgrade
Platform Surface	Anti-slip checkered steel plate	Custom finishes and colors
Installation Type	Floor-mounted / pit-recessed	Customized for site conditions
Suitable Environment	Indoor / covered outdoor	Weather protection packages
Brand	HUICHUANG	Custom branding for distributors

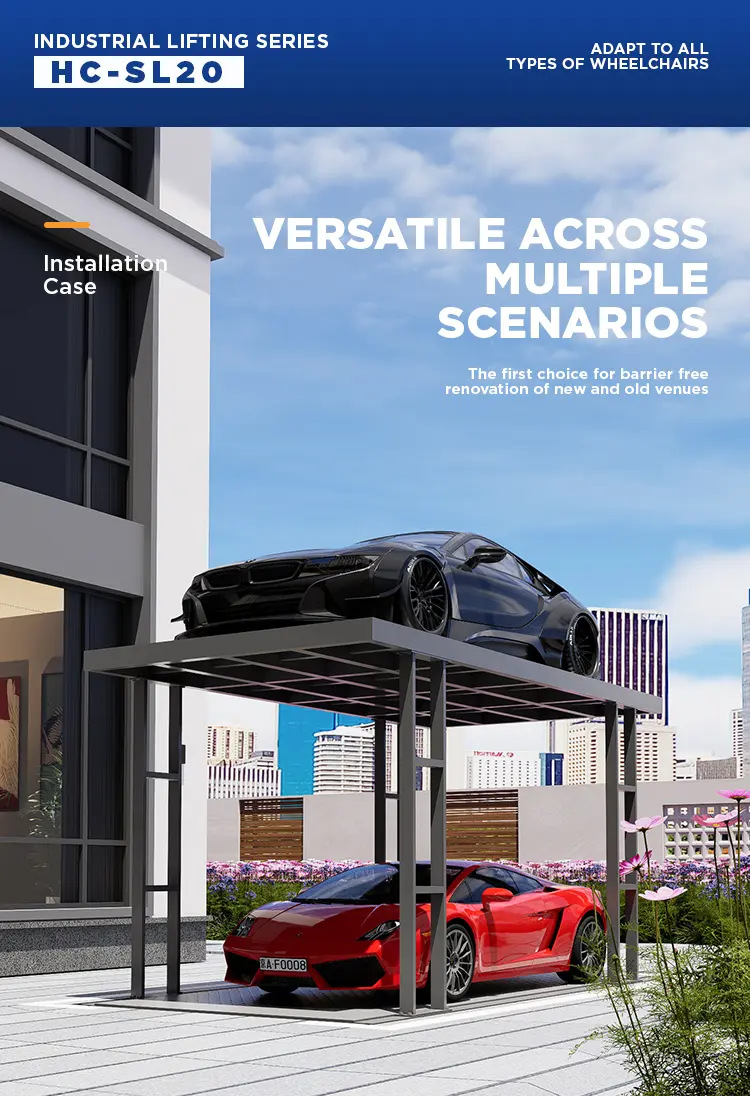

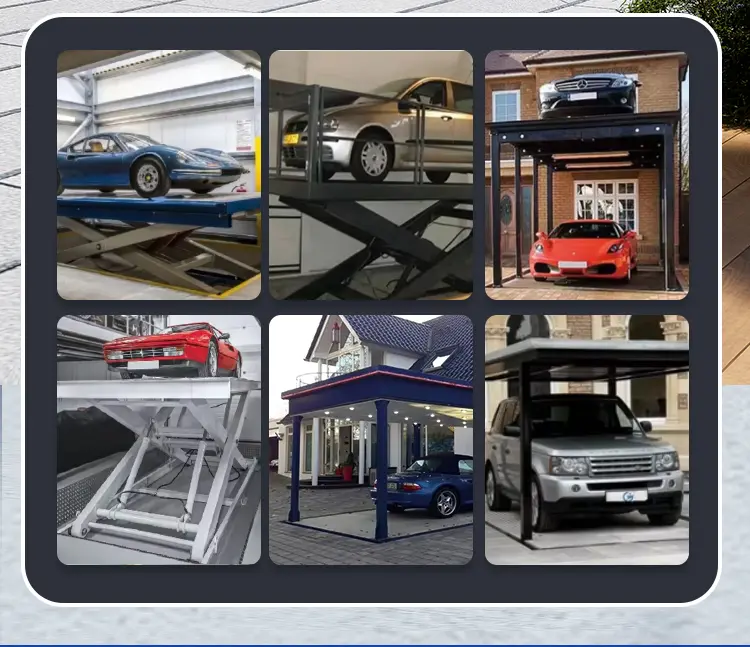

Versatile Installation Scenarios

Thanks to its flexible design and durable construction, the HC-SL20 adapts to a wide range of residential and commercial parking scenarios, making it the first choice for accessibility renovation of new and old venues.

Private Luxury Villas: When installed in a recessed pit, the lift creates hidden underground parking, keeping the ground surface clean and unobstructed while protecting vehicles from weather and theft. It also adds a premium feature that increases overall property value.
Residential Garages & Townhouses: Above-ground installation requires no excavation and can be completed quickly, ideal for existing homes looking to add a second parking space without major renovation.

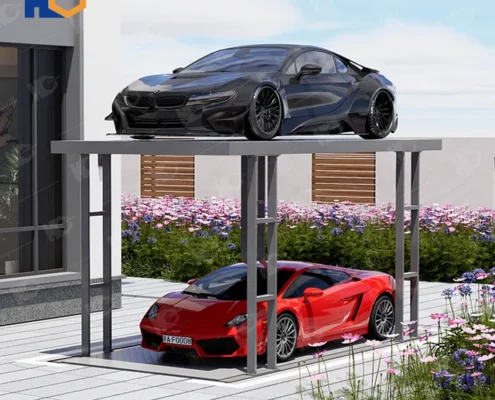

Outdoor Driveways & Courtyards: With its weatherproof, rust-resistant build, the lift can be installed in covered outdoor areas to expand driveway parking capacity for multi-vehicle households.
Auto Showrooms & Dealerships: The lift can elevate display vehicles for better visibility, or increase storage capacity in back-of-house vehicle storage areas.
Small Commercial Properties: Office buildings, retail shops and small hotels use the lift to add employee and customer parking without expanding their parking lots.

Why Choose HUICHUANG

As a professional lifting equipment manufacturer with years of industry experience, HUICHUANG delivers reliable quality, flexible customization and comprehensive support for every parking lift project.

All HC-SL20 lifts are manufactured under strict quality control, with each unit undergoing full inspection and functional testing before leaving the factory. We use high-quality raw materials and precision production processes to ensure consistent performance and long service life. Our products meet international safety standards, with full certification documentation provided to support global shipping and local installation.

We specialize in fully customized solutions, with the ability to adjust platform size, lifting height, finish color and control system to match exact project needs. For distributors and brand partners, we offer comprehensive OEM and ODM services including private labeling, custom packaging and dedicated account support.

Our support does not end at delivery. We provide detailed installation manuals, remote technical guidance and responsive after-sales service to ensure smooth installation and reliable long-term operation. We also supply genuine spare parts for fast delivery worldwide, minimizing downtime for our customers.

Simple Maintenance Guidance

With proper routine care, the HC-SL20 parking lift can provide many years of reliable service. Key maintenance steps include regularly checking hydraulic fluid levels and topping up with the recommended fluid, lubricating scissor arm pin joints periodically to reduce wear, and cleaning the checkered plate surface to remove dirt and gravel. It is also recommended to test safety locks and limit switches regularly, and inspect cylinder seals for signs of leakage. Following a simple maintenance schedule will maximize performance and extend service life. Always refer to the official operation manual for detailed guidelines.

Frequently Asked Questions

Q: Does this parking lift require a pit?

A: No, it does not. Above-ground installation is fully feasible and requires only a reinforced concrete floor. A pit is only needed if you prefer a flush floor finish for a seamless appearance.

Q: Can it be installed outdoors?

A: Yes. The weatherproof, rust-resistant construction makes it suitable for covered outdoor installation. Additional weather protection packages are available for more exposed locations.

Q: Can the size be customized for my garage?

A: Yes, we support full size customization. Our engineering team can design a platform size and lifting height to fit your specific garage dimensions and vehicle types.

Q: What happens if there is a power outage?

A: The lift is equipped with a manual lowering valve that allows the platform to be safely lowered to ground level during a power outage. Optional backup power systems are also available.

Conclusion

The HC-SL20 scissor car parking lift offers a practical, cost-effective solution to common parking space shortages. Combining heavy-duty manganese steel construction, reliable hydraulic drive and multi-layer safety protection, it delivers stable, long-lasting performance for both residential and commercial parking applications. With flexible installation options and full customization capabilities, it adapts to nearly any garage layout and property type.

As a direct factory manufacturer with years of export experience, HUICHUANG provides dependable quality, competitive pricing and full technical support for every project. Whether you are a homeowner looking to add a second parking space or a distributor seeking a reliable parking lift supplier, we can provide a tailored solution to match your needs.

If you are interested in the HC-SL20 scissor car parking lift, welcome to contact HUICHUANG for detailed specifications, custom proposals and a formal quotation.
