Key Product Features

1. 1:3 Roping Structure for Smooth & Efficient Travel

• Works in tandem with the hydraulic drive system to reduce direct load on the hydraulic cylinder, lowering wear on core components
• Delivers stepless speed regulation with gentle start and stop, eliminating abrupt jolts for a comfortable ride suitable for seniors and children
• The 0.3m/s rated speed balances travel efficiency and residential comfort, perfectly adapted to 2–3 floor vertical travel
• Extends maintenance intervals and reduces long-term component replacement costs

2. Zero-Pit & Low-Headroom Design for Local Homes

• Supports 0mm minimum pit installation, can be mounted directly on finished load-bearing floors without foundation excavation
• Only 2200mm of overhead height is required, fitting standard ceiling heights of Singaporean landed homes without roof structure modification
• Eliminates complicated civil works, making it highly friendly for existing home retrofitting projects
• No dedicated machine room is needed; the compact hydraulic power unit can be integrated into the shaft side or bottom area to save living space

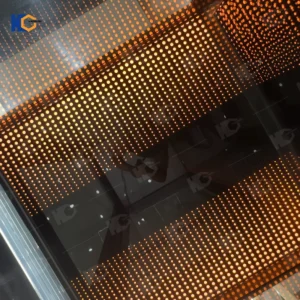

• Cabin walls are available in etched stainless steel, tempered glass and decorative veneer, with custom pattern etching supported

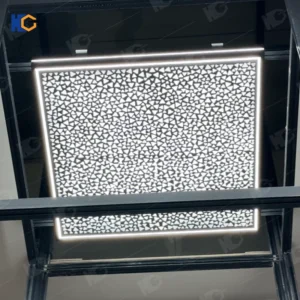

• Ceiling styles range from standard flat stainless steel to artistic patterned ceilings with embedded LED lighting
• Flooring can be upgraded from standard anti-slip PVC to marble-effect tile, wood grain flooring and carpet to match home interiors
• Handrail style, control panel layout and lighting color temperature are all adjustable for personalized needs

Full Safety Protection System

Safety is the core standard for residential lifts. The product is equipped with a multi-dimensional safety system tailored for family use scenarios:

• Infrared Light Curtain: Scans the door opening continuously during closing. It reverses door movement immediately upon detecting any obstacle, including hands, small items and pets, to prevent pinching injuries.
• Bottom Safety Sensor: Detects obstacles in the lower shaft area during downward travel and stops movement automatically to avoid collision risks, especially for zero-pit installations.
• Speed Governor & Safety Gear: Monitors travel speed in real time. If the safe speed limit is exceeded, it triggers the mechanical safety gear to clamp onto the guide rails and bring the car to a controlled stop.
• UPS Emergency Power Supply: Activates automatically during a mains power failure, smoothly moving the car to the nearest floor and opening the door for safe passenger exit without external rescue.
• Emergency Stop Button: A clearly marked button inside the cabin halts all elevator movement immediately in any abnormal situation.

Standard Configuration List

Cabin Decoration (Standard)

• Cabin wall: Etched stainless steel / tempered glass (multiple color options)
• Ceiling: Stainless steel ceiling with integrated LED lighting
• Flooring: Anti-slip PVC floor

Safety Devices (Standard)

• UPS backup power system
• Infrared light curtain door protection
• Speed governor, tensioner and mechanical safety gear
• Bottom obstacle safety sensor
• In-cabin emergency stop button

Installation & Long-Term Cost Value for Singapore Homes

For Singaporean homeowners, total cost covers not only equipment price, but also civil works, installation and long-term maintenance. This hydraulic home lift delivers outstanding overall cost performance in all these aspects:

1. Lower civil & installation cost

   The zero-pit and machine-room-less design eliminates excavation, waterproofing and equipment room construction costs. The modular structure also shortens on-site installation cycles, reducing labor costs and disruption to household life.

2. Lower long-term maintenance cost

   The hydraulic drive system has a simple structure with few wearing parts. The 1:3 roping design further reduces mechanical stress on core components. For typical family usage frequency, semi-annual routine maintenance is sufficient, keeping annual upkeep expenses at a low and stable level.

3. High adaptability to local properties

   It fits both new build landed homes and older property retrofits, and meets the vertical mobility needs of multi-generational families and aging-in-place renovations. As a premium home amenity, it also helps enhance the overall value and market competitiveness of the property.

Conclusion

For 2–3 storey landed properties in Singapore, a hydraulic home lift is not just a convenience upgrade, but a long-term investment in living quality and property value. Beyond competitive upfront pricing, its purpose-built residential design — including zero-pit installation, smooth and quiet operation, full safety protection and high degree of customization — makes it a practical and cost-effective vertical mobility solution.

Homeowners can select appropriate configurations according to their property layout, decoration style and usage needs, and work with professional suppliers to get accurate quotation and installation solutions.
