Hydraulic Warehouse Cargo Lift 0.5-12T

Warehouse hydraulic goods freight lift price.pdf

A hydraulic warehouse cargo lift (0.5–12 tons) is one of the most practical and widely used vertical material handling systems in modern logistics, manufacturing, and warehousing environments. It is designed to move heavy goods safely and efficiently between different floors using a hydraulic lifting system instead of manual labor or forklifts.

In simple terms, it is a heavy-duty industrial elevator for goods only, built to solve one core problem:
moving heavy cargo vertically with speed, safety, and low cost.

With load capacities ranging from 500 kg to 12,000 kg (0.5–12 tons), this type of cargo lift is now a standard solution in warehouses, factories, distribution centers, and multi-level storage buildings.

What Is a Hydraulic Warehouse Cargo Lift?

A hydraulic warehouse cargo lift is a vertical lifting platform powered by a hydraulic pump system. It uses hydraulic cylinders to raise and lower a platform that carries goods between floors.

Unlike passenger elevators, it is designed for:

• Heavy industrial loads
• Pallets and machinery
• Continuous warehouse operation
• Low-to-medium rise buildings

It does not require complex elevator shafts or machine rooms like traction elevators, making it more flexible and cost-effective.

In most warehouses, it acts as a vertical bridge between floors, replacing forklifts or manual carrying systems.

Key Advantages at a Glance

Before diving into technical details, here’s why businesses choose hydraulic cargo lifts:

• Strong load capacity (0.5T–12T)
• Low installation cost compared to freight elevators
• Simple structure and easy maintenance
• High safety performance
• Flexible customization
• Suitable for indoor and outdoor use
• Works even in harsh industrial environments

In short:
It’s the “workhorse” of warehouse vertical transport.

Hydraulic Warehouse Cargo Lift Specifications (0.5–12T)

Below is a typical specification range used in industrial projects:

1. Load Capacity

• Light duty: 0.5T – 1T
• Medium duty: 2T – 5T
• Heavy duty: 6T – 12T

A common warehouse configuration is 2T or 3T for pallet goods.

2. Lifting Height

• Standard range: 2m – 20m
• Custom models: up to 30m in some systems

Most warehouse installations operate within 2–12 meters (2–4 floors).

3. Platform Size

Typical sizes include:

• 1500 × 1500 mm
• 2000 × 2000 mm
• 2000 × 3000 mm
• Custom oversized platforms for pallets or machinery

4. Hydraulic Power System

• Motor power: 3 kW – 15 kW
• Hydraulic pressure system with oil pump station

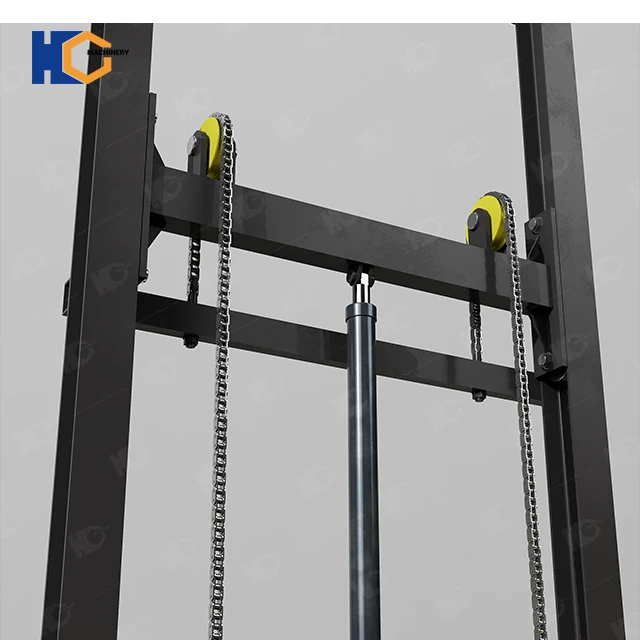

• Single or double cylinder configuration

5. Structure Type

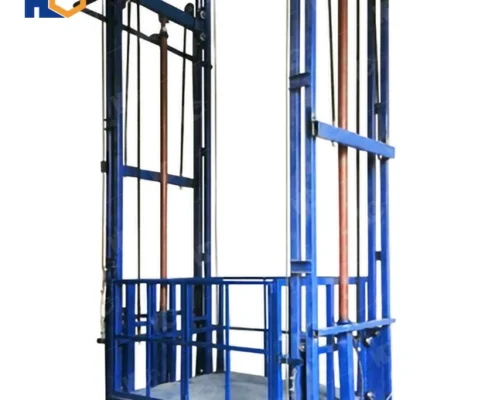

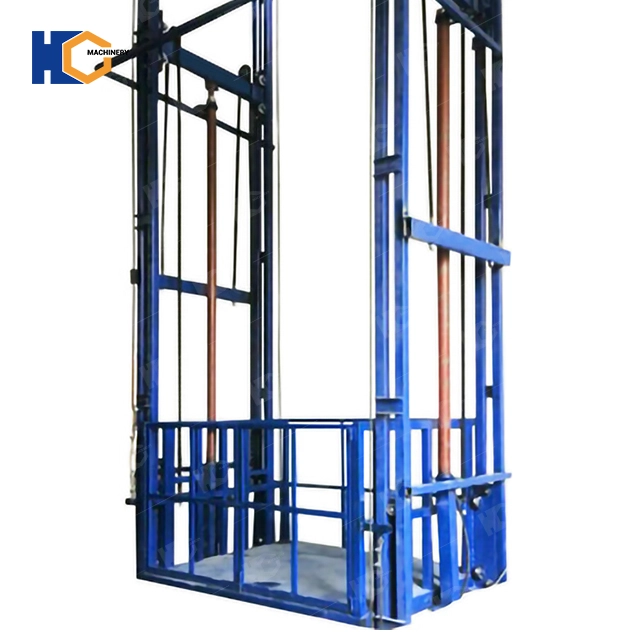

• Guide rail type cargo lift (most common)
• Scissor hydraulic lift platform
• 2-post or 4-post cargo lift system
• Fully caged freight elevator structure

6. Control System

• Button control (basic model)
• PLC intelligent control system (industrial model)
• Floor call system (multi-level warehouses)
• Optional remote control system

7. Safety Systems

• Emergency stop button
• Anti-fall locking device
• Overload protection
• Limit switches
• Door interlock system
• Manual lowering valve

These systems ensure safe operation even during power failure.

8. Material Structure

• High-strength steel frame
• Reinforced platform plate

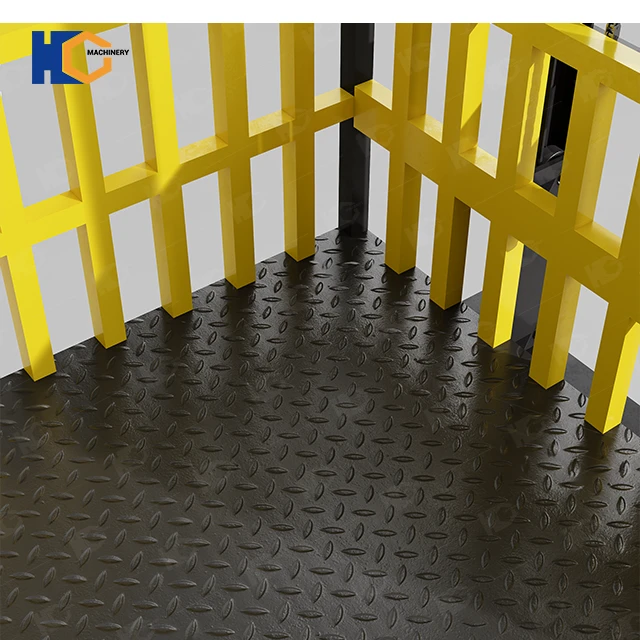

• Anti-slip surface design
• Optional stainless steel for food or clean environments

9. Installation Type

• Pit installation (flush with floor)
• No-pit surface installation
• Indoor or outdoor configuration

How Hydraulic Cargo Lifts Work (Simple Explanation)

The working principle is straightforward:

Step 1: Load Cargo

Goods are placed on the platform using:

• Forklifts
• Pallet jacks
• Manual loading

Step 2: Hydraulic Activation

A hydraulic pump pushes oil into cylinders.

This creates upward force.

Step 3: Platform Lifting

The platform rises along guide rails smoothly and stably.

Step 4: Stop at Target Floor

The system locks at the selected floor using safety stops.

Step 5: Unloading

Goods are removed safely.

Step 6: Lowering

Hydraulic valve releases pressure, lowering the platform.

This cycle repeats continuously in warehouse operations.

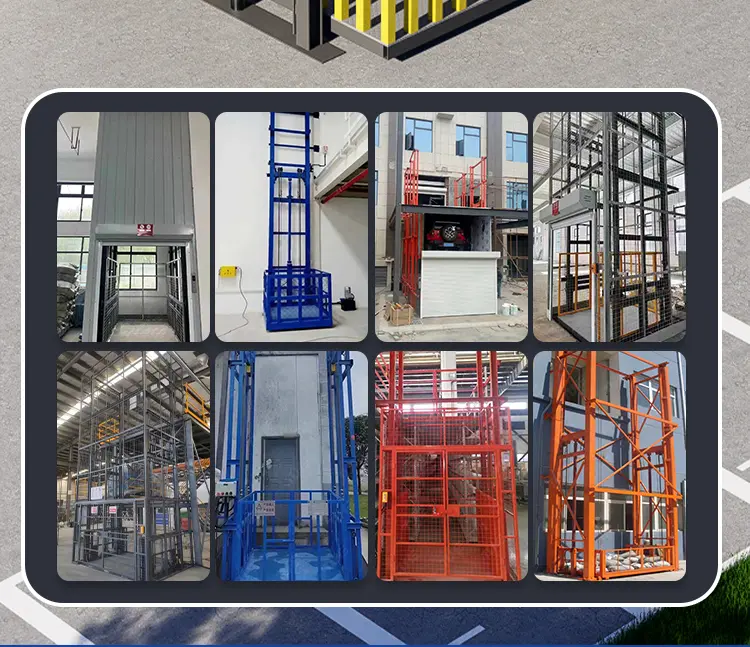

Application in Warehouses

Hydraulic warehouse cargo lifts are widely used in logistics systems because they solve vertical transportation bottlenecks.

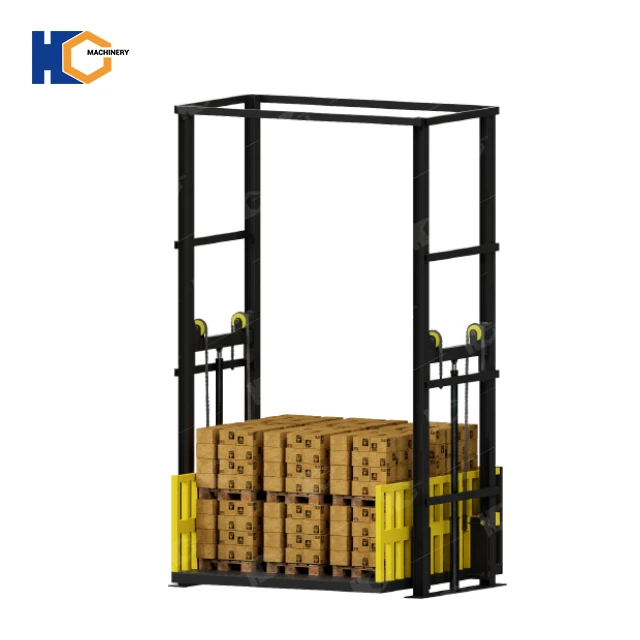

1. Multi-Floor Warehouses

Used to transfer:

• Pallets
• Boxes
• Bulk goods

They replace forklifts for vertical movement, reducing congestion.

2. Distribution Centers

Helps move goods between:

• Receiving area
• Storage floors
• Shipping zones

This improves workflow efficiency.

3. Manufacturing Plants

Used for:

• Raw material transport
• Semi-finished goods
• Machine parts

It ensures production lines stay uninterrupted.

4. E-commerce Warehouses

Fast order fulfillment requires quick vertical movement.

Cargo lifts reduce picking time and increase throughput.

5. Retail Storage Buildings

Used for:

• Stockroom replenishment
• Bulk inventory movement

6. Heavy Industry and Workshops

Supports:

• Machinery lifting
• Equipment transportation
• Tool handling

Why Warehouses Prefer Hydraulic Cargo Lifts

Compared with forklifts or manual handling:

1. Higher Efficiency

One lift replaces multiple forklift trips.

2. Lower Labor Cost

Reduces manpower requirements significantly.

3. Safer Operation

Less risk of falling cargo or forklift accidents.

4. Continuous Operation

Can run throughout the day without fatigue.

5. Flexible Installation

Works in buildings without elevator shafts.

Hydraulic Cargo Lift vs Freight Elevator

Many buyers compare hydraulic lifts with traction freight elevators.

Hydraulic Cargo Lift Advantages

• Lower cost
• Easier installation
• Strong load capacity
• Simple maintenance
• Flexible structure

Freight Elevator Advantages

• Faster speed
• Suitable for high-rise buildings
• More advanced control systems

Key Difference:

• Hydraulic lift = industrial, flexible, cost-effective
• Freight elevator = high-rise, high-speed system

Competitor Analysis

The market includes:

• Low-cost Chinese manufacturers
• Mid-range industrial suppliers
• European premium brands

1. Low-Cost Manufacturers

Pros:

• Cheap price
• Basic functionality

Cons:

• Weak steel structure
• Poor hydraulic stability
• Short lifespan

2. Mid-Range Industrial Manufacturers

Pros:

• Balanced cost and quality
• Standard safety systems
• Customizable design

Cons:

• Limited automation features

3. Premium European Brands

Pros:

• High engineering standards
• Advanced automation
• Strong brand reputation

Cons:

• Very expensive
• High maintenance cost
• Long delivery time

Where Hydraulic Lifts Win

Hydraulic warehouse lifts are most competitive in:

• Cost efficiency
• Heavy load capability
• Installation flexibility
• Maintenance simplicity

They offer the best price-performance balance for most warehouses.

Maintenance and Service Life

A well-maintained hydraulic cargo lift typically lasts:

10–15 years or more

Regular maintenance includes:

• Hydraulic oil replacement
• Cylinder sealing checks
• Guide rail lubrication
• Electrical system inspection
• Safety device testing

Maintenance frequency:

• Monthly inspection
• Quarterly servicing
• Annual full system check

Good maintenance can reduce breakdown risk by more than 40%.

Common Problems and Solutions

1. Oil Leakage

Cause: worn seals
Solution: replace hydraulic seals

2. Slow Lifting

Cause: low hydraulic pressure
Solution: check pump system

3. Platform Vibration

Cause: guide rail misalignment
Solution: adjust rail structure

4. Electrical Faults

Cause: wiring or control issues
Solution: PLC diagnostics

Buying Guide: How to Choose the Right Cargo Lift

Before purchasing, consider:

1. Load Requirement

Always include future growth.

2. Floor Height

Determine total travel distance.

3. Platform Size

Match pallet or equipment size.

4. Usage Frequency

High usage requires stronger hydraulic systems.

5. Installation Space

Check pit depth and overhead clearance.

Cost Overview

Typical price range:

• 0.5T–1T: $3,500 – $8,000
• 2T–5T: $8,000 – $25,000
• 6T–12T: $25,000 – $60,000+

Price depends on:

• Capacity
• Size
• Safety configuration
• Automation level

Future Trends

Hydraulic cargo lift technology is evolving toward:

• Smart PLC automation
• Remote monitoring systems
• Energy-saving hydraulic pumps
• Stronger lightweight steel materials
• IoT-based maintenance alerts

Warehouses are increasingly adopting smart logistics systems, and cargo lifts are becoming integrated into digital warehouse management systems.

Conclusion

The hydraulic warehouse cargo lift (0.5–12T) is one of the most efficient and cost-effective vertical material handling solutions for modern warehouses and industrial facilities.

It stands out because of:

• Strong load capacity
• Flexible installation
• Simple structure
• Low maintenance cost
• High safety performance

Compared with traditional freight elevators and manual handling systems, hydraulic cargo lifts offer the best balance of:

performance, cost, and operational flexibility.

For businesses looking to improve warehouse efficiency without heavy infrastructure investment, a hydraulic cargo lift is not just equipment—it is a long-term productivity upgrade.
