Mobile Scissor Lift Table with Large Platform

Model: Scissor Lift Table Trolley
Brand: HUICHUANG(JNHC lift)
Customization: YES
Delivery time: 15 working days

+8615628811021

admin@jnhclift.com

Mobile Scissor Lift Table, Mobile Scissor Lift,Scissor Lift, Mobile Scissor Lift Table with Large Platform,This type of aerial work platform is widely used and very safe. The large platform is not crowded, and the space for activities is larger and more convenient.

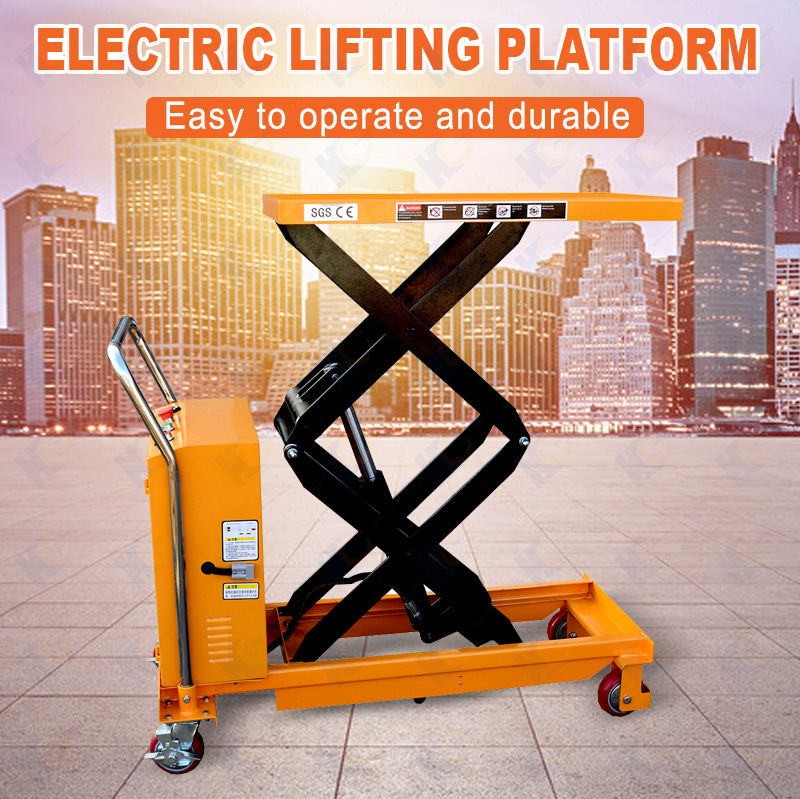

As an upgraded electric-powered mobile scissor lift table, this model is specially designed for industrial and commercial scenarios requiring frequent height adjustment and material handling. Unlike manual lift tables that rely on physical pumping, this electric lifting platform is equipped with an integrated hydraulic power unit and control system, enabling effortless one-button lifting and lowering. The design with a side-mounted control box and ergonomic handle perfectly matches on-site operation habits, making it a high-efficiency, low-labor tool for warehouses, workshops, and assembly lines.

A mobile scissor lift table with a large platform is an essential tool for lifting, positioning, and transporting heavy loads in industrial, commercial, and warehouse settings. Designed for versatility and efficiency, this lift table provides a robust solution for handling materials in a safe and ergonomic manner.

What is a Mobile Scissor Lift Table with a Large Platform?

A mobile scissor lift table is a hydraulic platform designed to lift and lower heavy loads. It features a wide, spacious platform that allows users to handle bulky items or multiple objects at once. The lift is mounted on wheels, making it mobile and convenient for various applications, such as assembly lines, warehouses, and workshops.

Specifically, this electric-powered model upgrades the traditional manual operation with a built-in motor-driven hydraulic pump, housed in a compact control box on the side of the cart. The ergonomic push handle and control panel with emergency stop buttons make it easy to maneuver and operate, even for users with limited physical strength. The bright orange body with a black scissor mechanism ensures high visibility in busy workspaces, while the heavy-duty casters enable smooth movement across concrete, epoxy, and warehouse floors.

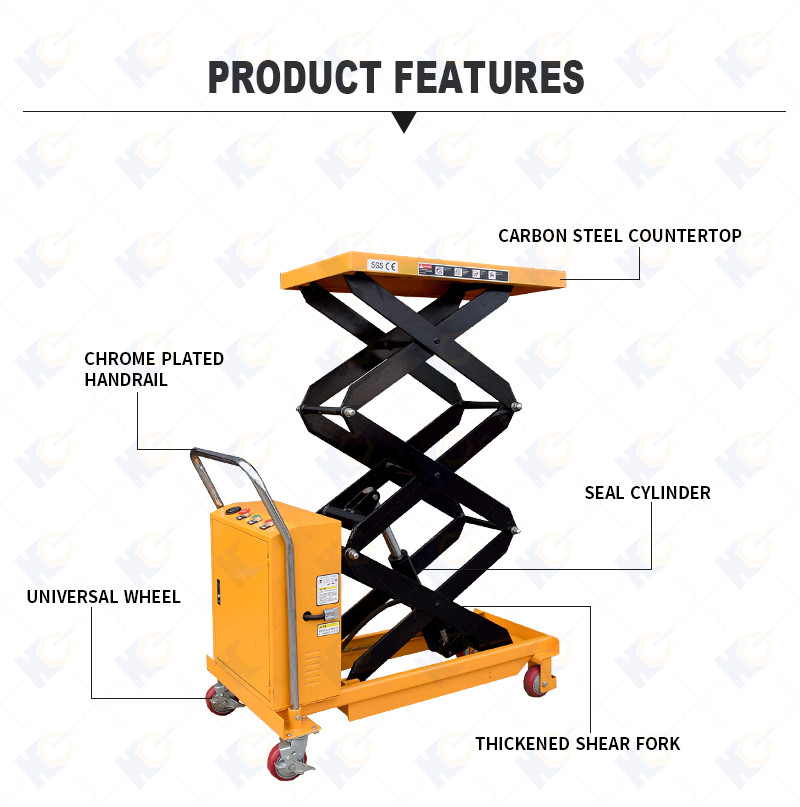

Features and Benefits

Large Platform: The table comes with a spacious platform that measures 1,500mm x 800mm (59 inches x 31.5 inches), making it ideal for large or irregularly shaped items.Advantage: Provides ample space for bulky items or multiple smaller items, reducing the need for multiple trips.
The oversized flat platform is reinforced with anti-slip patterns (optional) to prevent load shifting during lifting, even for loose or packaged goods. The smooth, raised edges on the platform prevent items from sliding off, adding an extra layer of safety during operation.
High Load Capacity: With a maximum lifting capacity of 1,000 kg (2,200 lbs), this lift table can handle heavy loads with ease.Advantage: Suitable for demanding tasks in industrial and warehouse settings.
The heavy-duty scissor arms are made of thickened manganese steel, passing strict load tests to ensure no deformation under rated capacity. The electric hydraulic system is calibrated to maintain stable pressure, preventing sudden drops even with unevenly distributed loads, making it reliable for heavy-duty parts handling in manufacturing workshops.
Adjustable Height: The lift table can be adjusted from a minimum height of 400mm (15.7 inches) to a maximum height of 1,500mm (59 inches).Advantage: Offers flexibility for tasks at different heights, improving ergonomics and reducing worker strain.
The electric control panel allows for precise height adjustment with a simple button press, eliminating the need for manual pumping. The system features slow start/stop functions to prevent load jolting, and the height can be locked at any position via the safety valve, ensuring stability during assembly, inspection, or packaging work.
Easy Mobility Equipped with four heavy-duty caster wheels, including two with brakes, the table is easy to maneuver and secure in place.Advantage: Enables smooth movement across workspaces and enhances operational efficiency.
The front two swivel casters and rear fixed casters make the cart easy to turn in narrow aisles, while the foot brakes lock the wheels firmly during lifting to prevent accidental movement. The ergonomic front push handle allows one-person operation, even when the cart is fully loaded, reducing the need for additional staff.
Hydraulic SystemPowered by a manual hydraulic pump or optional electric motor, the scissor lift ensures smooth and reliable lifting.Advantage: Provides precision control while reducing physical effort

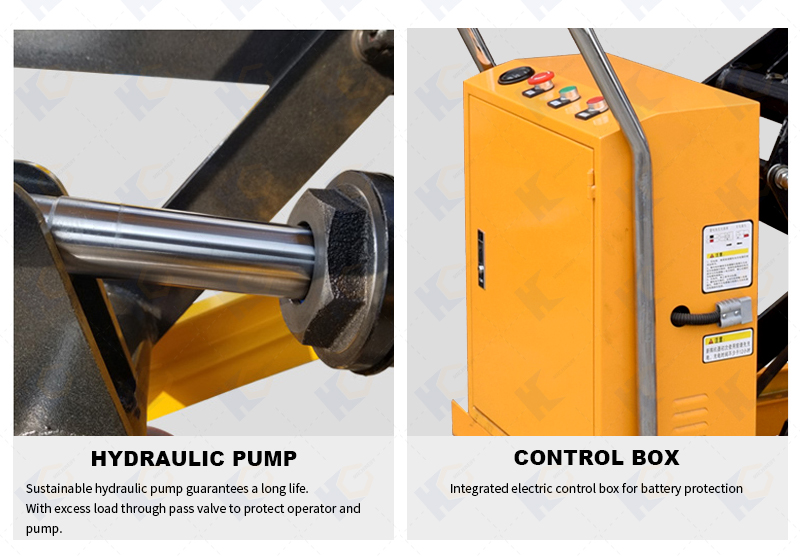

This electric model features a maintenance-free motor-driven hydraulic pump housed in the side control box, eliminating the need for manual pumping. The system operates quietly and efficiently. The built-in oil filter and pressure relief valve prevent leaks and overload damage, extending the service life of the hydraulic components.
Durable Construction: Made from high-grade steel, the lift table is designed to withstand heavy usage and maintain stability over time.Advantage: Long-lasting and dependable, even in harsh working environments.
The entire frame is treated with anti-rust paint, making it resistant to scratches and corrosion in dusty warehouses or humid workshops. The scissor mechanism is fitted with wear-resistant bushings to reduce friction, ensuring smooth operation even after thousands of lifting cycles.
Safety Features: Includes built-in safety measures such as:Overload protection to prevent damage when exceeding weight limits.
Safety locking mechanism to secure the platform when in use.

Technical Specifications

Feature	Specification
Platform Size	1,500mm x 800mm (59″ x 31.5″)
Load Capacity	1,000 kg (2,200 lbs)
Height Range	400mm – 1,500mm (15.7″ – 59″)
Hydraulic System	Manual pump or electric motor
Caster Wheels	4 (2 with brakes)
Material	High-grade steel
Weight	120 kg (264 lbs)
Lifting Time	10-20 seconds (manual or electric)

Applications

A mobile scissor lift table with a large platform is ideal for:

Warehousing: Moving heavy pallets or boxes.
Assembly Lines: Positioning parts at optimal heights.
Workshops: Supporting heavy machinery or tools during repairs.
Retail: Stocking shelves with heavy or bulky items.
Logistics: Loading and unloading delivery vehicles.、

This electric lift table is especially popular in manufacturing plants for positioning large components on assembly lines, as the electric operation reduces worker fatigue during repeated lifting tasks. It is also widely used in automotive repair shops to raise heavy vehicle parts to ergonomic working heights, and in logistics centers to load and unload goods from delivery trucks without manual lifting.

How to Use a Mobile Scissor Lift Table

Proper operation ensures safety and equipment longevity.

Step 1: Pre-Operation Inspection

Check:

Hydraulic hoses
Wheels
Controls
Safety systems

Step 2: Position the Lift

Move the lift table to the desired location.

Ensure:

Stable ground
Adequate clearance
Safe operating area

Step 3: Engage Safety Devices

Lock wheels and deploy stabilizers if equipped.

Step 4: Load the Platform

Distribute weight evenly across the platform.

Avoid exceeding rated capacity.

Step 5: Raise the Platform

Use platform or ground controls to lift smoothly.

Step 6: Perform Work

Carry out maintenance, assembly, or material handling tasks safely.

Step 7: Lower the Platform

Return the platform to its lowest position after use.

Step 8: Storage

Store in a clean, dry environment when not in use.

Safety Features

Modern lift tables include numerous safety systems.

Emergency Stop Button

Allows immediate shutdown during emergencies.

Overload Protection

Prevents lifting beyond rated capacity.

Hydraulic Hose Burst Valve

Prevents sudden platform descent.

Anti-Slip Platform Surface

Improves worker safety.

Safety Guardrails

Protect personnel at height.

Emergency Lowering System

Allows controlled descent during power failures.

Customization Process

Every project has unique requirements. Professional manufacturers offer complete customization services.

Step 1: Requirement Consultation

Engineers assess:

Platform dimensions
Capacity requirements
Lift height
Operating environment

Step 2: Design Engineering

Custom drawings and technical specifications are prepared.

Step 3: Material Selection

Manufacturers choose appropriate steel grades and hydraulic components.

Step 4: Fabrication

The structure is manufactured using precision cutting and welding technologies.

Step 5: Assembly

Hydraulic, electrical, and mechanical systems are integrated.

Step 6: Testing

Each unit undergoes:

Load testing
Stability testing
Safety inspections

Step 7: Delivery

The completed lift table is packaged and shipped.

Customization Options

Platform Size

Available in:

Standard sizes
Extra-large platforms
Fully customized dimensions

Load Capacity

Options include:

500kg
1000kg
2000kg
5000kg
10 Tons+

Lift Height

Available heights:

1m
2m
4m
6m
8m
10m+
Custom heights

Power Systems

Customers can choose:

AC power
Battery power
Diesel power
Hybrid systems

Surface Finish

Available finishes include:

Powder coating
Galvanized coating
Marine-grade anti-corrosion treatment

OEM Branding

Manufacturers can provide:

Custom logos
Company colors
Dealer branding

Mobile Scissor Lift Table vs Fixed Lift Table

Feature	Mobile Lift Table	Fixed Lift Table
Mobility	Excellent	None
Flexibility	High	Limited
Installation	Simple	Permanent
Cost Efficiency	High	Moderate
Multi-Location Use	Excellent	Poor

Mobile models offer greater versatility.

Mobile Scissor Lift Table vs Forklift

Feature	Lift Table	Forklift
Vertical Precision	Excellent	Moderate
Elevated Work Platform	Yes	No
Personnel Access	Yes	No
Material Handling	Excellent	Excellent
Safety for Maintenance Work	Superior	Limited

The two products often complement each other rather than compete directly.

Mobile Scissor Lift Table vs Self-Propelled Scissor Lift

Feature	Lift Table	Self-Propelled Lift
Cost	Lower
Material Handling	Excellent
Personnel Lifting	Excellent
Mobility While Elevated	Limited
Maintenance Cost	Lower

Large platform lift tables are often preferred for material handling applications.

After-Sales Service

Reliable after-sales support is essential for long-term performance.

Technical Support

Manufacturers provide:

Installation guidance
Operation training
Troubleshooting assistance

Spare Parts Supply

Common spare parts include:

Hydraulic cylinders
Pumps
Motors
Control systems

Warranty Coverage

Most manufacturers offer warranties ranging from 12 to 24 months.

Maintenance Support

Periodic inspection services help maximize equipment lifespan.

Remote Assistance

Online technical support reduces downtime and maintenance costs.

Advantages Over Standard Lift Tables

Larger Platform: Accommodates bigger items or multiple objects, increasing efficiency.

Enhanced Mobility: Wheels make it easy to move and position the lift where needed.

Ergonomic Design: Adjustable height minimizes strain on workers, reducing workplace injuries.

Electric Operation: Eliminates manual pumping effort, making it ideal for high-frequency use.

Why Choose This Lift Table?

High Capacity: Handles up to 1,000 kg, suitable for heavy-duty tasks.

Flexible and Versatile: Adjustable height and mobility make it suitable for a range of industries.

Safety First: Built-in features ensure secure, stable operation.

Durable Build: High-quality steel construction ensures long-term reliability.

Low Maintenance: The electric hydraulic system requires minimal upkeep, with only periodic oil checks and wheel lubrication needed.

Conclusion

The mobile scissor lift table with a large platform is a game-changer for businesses needing to handle heavy or oversized loads efficiently. Its robust construction, high load capacity, and user-friendly design make it an indispensable tool for warehouses, workshops, and industrial facilities.

By investing in this versatile lift table, you’ll not only enhance productivity but also improve workplace safety and ergonomics. Whether you’re looking to streamline operations or reduce physical strain, this lift table is the perfect solution.

As an industrial tool, this electric mobile scissor lift table offers a low-cost, high-efficiency solution for businesses seeking to optimize material-handling workflows. It reduces labor costs by eliminating manual pumping, lowers the risk of workplace injuries, and improves overall operational efficiency. With optional customizations like different platform sizes, load capacities, and power configurations, it can be tailored to meet the specific needs of manufacturing, logistics, or retail businesses worldwide.
