Stationary Hydraulic Scissor Lift Platform for Warehouses and Workshops

Model: Fixed Scissor Lift
Brand: HUICHUANG(JNHC lift)
Customization: YES
Manual: YES
Payment Methods: TT
Delivery time: 15 working days

+8615628811021

admin@jnhclift.com

HUICHUANG’s stationary hydraulic scissor lift platform delivers stable vertical material handling for warehouses, workshops and loading docks. With 1–100t customizable load capacity, manganese steel structure and multi-safety protection, it supports pit or above-ground installation. Factory direct supply, full customization and CE certified for global projects.

Introduction

Across manufacturing, warehousing and logistics operations, efficient vertical material transfer at fixed work points directly impacts overall operational efficiency. Traditional freight elevators require dedicated shafts, extensive civil works and high upfront investment, making them uneconomical for small or mid-sized facilities. Mobile lifting platforms, by contrast, cannot support long-hour, high-frequency continuous operation and often fall short on load capacity and stability. For fixed-point lifting tasks that demand reliability, heavy load capacity and low long-term cost, stationary scissor lift platforms have become the most widely adopted solution.

Manufactured by HUICHUANG (JNHC Lift), the heavy-duty fixed scissor lift is a hydraulically driven vertical lifting device built for permanent installation. Its scissor-arm mechanical structure delivers exceptional structural rigidity and evenly distributed lifting force, allowing it to handle loads from light cartons to heavy industrial machinery with smooth, jolt-free movement. It can be installed directly on the ground or recessed into a concrete pit for flush-floor use, and is fully customizable in load capacity, platform dimensions and lifting stroke to match specific site requirements.

Product Overview

A fixed scissor lift uses interconnected scissor arms to convert horizontal hydraulic force into vertical platform movement. When hydraulic cylinders extend, the scissor arms unfold and raise the platform; when cylinders retract, the arms fold and lower the platform smoothly. This mechanical principle gives the lift inherent load stability and a very low closed height when fully lowered.

Unlike mobile scissor lifts designed for occasional relocation, this stationary model is engineered for permanent installation at a single location, supporting high-frequency daily operation over many years. It is most commonly used for floor-to-floor cargo transport, production line height adjustment, loading dock elevation and heavy equipment assembly. When installed in a pit, the platform sits completely level with the floor when lowered, leaving no obstacle to pedestrian and forklift traffic. This space-efficient design eliminates the need for a separate elevator shaft or machine room, greatly reducing civil construction costs and installation footprint.

Core Design Strengths

Heavy-Duty Structure for Extended Service Life

The entire load-bearing frame is constructed from high-strength manganese steel, chosen for its excellent toughness and fatigue resistance. It withstands repeated heavy loads, impact and extrusion without bending or permanent deformation. The scissor arm joints use precision-machined pin shafts with self-lubricating bushings, reducing wear and extending maintenance intervals. Every frame undergoes stress relief treatment after welding to eliminate internal stress, ensuring long-term structural accuracy even after thousands of lifting cycles.

Flexible Installation for Diverse Site Conditions

The lift supports two primary installation methods to fit different site conditions. Above-ground installation requires only a flat, reinforced concrete floor, with no excavation needed — ideal for existing workshops and warehouses where civil modification is difficult. Pit-recessed installation places the lift inside a concrete pit for a flush floor finish, preferred for high-traffic areas and loading bays. The compact hydraulic power unit can be mounted beside the base or integrated inside the frame, with no separate machine room required.

Multi-Layer Redundant Safety Protection

Safety is built into every stage of the lifting cycle. The lift is fitted with upper and lower limit detection switches that automatically stop the platform at preset heights to prevent over-travel. A mechanical safety hook interlock engages automatically at working height, holding the load securely even in the event of hydraulic pressure loss. Additional protection includes overload relief valves, an easily accessible emergency stop button and a manual lowering valve for safe descent during power outages.

Fully Customizable for Specialized Requirements

Platform size, lifting stroke, load capacity and power supply can all be adjusted to exact project specifications. A wide range of optional accessories are also available, including safety guardrails, roller table tops, turntables and explosion-proof electrical systems. This level of customization allows the lift to be adapted to food processing, chemical, automotive, logistics and many other industry-specific requirements.

Core Components & Build Quality

The hydraulic power unit is an integrated, fully enclosed assembly with strong power output and low failure rates. It uses a high-quality pump core and precision valve groups to deliver smooth, adjustable lifting speed of approximately 4–6 meters per minute. The system includes overflow and pressure-compensation valves to maintain stable lifting even under variable load conditions.

The hydraulic cylinders are fitted with imported high-performance sealing elements that prevent oil leakage over an extremely long service life. The piston rods are hard chrome plated to resist wear and corrosion, ensuring consistent, smooth operation. Depending on load and platform size, single-cylinder, dual-cylinder or multi-cylinder layouts are used to guarantee perfectly synchronized lifting and even load distribution.

The electrical control system uses reliable branded components for stable signal transmission. Standard operation is via a wall-mounted push-button box, with optional wireless remote control for greater operator flexibility. For automated production lines, the system can be upgraded with PLC control and I/O signal ports to support integration with conveyor lines. An LED fault diagnostic panel helps technicians quickly identify and resolve issues, minimizing downtime.

Technical Specifications

Parameter	Standard Configuration Range	Customization Options
Rated Load Capacity	2 – 5 tons (general industrial use)	1 – 100 tons heavy-duty custom build
Lifting Stroke	1 – 6 meters	Fully customized to site requirements
Platform Dimensions	2000 × 3000mm (reference)	Custom length and width for all loads

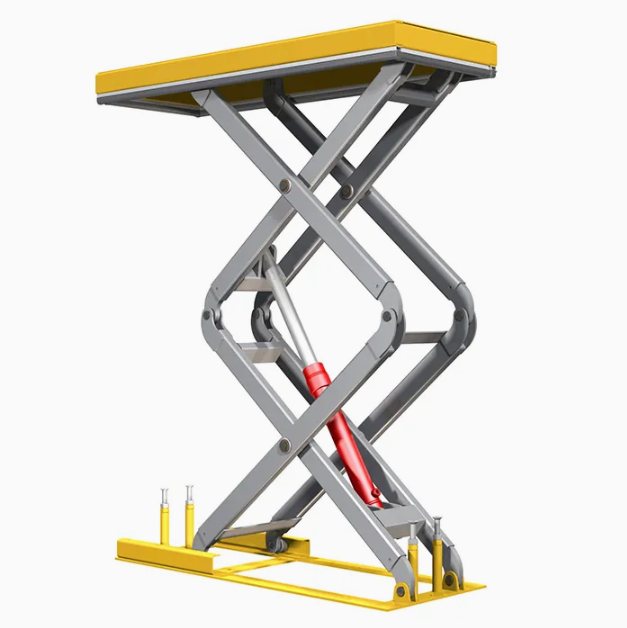

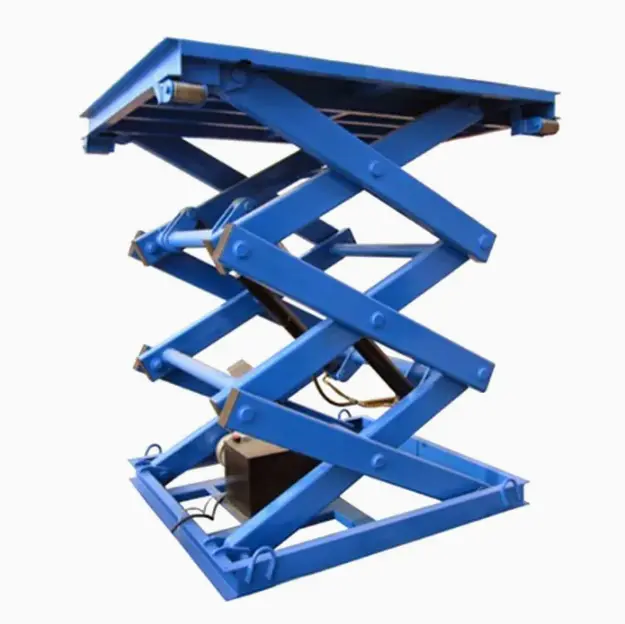

Drive System	Hydraulic scissor drive	Multi-stage scissor for greater heights
Lifting Speed	4 – 6 m/min	Adjustable speed for precision applications
Power Supply	AC 220V / 380V, 50/60Hz	Custom voltage and phase configuration
Control Method	Push-button control + emergency stop	Remote control, PLC automation upgrade
Installation Type	Above-ground / pit-recessed	Multi-level linked system design

Regular Maintenance

Proper routine maintenance ensures safe, efficient operation, maximizes performance and extends the lift’s service life. All maintenance work should follow the manufacturer’s official manual and safety guidelines.

Daily Routine Checks

Before each shift, operators should complete basic visual inspections: confirm there are no obvious cracks or deformation on the scissor arms and platform; check that the emergency stop button functions normally; verify there is no oil leakage around the hydraulic cylinders and pump station; and clear any debris from the platform and surrounding travel path.

Scheduled Servicing

Hydraulic System: Check hydraulic fluid levels monthly and top up with the specified grade of fluid as needed. Replace hydraulic oil completely every 12 months or 2000 working hours, and clean the oil tank and filter element at the same time.
Mechanical Lubrication: Lubricate all pin shafts and joint bearings every 3 months to reduce friction wear.
Safety Device Calibration: Every 6 months, inspect and calibrate limit switches, safety latches and overload protection devices to ensure reliable function.
Annual Full Inspection: Once per year, perform a comprehensive structural and electrical inspection, including weld condition, cable insulation and sealing part wear.

Available Accessories

The table below lists standard and optional accessories to optimize functionality, safety and maintainability of the fixed scissor lift:

Accessory / Component	Description
Control Panel	Wall-mounted operation device with buttons for lifting, lowering and emergency stop
Remote Control	Wireless handheld controller for convenient operation from different positions
Safety Lock Mechanism	Mechanical latching device that secures the platform at set heights for load holding
Hydraulic Fluid	Specialized anti-wear hydraulic oil for stable system operation
Power Supply Cable	Heavy-duty cable connecting the lift system to the electrical power source
Emergency Stop Button	Red mushroom-head safety button that immediately halts all movement in emergencies
Anti-Slip Platform Liners	Textured non-slip plates installed on the platform surface for improved traction
Loading Ramp	Sloped ramp plate to facilitate easy loading and unloading of pallet trucks and trolleys
Service Manual	Detailed instruction manual covering operation, safety protocols and maintenance procedures
Lubrication Kit	Specialized grease and tools for lubricating moving joints and pin shafts
Hydraulic Pump Unit	Core hydraulic component that generates system pressure for lifting
Platform Extensions	Removable extension plates to adjust platform size for oversized loads
Inspection Toolkit	Basic hand tools for performing routine on-site checks and minor adjustments
Backup Power Supply	Optional UPS module to support emergency lowering and short-time operation during power outages

Application Scenarios

In warehouses and distribution centers, the lift is widely used for vertical cargo transfer between ground level and mezzanines or basements. At loading docks, it serves as an adjustable-height platform to bridge gaps between buildings and delivery vehicles of different heights.

On assembly, machining and packaging lines, the lift acts as an adjustable work platform or material feeding station, allowing operators to set the optimal working height for different tasks. It is also commonly used for lifting heavy molds, machine tools and production equipment during installation and maintenance.

For automotive and heavy machinery facilities, wide-platform high-capacity models provide stable lifting for vehicle servicing and assembly. For food, pharmaceutical and chemical industries, stainless steel and explosion-proof configurations are available to meet special environment requirements.

Why Partner With HUICHUANG

HUICHUANG (JNHC Lift) is a professional lifting equipment manufacturer with in-house R&D, production and after-sales capabilities, serving industrial and commercial clients worldwide.

We operate our own modern production facility with skilled engineering and production teams. All raw steel is sourced from qualified mills, and core hydraulic and electrical components use premium imported materials. We control every production step from cutting and welding to assembly and testing, ensuring consistent quality for every lift we deliver.

All products are manufactured under ISO quality management systems and hold CE and other international certifications, with full documentation provided for customs clearance and local compliance. We also support comprehensive after-sales service, including standard warranty coverage, long-term spare parts supply and remote technical guidance. For distributors and brand partners, we offer flexible OEM and ODM cooperation options.

Conclusion

The fixed scissor lift platform is a versatile, cost-effective vertical lifting solution that combines heavy load capacity, reliable performance and flexible installation. It addresses a wide range of material handling needs across industrial, warehousing and commercial sectors, offering a far lower total cost of ownership than traditional freight elevators. With fully customizable configurations and robust, long-lasting construction, it delivers stable, safe vertical transport for many years of continuous operation.

If you are looking for a reliable fixed scissor lift supplier, welcome to contact HUICHUANG for detailed specifications, project drawings and a formal quotation.
