Core Product Features & Engineering Highlights

1. Pit-Free Installation for Minimal Civil Work

2. Multi-Layered Safety Protection System

• Bottom obstacle sensors: Pressure-sensitive sensors along the platform base automatically stop downward movement immediately upon contact with any object or person, preventing entrapment and injury.
• Anti-slip platform surface: The diamond-textured stainless steel platform provides reliable traction for wheelchair wheels, even in damp or wet conditions.
• Dual emergency stop buttons: Easily accessible emergency stop controls are mounted at both ground level and on the platform, allowing instant halting of all operations.
• Manual lowering valve: In the event of a power outage, a mechanical hydraulic release valve allows the platform to be lowered slowly and safely to ground level.
• Emergency door release: A mechanical override enables manual opening of the entry gate if electronic locking systems fail, ensuring users can exit at all times.
  Optional upgrades including safety light curtains and pressure-sensitive edge sensors are available for high-traffic public installations.

• Integrated one-piece guide rail: The lift travels along a monolithically formed aluminum guide rail, which delivers superior structural rigidity and resistance to bending or deformation compared with assembled multi-section rails. This ensures consistently smooth vertical travel over thousands of operating cycles.
• Reinforced 32mm bottom beam: The platform chassis is supported by a 32mm thick reinforced bottom beam, which evenly distributes load weight across the platform. This heavy-duty construction prevents structural fatigue and supports larger platform sizes without compromising stability.

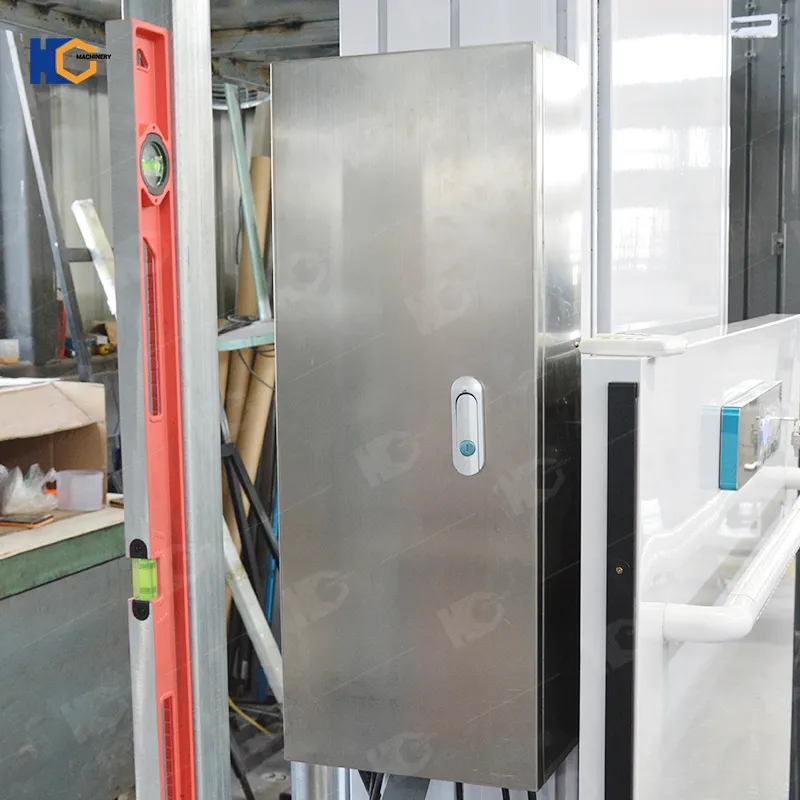

• 304 stainless steel control enclosure: The electrical control box is fabricated from 304-grade stainless steel, offering excellent waterproof and rust-resistant performance. This protects internal electronics from dust and moisture, making the lift suitable for both indoor and covered outdoor installation.

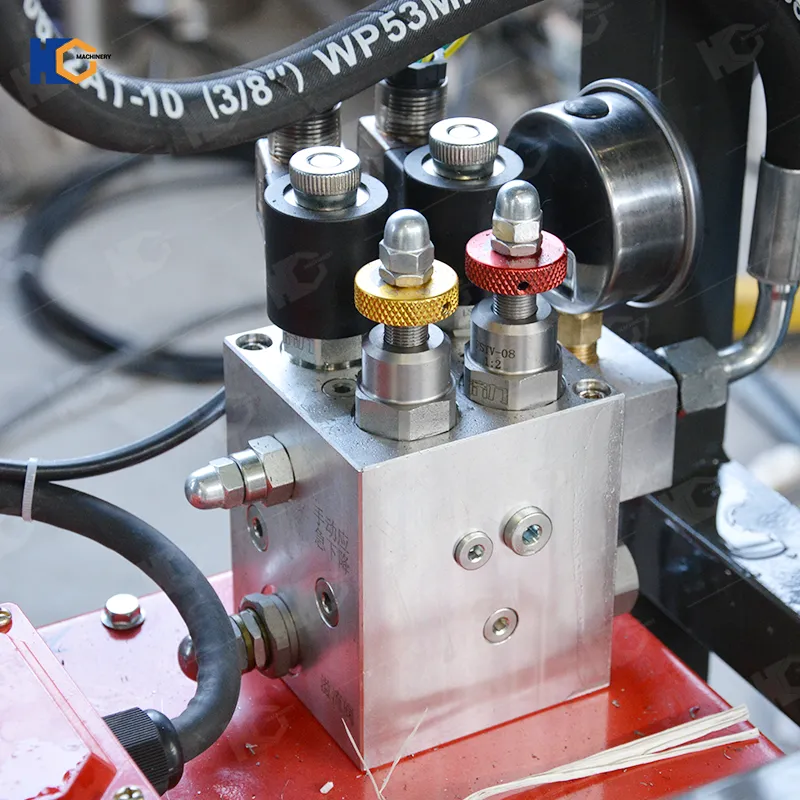

5. Ultra-Quiet Hydraulic Power Unit

Powering the lift is a premium oil-immersed hydraulic power station, engineered for quiet, efficient and leak-free operation. The submerged motor design significantly reduces operational noise and vibration, keeping sound levels below 55dB — quiet enough for residential bedrooms, hospital wards and office environments without causing disturbance. This low-noise performance is particularly valued in residential neighborhoods and quiet commercial environments where excessive mechanical noise would be disruptive. The compact power unit is also lightweight, energy efficient and built for years of maintenance-free service.

6. Smart Control Motherboard for Easy Maintenance

The main control system uses a plug-in modular circuit board with an LED status display. This design simplifies installation, system diagnostics and repair work, as technicians can quickly identify error codes and replace individual modules without full rewiring. Clear, reliable signal transmission ensures responsive, consistent lift performance with minimal downtime.

7. Weatherproof Construction for Broad Environmental Adaptability

All external metal components receive anti-corrosion surface treatment, including powder coated aluminum panels and galvanized structural parts. The lift is rated for operation in temperatures from -20°C to 60°C, and can be upgraded with an IP67 waterproof motor package for fully outdoor installation. This wide environmental tolerance makes the lifts suitable for varied climate conditions across different regions.

Full Technical Specifications

Below are the standard technical parameters of HUICHUANG wheelchair lifts. All configurations can be customized to match specific project requirements.

Parameter	Standard Specification	Customization Options
Brand	HUICHUANG (JNHC Lift)	OEM private labeling available
Load Capacity	250kg / 350kg (standard)	Up to 400kg maximum
Lifting Height	Up to 10 meters	Custom stroke for 1–3 floor use
Platform Size	1430 × 1000 mm	Expandable up to 1500 × 1500 mm
Lifting Speed	6 – 8 meters per minute	Adjustable speed settings
Entry & Exit Configurations	Same-side, 90°, 180°	Custom layout to fit site
Drive System	Hydraulic power unit	Traction drive for taller heights

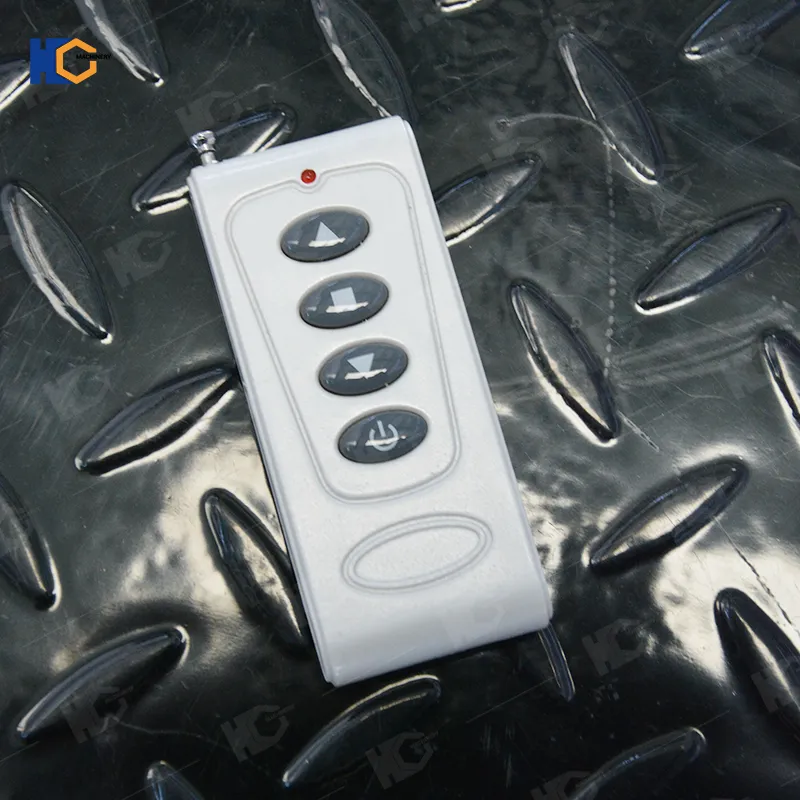

Control Method	Button control + remote control	Touchscreen, voice control upgrades
Platform Surface	Anti-slip stainless steel	Custom surface materials
Operating Temperature	-20°C to 60°C	Climate-specific upgrade packages
Installation	Direct floor mount, no pit required	100mm shallow pit option
Certification	CE, ISO certified	Additional certification support
User Manual	Included (English version)	Multi-language manual support

Why Partner With HUICHUANG (JNHC Lift)?

As an integrated manufacturer with our own production facilities, HUICHUANG delivers clear advantages in quality control, pricing, customization and long-term support for buyers in the US market.

Direct Factory & Integrated Manufacturing

HUICHUANG (Jinan Huichuang Machinery Manufacturing Co., Ltd.) is based in Jinan, Shandong — China’s core hub for hydraulic lifting technology. With decades of industry experience, a 20,000 square meter production facility and a team of 200 skilled employees including senior R&D engineers, we design, produce and export a full range of lifting equipment in-house, from wheelchair lifts and home elevators to scissor lifts and boom lifts.

Our end-to-end production covers every stage from raw material processing to final assembly and full-load testing, ensuring strict quality standards, stable output and short lead times for both standard and custom orders.

Factory-Direct Pricing & Cost Efficiency

Buying directly from our factory eliminates multiple layers of distributors and markups, typically delivering 25%–35% cost savings compared with local equipment dealers, with no compromise on material quality or safety. Tiered volume discounts are available for bulk orders, distributor partnerships and OEM projects.

Full Customization & OEM/ODM Capabilities

Our engineering team supports full customization of platform dimensions, lifting height, load capacity, finish colors and control systems. For distributors and brand partners, we provide comprehensive OEM/ODM services including private labeling, custom packaging and tailored configurations to match your brand identity and local market needs.

Reliable After-Sales & Technical Support

We back every product with structured after-sales service:

• 12-month warranty covering all major components with free replacement of defective parts
• Fast spare parts supply shipped directly from our factory
• 24/7 online technical support including remote installation guidance and maintenance training
• Full English documentation including operation manuals and installation guides

Proven Export Experience & Compliance

With years of export experience across North America, Europe, Southeast Asia and Oceania, we are fully familiar with international shipping procedures, customs requirements and certification standards. All our wheelchair lifts carry CE and ISO certifications and meet EN 81-41 safety norms, with full documentation provided to support US customs clearance and local code compliance.

Typical Application Scenarios

Our wheelchair lifts serve a wide range of built environments:

• Residential homes: Enable aging in place and independent living for wheelchair users and seniors, with quiet operation and a clean aesthetic.
• Healthcare facilities: Support safe, reliable patient transport between floors with low noise levels conducive to recovery.
• Commercial & retail spaces: Help office buildings, shopping centers and restaurants meet accessibility requirements for all customers and employees.
• Public & institutional buildings: Create inclusive spaces in schools, libraries, government offices and places of worship.
• Historic building retrofits: The pit-free freestanding design preserves architectural character while adding accessibility.

Conclusion

For distributors, contractors and property owners in the US market, HUICHUANG wheelchair lifts deliver robust build quality, comprehensive safety features, flexible installation and competitive factory-direct pricing. Engineered for long-term durability and low maintenance, these hydraulic vertical platform lifts support reliable accessibility for residential, commercial and public projects of all sizes.

Backed by decades of manufacturing expertise, full international certification and dedicated after-sales support, HUICHUANG is a trusted long-term partner for all your accessibility equipment needs.

If you are looking for a reliable wheelchair lift supplier for the US market, contact our team today for detailed specifications and a formal quotation.
