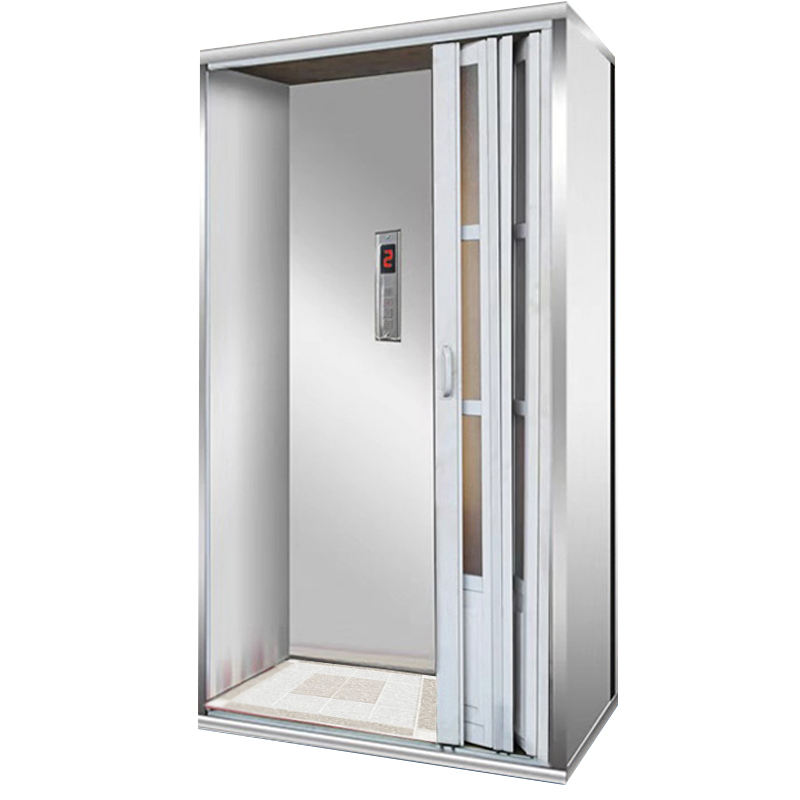

Small shaftless home elevator 2, 3, 4, 5 floors

Lift height: 2, 3, 4, 5 floors
Load capacity: 400kg
Brand: HUICHUANG(JNHC lift)
Customization: YES
Manual: YES
Price: $6,000 to $15,000
Payment Methods: TT
Delivery time: 15 working days

+8615628811021

admin@jnhclift.com

Small shaftless home elevator for 2, 3, 4, 5 floors is an elevator installed in a private residence for use by a single family member only. It can also be installed in a building that is not used by a single family as a tool for a single family to enter their residence, but it is not accessible and usable by the public or other residents in the building.

Small shaftless home elevator 2, 3, 4, 5 floors.pdf

Introduction

As multi-level private residences become more common across global markets, homeowners are increasingly seeking vertical mobility solutions that fit into existing home layouts without extensive structural renovation. Traditional residential elevators often require pre-built concrete shafts, dedicated machine rooms and complex civil works, making them impractical for retrofit projects and small to mid-sized properties. A small shaftless home elevator eliminates these barriers, delivering reliable vertical transport while minimizing construction demands and preserving interior space.

Manufactured by HUICHUANG (also known as JNHC Lift), this shaftless home elevator is designed to serve 2 to 5 floor private residences, with a standard 400kg load capacity and full customization support. It requires no permanent civil shaft, installs with minimal disruption, and adapts to both new construction and existing home renovation projects. This guide covers its working principle, core advantages, technical specifications, customization options and purchasing details to help homeowners, contractors and distributors evaluate a space-saving residential elevator solution.

What Is a Shaftless Home Elevator?

A shaftless home elevator is a self-contained vertical lifting system that integrates its own supporting frame and enclosure structure, eliminating the need for a separately constructed concrete or masonry shaft. Unlike traditional elevators that rely on a pre-built shaft wall for guidance and support, this model uses a self-supporting steel frame as both the structural support and the exterior enclosure, allowing it to be installed directly on a finished load-bearing floor.

This design greatly reduces the threshold for home elevator installation. For 2 to 5 floor properties, it can be placed in stairwell centers, room corners, hallways or other idle spaces, without requiring major structural changes to the building. It combines stable lifting performance, compact dimensions and aesthetic design, making it one of the most popular vertical mobility solutions for modern private residences.

Core Benefits of HUICHUANG Shaftless Home Elevator

1. No Civil Shaft Required, Fast & Low-Impact Installation

The most prominent advantage of this elevator is its shaftless design. It comes with a prefabricated integrated frame that serves as both the load-bearing structure and the shaft enclosure, so there is no need to build a separate concrete or brick shaft on site. This cuts civil engineering workload by more than 60% compared with traditional elevators, and greatly reduces construction dust, noise and disruption to daily household life.

For existing home renovation projects, this means no large-scale demolition or structural modification is needed. The modular structure can be assembled quickly on site, shortening overall project cycles and avoiding costly interior repair work after installation. For new build projects, it also simplifies architectural planning and reduces total construction costs.

2. Flexible Adaptation for 2 to 5 Floors

This elevator model supports flexible configuration for 2, 3, 4 and 5 floor applications, covering the height range of most private residences including duplexes, townhouses and detached villas. Users can select the exact number of stops and travel height according to their building structure, with no need to choose from limited fixed specifications.

The lifting system is calibrated to deliver consistent performance across the full 2 to 5 floor range, maintaining stable speed, accurate floor leveling and reliable safety performance whether installed in a 2-floor duplex or a 5-floor villa. This scalability makes it suitable for both small residential upgrades and large multi-story home projects.

3. 400kg Standard Load with Customizable Capacity

As standard, the elevator offers a 400kg rated load capacity, which comfortably accommodates 3 to 4 passengers, or a wheelchair user accompanied by a caregiver, meeting the daily travel needs of most multi-generational families. For properties with higher load requirements, the capacity can be customized upward to match specific usage scenarios.

The load-bearing structure is engineered with an adequate safety margin, ensuring stable operation even at full rated capacity. Whether transporting family members, daily groceries, luggage or small household items, the elevator provides reliable load support for daily residential use.

4. Compact Footprint, High Space Utilization

Thanks to its integrated shaftless design, the elevator has a very small overall footprint, making full use of limited indoor space. It can be installed in narrow stairwell centers, unused room corners or small hallway areas that would otherwise be wasted, turning idle space into functional vertical transport.

Compared with traditional elevators that require additional shaft wall thickness and machine room space, this shaftless model maximizes usable cabin area within the same external footprint, improving space utilization and preserving more living area for the homeowner. This is particularly valuable for urban properties where indoor space is at a premium.

5. Smooth, Quiet Operation for Residential Environments

The elevator adopts an optimized hydraulic drive system that delivers steady, jolt-free lifting and gentle start-stop transitions, creating a comfortable riding experience for users of all ages, including seniors and children. The power unit is equipped with noise reduction treatment, and the guide structure is designed to minimize friction and vibration during operation.

Operating noise is kept at a low level that will not disturb adjacent bedrooms, home offices or resting family members. This quiet performance makes it suitable for installation near living areas and bedrooms, without affecting the quiet comfort of the home environment.

6. Multi-Layer Safety Protection for Family Use

Safety is the primary design priority for residential elevators. This shaftless model is equipped with a comprehensive set of safety systems covering every stage of operation. An infrared light curtain protects doorways from pinching hazards, a bottom safety sensor detects obstacles during descent, and a speed governor with safety gear prevents overspeed conditions.

An uninterruptible power supply (UPS) is included as standard, which automatically activates during power outages to lower the car smoothly to the nearest floor and allow passengers to exit safely. An emergency stop button inside the cabin halts all movement immediately in any abnormal situation. All safety components comply with international safety standards and are fully tested before delivery.

Technical Specifications

All core parameters can be customized to match specific project requirements. The table below shows the standard configuration:

Parameter	Standard Specification
Model	HUICHUANG Small Shaftless Home Elevator
Available Floors	2 / 3 / 4 / 5 floors (customizable)
Rated Load Capacity	400 kg (customizable)
Travel Speed	0.3 m/s
Minimum Overhead Height	2200 mm
Drive System	Hydraulic drive
Installation Type	Freestanding indoor installation
Certification	Standard international safety compliance
Brand	HUICHUANG (JNHC Lift)

Full Customization Options

HUICHUANG provides comprehensive customization services to match different home decoration styles and functional requirements:

Shaft frame colors: Multiple finish options including white, silver, beige, gold, black and wood grain to coordinate with interior design
Cabin walls: Standard etched stainless steel with various patterns; optional tempered glass panoramic walls and backlit decorative panels
Ceiling designs: Standard stainless steel ceiling with LED lighting; optional starlight and artistic patterned ceilings
Flooring: Standard anti-slip PVC with multiple patterns; optional wood grain, marble effect and custom finishes
Control panels: Standard physical button panels; optional touchscreen panels and smart home integration
Door types: Manual swing doors and automatic sliding doors available to fit different space conditions

Every elevator can be tailored from appearance to function, ensuring it integrates seamlessly with the home rather than appearing as separate industrial equipment. A detailed user manual is included with each unit, covering operation procedures, daily maintenance and safety instructions.

Ideal Application Scenarios

This small shaftless home elevator is suitable for a wide range of 2 to 5 floor residential settings:

Detached villas: Provides convenient vertical transport across multiple floors, supporting aging-in-place and improving daily living quality
Townhouses and terrace homes: Installed in stairwell space to add vertical mobility without sacrificing living area
Duplex and triplex residences: Compact size fits perfectly in small multi-level properties
Existing home retrofits: No civil shaft design minimizes structural modification, ideal for accessibility upgrades of older properties
Boutique guesthouses and small residential buildings: Adds premium amenities with low installation cost and short construction time

Pricing, Payment & Delivery

Price Range

Priced from $6,000 to $15,000, the elevator’s final cost varies according to number of floors, load configuration, customization level and selected add-ons. Basic 2-floor configurations fall at the lower end of the range, while 5-floor custom units with premium interior finishes sit at the higher end. Transparent quotation is provided based on exact configuration requirements, with no hidden fees.

Payment Method

The standard accepted payment method is telegraphic transfer (TT), a secure and widely used payment term for international equipment orders. Specific payment terms can be discussed in detail during the quotation process.

Delivery Time

Thanks to modular prefabrication and optimized production scheduling, the standard delivery time is 15 working days after order and configuration confirmation. This short lead time allows projects to move forward quickly, reducing waiting time for homeowners and contractors.

Installation & After-Sales Support

The modular shaftless structure enables fast on-site assembly. For a standard residential installation, a qualified technical team can complete assembly and commissioning in a short period, with minimal disruption to the household. Detailed installation guidance and remote technical support are provided to assist local installation teams.

After delivery, full after-sales support is available including spare parts supply, technical consultation and maintenance guidance. Routine maintenance is straightforward due to the simple, reliable structure, and the included operation manual provides clear instructions for daily care and basic troubleshooting.

Frequently Asked Questions

Q: Does a shaftless home elevator have no guiding structure at all?

A: “Shaftless” means no separately built civil shaft is required. The elevator itself has an integrated self-supporting frame and internal guide rails to ensure stable vertical movement, with the same safety and stability as a shaft-equipped elevator.

Q: Can this model really be installed on 5 floors?

A: Yes. The elevator supports 2 to 5 floor configurations, and the drive and safety systems are calibrated to maintain reliable performance across the full height range.

Q: Can load capacity be increased beyond 400kg?

A: Yes. 400kg is the standard configuration, and higher load capacity can be customized according to specific usage needs.

Q: How much space does the elevator occupy?

A: The overall footprint is compact and can be adjusted according to cabin size. It fits easily in most stairwell centers and room corners of standard residential properties.

Q: Does the elevator come with an instruction manual?

A: Yes. Each unit is supplied with a detailed operation and maintenance manual to guide correct daily use and routine upkeep.

Conclusion

The HUICHUANG small shaftless home elevator offers a practical, cost-effective vertical mobility solution for 2 to 5 floor private residences. Its shaftless design eliminates the need for complex civil engineering, making it suitable for both new construction and renovation projects, while the 400kg standard load and flexible floor configuration meet the daily needs of most families.

With full customization options, reliable multi-layer safety protection, competitive pricing and short 15-day delivery, it delivers strong value for homeowners, contractors and distributors alike. Whether for improving residential accessibility, supporting aging-in-place or upgrading property value, this shaftless home elevator provides a balanced combination of functionality, aesthetics and cost efficiency.

If you are looking for a customizable, easy-to-install residential elevator for 2 to 5 floor projects, welcome to contact the HUICHUANG (JNHC Lift) team for a detailed quotation and configuration recommendation.
