A 12m towable boom lift trailer with 200kg load capacity is one of the most cost-effective and flexible aerial work platforms available today. Designed for maintenance, construction, installation, and inspection tasks, this type of towable boom lift combines height, mobility, and safety in a compact, trailer-mounted design.

Unlike self-propelled boom lifts or heavy truck-mounted platforms, a towable boom lift trailer offers lower purchase cost, simpler transportation, and minimal operating requirements—making it an ideal solution for contractors, rental companies, utilities, and facility managers.

This article provides a complete product introduction, technical explanation, real-world applications, and buying guidance for a 12m towable boom lift trailer with 200kg capacity, offered via factory direct sale.

What Is a 12m Towable Boom Lift Trailer?

A towable boom lift trailer is a trailer-mounted aerial work platform that can be towed by a standard vehicle such as a pickup truck or light commercial van. Once positioned on site, the lift is stabilized using outriggers, then raised to allow safe access to elevated work areas.

A 12m model typically refers to:

• Platform height: ~12 meters
• Working height: ~14 meters
• Maximum load capacity: 200 kg

This height range covers the majority of outdoor and indoor elevated tasks without the cost and complexity of larger boom lifts.

Think of it as scaffolding that learned how to drive—but chose to be towed instead.

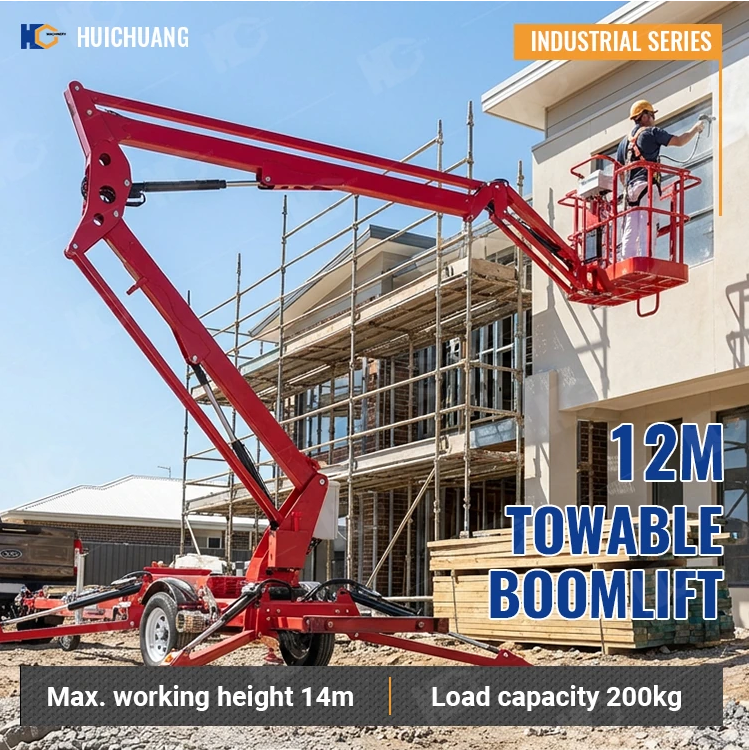

Core Specifications of the 12m Towable Boom Lift Trailer (200kg)

Based on the product information shown in the image, typical specifications for this category include:

• Platform height: 12 m
• Working height: 14 m
• Load capacity: 200 kg
• Platform size: approx. 0.9 × 0.7 m
• Working radius: around 5.5 m
• Total dimensions (L×W×H): approx. 6.3 × 1.68 × 2.1 m
• Storage dimensions: approx. 5.2 × 1.68 × 2.1 m
• Machine weight: ~1000 kg
• Price ：$8,500 to $25,000

These specifications make the machine compact enough for easy transport while still offering a generous working envelope.

Why 200kg Load Capacity Matters

A 200kg load capacity is not a random number. It is carefully engineered to support:

• One operator + tools
• Two operators with light equipment
• Safety margin for dynamic movement

In real-world use, 200kg is ideal for:

• Electrical installation
• Signage and lighting work
• CCTV and security system installation
• Tree trimming and façade maintenance

More capacity means heavier components, higher cost, and more complex towing requirements. For most tasks under 12 meters, 200kg is the sweet spot.

Key Advantages of a 12m Towable Boom Lift Trailer

1. Factory Direct Sale = Better Value

Buying a factory direct towable boom lift trailer eliminates unnecessary intermediaries. That usually means:

• Lower purchase price
• Direct access to technical support
• Customization options
• Faster spare parts availability

You pay for steel, hydraulics, and engineering—not showroom rent.

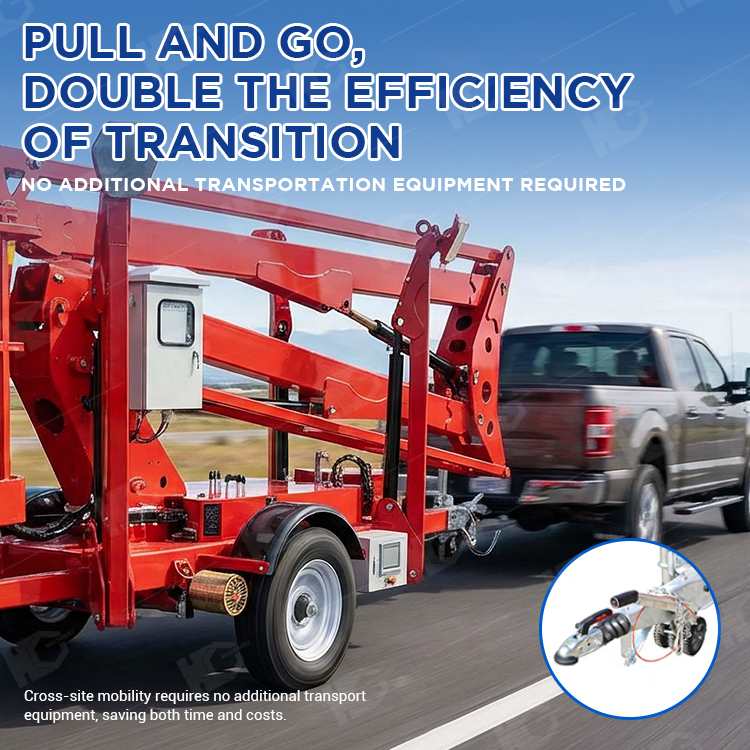

2. Easy Transportation and Deployment

A towable boom lift trailer:

• Does not require a dedicated transport truck
• Can be towed by common vehicles
• Fits into standard storage spaces
• Can be deployed quickly on site

This flexibility is especially valuable for rental fleets and service companies handling multiple jobs per day.

This is a towable self-propelled mobile boom lift. Its biggest feature is that it can be moved by a pickup truck, enabling quick and convenient relocation across sites without the need for additional transport vehicles, significantly saving equipment scheduling time and costs.

3. Compact but Powerful Working Radius

With a working radius of approximately 5.5 meters, the 12m model allows operators to reach over obstacles such as:

• Fences
• Machinery
• Vehicles
• Landscaping

This lateral reach reduces repositioning time and increases productivity.

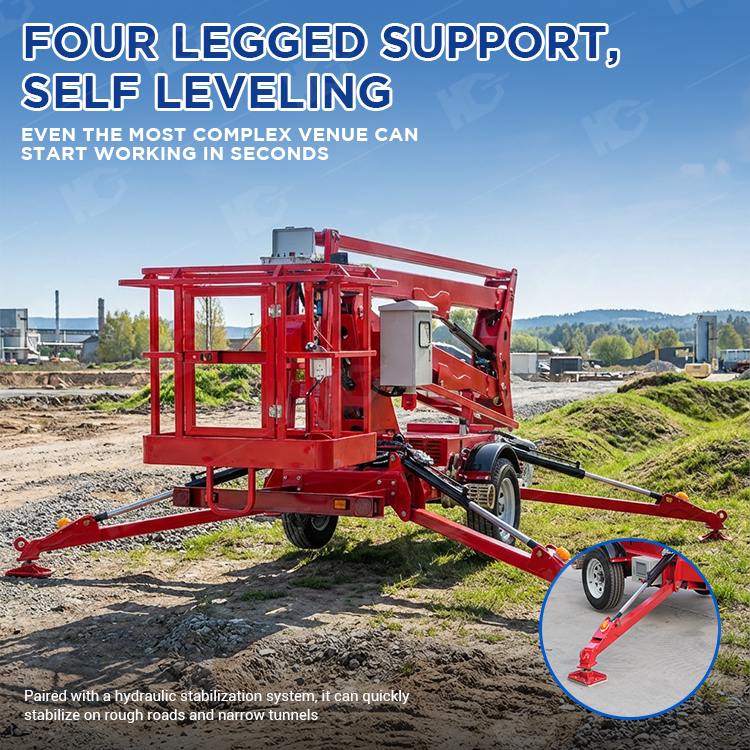

4. Stable and Safe Operation

Towable boom lifts use:

• Hydraulic outriggers
• Automatic leveling systems
• Emergency stop controls
• Safety interlocks

Once stabilized, the platform behaves like a fixed structure—without the headaches of scaffolding assembly.

Safety is engineered, not improvised.

Typical Applications of a 12m Towable Boom Lift Trailer

A 12m towable boom lift with 200kg capacity is widely used across industries:

Construction & Renovation

• Exterior wall finishing
• Window installation
• Roofing edge work
• Steel structure inspection

Electrical & Utilities

• Power line maintenance
• Streetlight installation
• Traffic signal servicing

Facilities & Warehousing

• Ceiling repairs
• HVAC installation
• High-bay lighting maintenance

Advertising & Media

• Billboard installation
• Outdoor signage maintenance
• Event setup

Landscaping & Tree Care

• Tree trimming
• Branch removal
• Park maintenance

If the task is above head height and below 12 meters, this machine likely fits.

Towable Boom Lift vs Scissor Lift (Why Choose Boom?)

A common buyer question: Why not use a scissor lift? We previously wrote an article specifically about Boom Lift vs Scissor Lift, which we hope will be helpful to you.

Scissor lifts move vertically. Boom lifts move up and out.

A towable boom lift is better when:

• Obstacles block direct vertical access
• Horizontal reach is required
• Work areas are irregular

For straight-up indoor work, scissor lifts shine. For flexible outdoor access, towable boom lifts win.

Different tools, different physics.

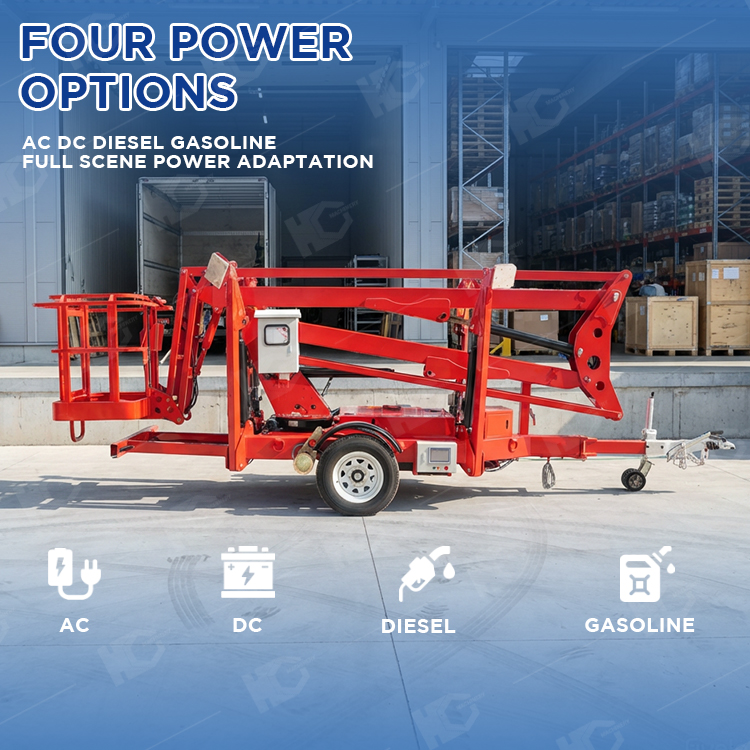

Power System and Control Design

Most 12m towable boom lift trailers use:

• Electric motor + battery
• Or electric + auxiliary power

This setup offers:

• Low noise operation
• Lower emissions
• Reduced maintenance

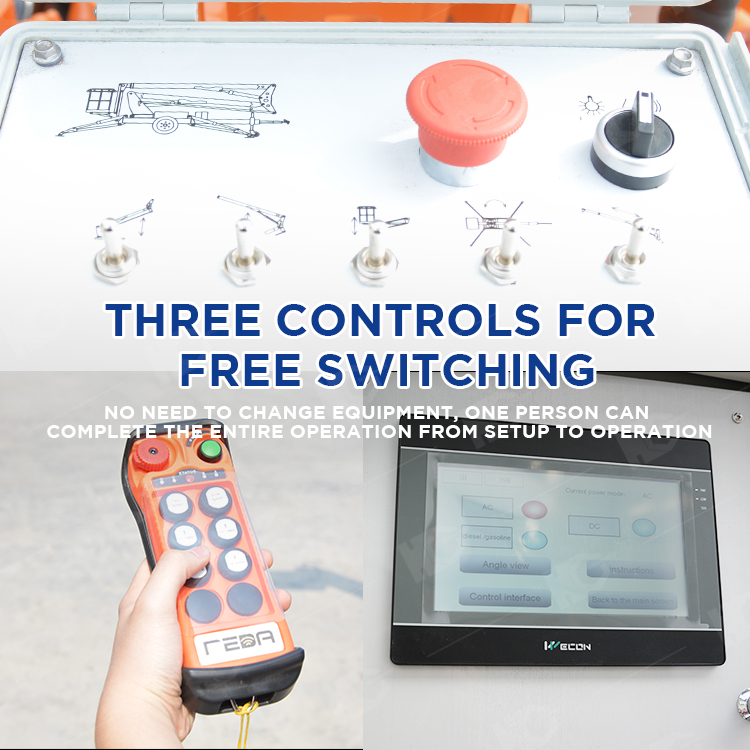

Controls are typically:

• Platform control panel
• Ground control station
• Emergency lowering system

The learning curve is short, which reduces training costs and operational risk.

Durability and Structural Design

Factory-built towable boom lifts are designed with:

• High-strength steel booms
• Reinforced pivot joints
• Industrial-grade hydraulic cylinders
• Anti-corrosion surface treatment

This ensures:

• Long service life
• Stable lifting performance
• Resistance to outdoor environments

A well-maintained unit can operate reliably for many years with predictable maintenance costs.

Maintenance and Operating Costs

One of the biggest advantages of a towable boom lift trailer is its low operating cost.

Routine Maintenance Includes:

• Hydraulic oil inspection
• Battery charging and replacement
• Lubrication of pivot points
• Electrical system checks

There is:

• No engine overhaul
• No complex transmission
• No emissions compliance headaches

This simplicity is why rental companies love these machines.

Customization Options from Factory Direct Suppliers

When buying factory direct, customization is often available, such as:

• Power type selection
• Control panel language
• Safety standard compliance (CE, ISO)
• Paint color and branding
• Plug and voltage configuration

Customization turns a generic machine into a market-ready asset.

Boom lift specifications.

In global markets, the 12m towable boom lift consistently outsells larger models because it balances:

• Height
• Cost
• Transportability
• Application range

Larger lifts bring diminishing returns for most users. Smaller lifts limit flexibility.
Twelve meters is the Goldilocks zone.

We offer more than just the 12m boom lift; we also have other boom lift specifications.

Who Should Buy a 12m Towable Boom Lift Trailer?

This product is ideal for:

• Equipment rental companies
• Electrical contractors
• Construction service providers
• Municipal maintenance teams
• Facility management companies

If your business involves regular elevated work but not heavy industrial loads, this machine fits naturally into your workflow.

Factory Direct Sale: What Buyers Should Confirm

Before purchasing, confirm:

• Final specifications
• Included accessories
• Spare parts availability
• Warranty terms
• Packing and shipping method

A professional factory supplier will provide clear documentation, not poetic promises.

Final Thoughts

A 12m towable boom lift trailer with 200kg load capacity represents one of the smartest investments in access equipment today. It offers height, reach, safety, and mobility—without the operational burden of larger machines.

Purchased through factory direct sale, it delivers:

• Strong cost control
• Reliable performance
• Long service life

It’s not flashy machinery. It’s practical, honest equipment that shows up, lifts up, and gets out of the way.

And in the real world of work at height, that’s exactly what you want.

Huichuang Lift is a boom lift factory from China. We offer OEM and customized boom lift services for rental customers. Our factory also sells boom lifts directly at prices as low as $8,500 . If you have this need, please contact our experts for the latest quote.
