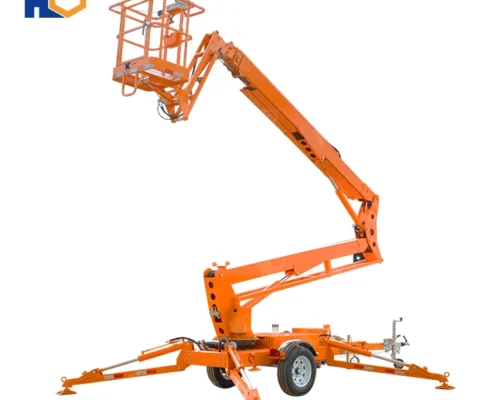

50ft Towable Articulating Boom Lift

What’s Towable Articulating Boom Lift?

A towable articulating boom lift is an aerial work platform designed to be easily towed behind a vehicle to reach different job sites. It features a telescopic boom that can articulate or bend in multiple directions, allowing for increased flexibility and reach when working at height. towable articulating boom lift is often used in construction, maintenance, and other industries where workers need to access elevated areas.

The Parameters of Towable Articulating Boom Lift

The boom lift lifting height is from 10-20m, load capacity is 200kg, machine power is AC or DC or Diesel or Petrol, you can choose one or two power you prefer. And please check detailed parameters as below:

If you want to purchase it, please share the lifting height you need, for example, if the working height is 50ft, you can choose 14m lifting height, working height can reach 16m; If you need lifting height 50ft, you can choose 16m towable articulating boom lift.

Height and Load Capacity

The 50ft (approximately 15.2 meters) model typically offers a working height of up to 56 feet (17 meters) when accounting for the operator’s reach. Platform dimensions commonly range from 4 to 6 feet in length, accommodating 1–2 workers. Rated platform capacity usually falls between 227 kg (500 lbs) and 272 kg (600 lbs), sufficient for personnel plus tools and materials. While specific models like THZB-14-200 or THZB-16-200 may vary slightly, all adhere to strict structural integrity standards.

Power Systems

• Electric (AC/DC): Quiet, zero-emission operation ideal for indoor use or noise-sensitive areas. Limited by battery life (typically 4–8 hours).
• Diesel/Gasoline: Higher power output and longer runtime, suitable for rugged outdoor construction. However, they produce emissions and require fuel storage.
• Hybrid Options: Combine electric platform controls with diesel chassis propulsion, offering flexibility across mixed environments.

Safety Mechanisms

Critical safety components include:

• Explosion-proof hydraulic cylinders that prevent catastrophic failure under pressure surges.
• Hydraulic locks on outriggers that instantly seal fluid circuits during emergencies, preventing uncontrolled descent.
• Emergency descent valves enabling manual lowering during power loss.
• Overload and leakage protection systems that disable operation if weight limits are exceeded or electrical faults are detected.

These features collectively ensure compliance with international safety protocols and minimize operational risk.

The Advantages of the 50ft Towable Articulating Boom Lift

I. Safety & Stability Features

1. Explosion-Proof Cylinders on Arms
   Designed to prevent hydraulic failure under extreme conditions.
2. Hydraulic Locks on Outriggers
   Automatically lock hydraulic oil flow in emergencies to prevent platform drop.
3. Automatic Outriggers with Level Tester
   Equipped with a handle-operated system and built-in level tester for quick, safe setup.
4. Folding Outriggers with Extended Range
   Provide a wider support base to enhance stability and user safety.
5. Platform Leveling Cylinder
   Ensures the work platform remains perfectly horizontal at all heights.
6. Tilt Alarm & Leveling Inspection System
   Alerts operators if the chassis exceeds safe tilt angles.
7. Overload & Leakage Protection
   Built-in sensors prevent operation beyond rated capacity or in case of electrical leakage.
8. Emergency Descent Valve (on Each Arm)
   Allows controlled lowering of the platform during power failure or emergency.
9. Electromagnetic Brake Assist System
   Enhances braking performance and response during towing.

II. Control & Operation Systems

1. PLC Touch Screen Control System
   Full English interface for intuitive, user-friendly operation.
2. Remote Control Customization
   All lift functions can be operated and customized via remote control.
3. Master Control Switch – Platform
   Platform controls only activate when the operator steps on the safety switch.
4. Master Control Switch – Chassis
   Requires simultaneous activation of multiple buttons to enable chassis operations, preventing accidental starts.
5. Adjustable Lifting Speed
   Operators can fine-tune ascent/descent speed based on task requirements.
6. Walking Assist System (Optional)
   Enables remote-controlled movement of the entire unit on-site for easy positioning.

III. Towing & Mobility

16. High-Quality Tow Hitch & Tow Ball
    Imported from Italy for durability and reliable connection.
17. German AL-KO International Standard Tow Bar
    Industry-leading brand ensuring compliance with global towing safety standards.
18. Pneumatic Tires
    Suitable for all terrains—paved roads, grass, gravel, and rough construction sites—ensuring smooth mobility.

IV. Braking System (Triple Protection)

The lift features a three-mode braking system for maximum safety during transport:

1. Impact Brake
   When the towing vehicle brakes suddenly, reverse impact force retracts the braking hooks, which then pull the brake shaft to stop the trailer.
2. Manual Brake
   Operated by hand lever; force is transmitted via brake rods to both sides of the axle for mechanical braking.
3. Electronic Brake (Wired Connection)
   Connected to the towing vehicle’s brake circuit. When the vehicle’s brake lights activate, the lift automatically applies its brakes.

V. Durability & Environmental Protection

1. Electrophoretic Coating Treatment
   Provides superior rust and corrosion resistance.
2. Waterproof Design
   Electrical components and critical systems are sealed against moisture and dust.

VI. Operator Convenience & Accessories

• Integrated Toolbox on platform for tool storage
• Safety Harness Anchor Points included
• Control Panel Mounted on Basket for easy access
• Rear Light & Strobe Lights on Each Outrigger for enhanced visibility and safety during setup

VII. Delivery Option

• FCL (Full Container Load) Shipping Available
  Ideal for bulk orders or international distribution.

Key Applications of the 50ft Towable Articulating Boom Lift

The 50ft towable articulating boom lift excels in diverse real-world scenarios where safe, flexible, and elevated access is required. Its unique ability to extend vertically while bending around obstacles makes it ideal for complex work environments across multiple sectors:

• Construction & Building Maintenance: Widely used for exterior tasks such as window installation, facade cleaning, masonry repair, roof inspections, and steel structure assembly—especially on multi-story buildings with limited ground access or tight alleyways.
• Utility and Electrical Services: Enables linemen to safely reach overhead power lines, transformers, traffic signals, and streetlights without blocking roads or requiring large support vehicles. Its non-conductive options (e.g., fiberglass booms) enhance safety near live electrical components.
• Landscaping and Tree Care: Arborists rely on this lift to trim, prune, or remove limbs from tall or mature trees while maintaining a safe distance from the trunk and avoiding damage to lawns or gardens—thanks to its narrow footprint and off-road tires.
• Industrial and Warehouse Operations: Essential in manufacturing plants, distribution centers, and refineries for maintaining high-bay racking systems, inspecting conveyor belts, servicing HVAC units, and accessing elevated piping or lighting fixtures in confined indoor spaces.
• Municipal and Public Works: Cities use these lifts for signage installation, bridge inspection, park maintenance, and public lighting upkeep—benefiting from quick deployment and minimal disruption to pedestrian or vehicle traffic.
• Emergency Response and Disaster Recovery: Fire departments and rescue teams deploy towable articulating booms in urban search-and-rescue missions, flood response, or structural collapse scenarios due to their rapid setup, portability, and ability to operate in unstable or debris-filled areas.

Because it can be towed behind a standard pickup truck and set up by a single operator in minutes, this equipment is particularly valuable for contractors managing multiple job sites, municipalities with limited fleet resources, or rental companies serving varied customer needs. Its adaptability ensures productivity without compromising safety—even in the most challenging access conditions.

Operation and Maintenance Guide

Operating Procedure

1. Setup: Deploy folding outriggers until the automatic level tester confirms stability.
2. Pre-Use Check: Inspect tires, hydraulic lines, control functions, and safety harnesses.
3. Operation: Engage master switches on both chassis and platform before using controls. Always maintain three points of contact when entering/exiting.
4. Shutdown: Lower the platform fully, retract outriggers, secure all components, and disconnect power.

Routine Maintenance

• Hydraulic System: Check fluid levels weekly; replace filters every 500 operating hours.
• Tires: Maintain proper inflation; inspect for cuts or wear.
• Electrical System: Ensure wiring insulation is intact; clean battery terminals monthly.
• Structural Components: Lubricate pivot points and inspect welds quarterly.

Common Troubleshooting

• Slow Lifting: Likely low hydraulic fluid or clogged filter.
• Platform Not Leveling: Faulty leveling cylinder or sensor calibration issue.
• No Power: Check emergency stops, fuses, and battery charge.

Regular preventive maintenance extends service life and prevents costly breakdowns.

Industry Trends and Market Analysis

The global aerial work platform (AWP) market is experiencing robust growth, projected to exceed USD 21.5 billion by 2026, driven by urbanization, infrastructure investment, and stricter safety regulations replacing ladders and scaffolding.

Chinese manufacturers have gained significant market share by offering high-quality, customizable solutions at competitive prices. Unlike Western brands that prioritize standardized models, Chinese suppliers often provide tailored configurations—such as voltage adjustments, language-specific interfaces, or enhanced corrosion protection—for diverse global markets.

Future innovations focus on:

• Electrification: Battery-powered lifts with fast-charging capabilities.
• Telematics: Remote monitoring of usage, maintenance alerts, and geofencing.
• Lightweight Materials: Aluminum booms and composite platforms to reduce towing weight.

These trends position towable articulating booms as central tools in the evolution toward safer, smarter, and more sustainable construction practices.

Safety Standards and Operator Training

Operating a boom lift requires certified training per ANSI A92.2 and OSHA guidelines. Operators must understand:

• Pre-use inspection checklists
• Proper fall protection (harness anchorage within the platform)
• Emergency procedures (e.g., using the manual descent pump)

On-site safety includes:

• Setting up warning cones and signage
• Conducting wind speed assessments (operation typically prohibited above 28 mph)
• Ensuring ground conditions are firm and level

Compliance isn’t just regulatory—it’s a cultural commitment to protecting lives. Equipment meeting EN 280 and ANSI A92.20 provides the engineered foundation; trained personnel provide the human element of safety.

How To Purchase A 50ft Towable Articulating Boom Lift?

If you want to purchase a towable articulating boom lift, please tell us the lifting height & machine power & incoterms(EXW or FOB or CIF, etc, it is FCL shipping) you need, then our sales manager will contact you immediately; If you decide to purchase it from us, our sales manager will send you a proforma invoice with our bank information, then you can pay the deposit, after we received the deposit, we will start production; When production will finished, we will send the product photos or videos, then you can pay the balance, we will arrange the shipment after balance arrived. After the goods arrived your designated seaport, you can process the custom clearance and then pick up the towable articulating boom lift.

JNHC LIFT is a professional manufacturer and exporter of boom lifts based in China, specializing in providing high-quality 50ft Towable Articulating Boom Lifts. Designed for reliability and efficiency, our boom lifts are perfect for a wide range of applications, including construction, maintenance, and industrial tasks. With advanced technology and robust construction, our lifts ensure smooth operation, safety, and durability. We take pride in offering competitive pricing without compromising quality, making our products a cost-effective solution for your business needs. Whether for wholesale or project-specific orders, we welcome inquiries and look forward to assisting you with tailored solutions. Contact us today!
