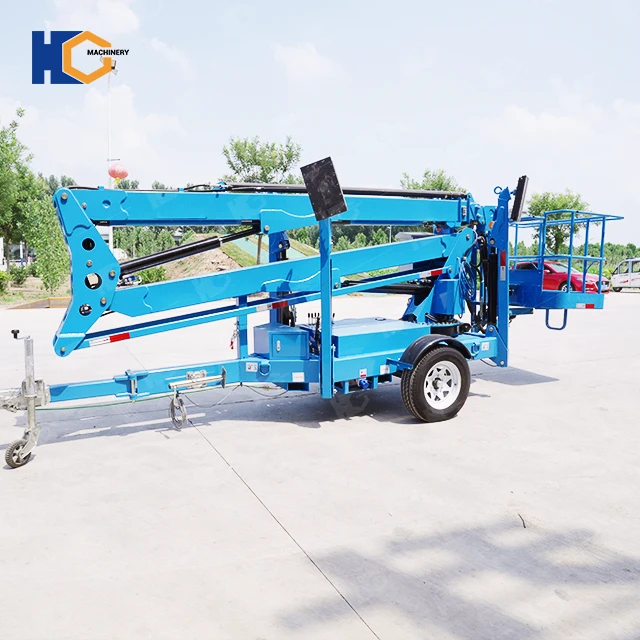

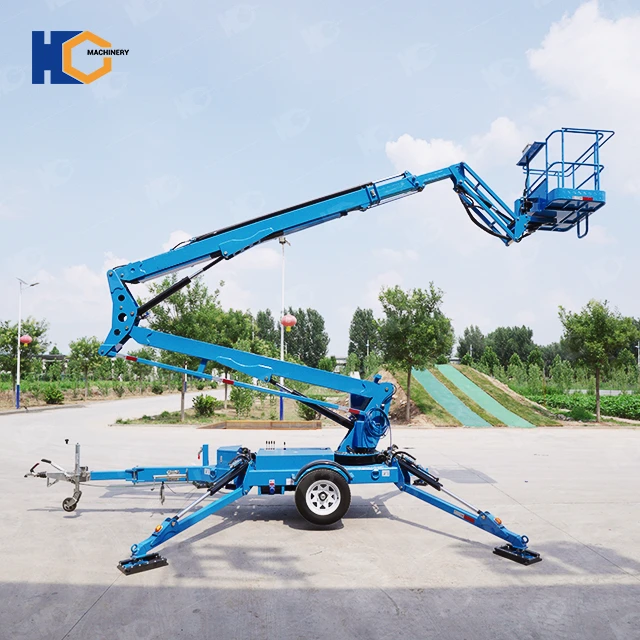

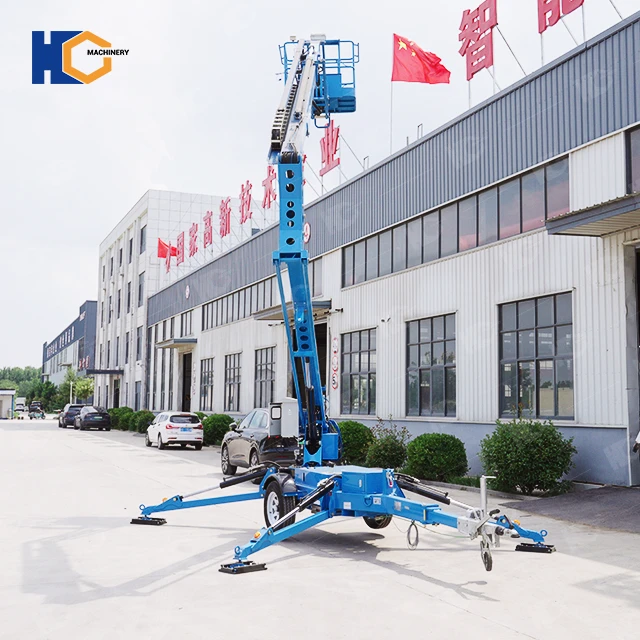

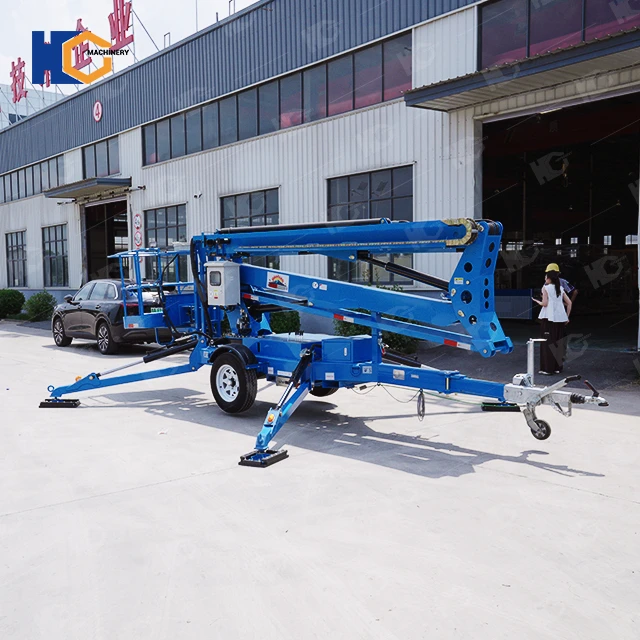

CE Certified 10-22M Trailer Boom Telescopic Spider Man Lift for Construction and Maintenance

Key Features

1. Wide Working Height Range: Available in models with reach heights ranging from 10 meters to 22 meters, accommodating a variety of tasks.
2. Telescopic Boom Technology: Provides horizontal and vertical reach, enabling access to challenging locations and extending operational range.
3. Trailer-Mounted Design: Allows for easy transportation and positioning, making it ideal for multiple job sites or frequent relocations.
4. Stable Spider Legs (Outriggers): Equipped with adjustable spider legs for stability on uneven terrain, ensuring safe operation on various ground surfaces.
5. CE Certification: Complies with European safety standards, guaranteeing safe and reliable performance for construction and maintenance operations.
6. User-Friendly Controls: Intuitive controls allow operators to easily manage lift movement, height adjustments, and outreach.

Specifications Table

Customized platform dimensions and load capacities are available upon request.

Technical Specifications Table

Pricing Table

Prices may vary depending on features, customization, and order quantity.

Intelligent Design for Challenging Access Environments

This trailer-mounted telescopic spider lift is engineered to excel in confined or hard-to-reach workspaces where conventional aerial platforms struggle to operate. Its compact dimensions and thoughtful layout make it an ideal solution for urban, indoor, or obstacle-dense job sites.

Key design features include:

• Hydraulic outriggers with leveling capability: The outrigger system helps stabilize the unit on uneven ground. While automatic leveling functions may vary by model, the design supports safe setup on moderately sloped or irregular surfaces—always in accordance with the operator’s manual and site-specific risk assessment.
• Robust yet lightweight chassis: Built using high-strength steel and finished with a corrosion-resistant coating to enhance durability in demanding environments, contributing to a long service life with proper maintenance.
• Trailer-mounted configuration: Designed for road towing behind appropriately rated vehicles (subject to local regulations and hitch compatibility), enabling convenient transport between locations without requiring flatbed trucks or specialized carriers.
• Reduced tail swing: The turntable and chassis are optimized to minimize rear overhang during rotation, allowing operators to work closer to walls, columns, or adjacent structures with greater spatial awareness and reduced collision risk.

Depending on the specific model, the lift offers a working height range of 10 to 22 meters and a horizontal outreach of up to 13 meters, enabling precise access to elevated or distant work areas—whether installing lighting fixtures in a historic atrium, maintaining façade elements on a narrow street, or servicing equipment in a crowded industrial facility.

Advanced Safety Features Backed by International Certifications

At Huichuang Lift, safety is not an add-on—it’s integrated into every stage of design and manufacturing. Our 10–22M trailer-mounted telescopic spider lift is engineered to meet the highest international safety expectations and is certified under CE, ISO, and ASME A17.1 standards, reflecting our commitment to operator protection and equipment reliability.

The lift incorporates multiple layers of safety systems commonly required for modern aerial work platforms, including:

• Dual-circuit hydraulic system with fail-safe valves to prevent uncontrolled platform descent in the event of a hydraulic line failure.
• Emergency stop controls conveniently located both on the working platform and at the ground-level control panel for immediate shutdown when needed.
• Outrigger deployment interlock that prevents boom operation unless all stabilizing outriggers are fully extended and properly positioned—enhancing stability on uneven or soft ground.
• Platform load monitoring system that alerts operators and restricts movement if the rated capacity (typically 200–230 kg) is exceeded, helping prevent overloading risks.
• Manual emergency lowering mechanism operated via a hand pump, allowing safe platform descent during power outages or system malfunctions.
• Electrically isolated and protected control circuits using components that comply with general machinery safety principles aligned with CE requirements.

All operational controls are designed to be intuitive, ergonomic, and shielded against accidental activation—ensuring confident and precise handling even during complex tasks in challenging environments.

Through rigorous quality control and adherence to globally recognized standards, Huichuang Lift ensures that every unit delivers not only performance but also peace of mind on the job site.

Applications

1. Construction Sites: Ideal for tasks like facade work, window installation, and structure repairs.
2. Building Maintenance: Perfect for cleaning, painting, and routine maintenance of multi-story buildings.
3. Electrical and Lighting Work: Suitable for installation and maintenance of street lights, power lines, and electrical equipment.
4. Tree Pruning and Landscaping: Provides a safe, stable platform for arborists and landscapers working at heights.

Power Options for Every Environment

Understanding that worksites vary widely in power availability, we offer flexible energy solutions:

• Electric Drive (Standard): Powered by maintenance-free lithium-ion or deep-cycle lead-acid batteries (48V system), enabling zero-emission, silent operation—perfect for indoor use, hospitals, museums, or noise-sensitive zones.
• Hybrid/Diesel Option (Available): For extended runtime or remote locations without charging infrastructure, a compact diesel generator can be integrated, maintaining full functionality while retaining CE compliance.

Battery runtime typically supports 6–8 hours of continuous operation, with fast-charging options available to minimize downtime.

Global Support & Reliable After-Sales Partnership

Choosing a Huichuang Lift spider lift means partnering with a manufacturer that stands behind its products long after delivery. We are committed to ensuring your equipment remains safe, operational, and productive throughout its service life.

Our support includes:

• Comprehensive operator guidance, available through detailed documentation, video tutorials, or virtual training sessions covering setup, safe operation, and basic emergency response procedures. On-site training may be arranged through our authorized partners where available.
• Multilingual user manuals (including English, Spanish, French, German, and Arabic) featuring clear illustrations, step-by-step instructions, and troubleshooting tips to support daily use and maintenance.
• Responsive technical assistance via email and phone during business hours, with remote diagnostic support provided when applicable to help resolve operational questions efficiently.
• Global spare parts access: We maintain a centralized spare parts inventory and work closely with our growing network of international agents to facilitate timely delivery of essential components. Availability may vary by region based on local partnership coverage.

At Huichuang Lift, we view every customer relationship as long-term. Our goal is not just to deliver high-quality lifting equipment—but to ensure it continues delivering value, safety, and reliability on your job sites for years to come.

Why Choose This Spider Lift Over Alternatives?

Compared to self-propelled boom lifts or truck-mounted cranes, our trailer-mounted spider lift offers distinct advantages:

Installation and Operation

1. Transport and Positioning: Easily towed to the site and positioned with the trailer, allowing for quick setup.
2. Stabilization: Hydraulic outriggers (spider legs) are deployed for stability, with automatic leveling to adapt to uneven terrain.
3. Operation: Controlled via a user-friendly joystick panel that manages lift height, outreach, and platform rotation.
4. Maintenance and Inspection: Regular checks are recommended for hydraulic and electrical systems, as well as platform and safety controls.

Quality Assurance

1. CE Certification: Compliant with European safety standards, including stability, durability, and control testing.
2. Rigorous Testing: Each lift undergoes load testing, operational checks, and safety inspections before delivery.
3. Durable Materials: Constructed with high-quality steel and weather-resistant coatings to withstand harsh environments.
4. Customer Satisfaction Guarantee: We offer a warranty on parts and labor for manufacturing defects.

Why Choose Our Factory for Trailer Boom Telescopic Spider Man Lifts?

1. Trusted Manufacturer: Years of experience producing reliable, high-quality aerial work platforms.
2. Wide Range of Customization: Available in various heights, power sources, and color options to meet client-specific needs.
3. Competitive Pricing: Factory-direct pricing for cost-effectiveness without compromising on quality.
4. Dedicated Quality Control: Our strict quality control team ensures that every unit meets safety and performance standards.
5. Comprehensive After-Sales Support: We offer technical support, maintenance services, and replacement parts.

After-Sales Service

1. Warranty: Each lift comes with a warranty covering parts and labor against manufacturing defects.
2. Maintenance Packages: Regular maintenance packages are available to ensure optimal performance.
3. 24/7 Customer Support: Our team is available for troubleshooting, support, and service inquiries.
4. Replacement Parts Availability: We provide genuine parts for replacements to maintain the lift’s performance and safety.

Packaging and Transportation

• Secure Packaging: Each lift is packaged in reinforced materials to prevent damage during transport.
• Shipping Options: Available shipping via sea or land, with tracking and delivery assurance.
• Clear Instructions: Detailed user and maintenance manuals are included with each unit.

Conclusion

Our CE Certified 10-22M Trailer Boom Telescopic Spider Man Lift is an excellent choice for construction, maintenance, and outdoor operations that require stable and extended reach. Designed for safety, flexibility, and ease of transport, this lift provides reliable support for various elevated tasks. Contact us today to discuss your specific needs, receive a quote, or learn more about how our high-quality aerial work platforms can benefit your projects.
