HC Innovative Wheelchair Lift in Mexico

Model: Wheelchair Lift
Brand: HUICHUANG(JNHC lift)
Customization: YES
Payment Methods: TT
Price: $2,400 – $6,500
Delivery time: 15 working days

+8615628811021

admin@jnhclift.com

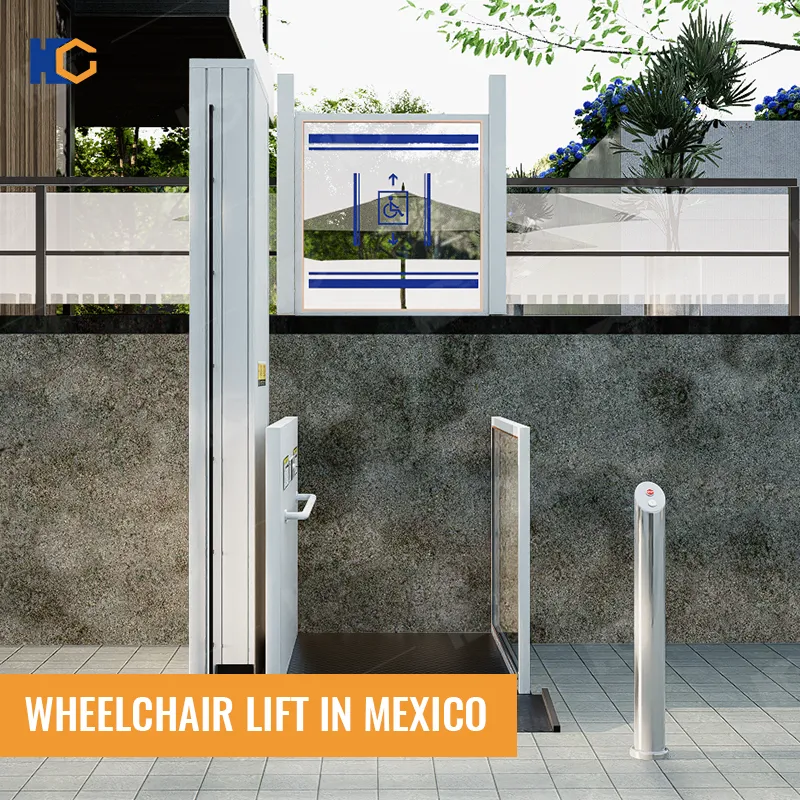

HC’s Innovative Wheelchair Lift in Mexico is designed to provide enhanced accessibility and convenience for individuals with mobility challenges. This hydraulic vertical platform lift combines proven engineering with user-centric features to ensure smooth and safe vertical transportation in various environments. Ideal for both residential and commercial spaces, it delivers a practical, cost-effective solution for inclusive building design.

Introduction

Universal accessibility has become a fundamental requirement for modern construction and renovation projects worldwide. Wheelchair lifts, also known as vertical platform lifts, serve as compact, space-saving alternatives to traditional elevators and ramps, enabling wheelchair users and people with mobility limitations to move between different floor levels safely and independently.

In Mexico, as accessibility regulations develop and public awareness of inclusive design grows, demand for reliable, high-quality wheelchair lift solutions has increased steadily across residential, commercial and public sectors. HC (Huichuang Lift), a professional lifting equipment manufacturer from China, supplies durable wheelchair lifts engineered for safety and ease of use, supporting accessibility projects throughout Mexico and global markets.

What Is a Vertical Platform Wheelchair Lift?

A wheelchair lift is a self-contained vertical lifting device with a flat platform that carries a wheelchair user between two or more floor levels. Unlike accessibility ramps, which require long horizontal space, wheelchair lifts occupy a compact footprint and can be installed against walls, in stairwells or inside custom shafts.

HC’s wheelchair lifts operate on a hydraulic drive system, which delivers smooth, controlled lifting motion with high load capacity. Each unit includes protective guardrails, entry gates and multiple safety sensors. They are suitable for private homes, office buildings, retail spaces, healthcare facilities and public buildings, helping property owners meet accessibility standards.

Six Core Advantages of HC Wheelchair Lifts

HC’s wheelchair lift platform is engineered around six key strengths that address the most common requirements of accessibility projects.

No Civil Work Required
The unit can be fixed directly onto a solid concrete floor (minimum 200mm thickness) without a deep pit or major structural modification, reducing installation time and civil engineering costs. A shallow 100mm pit option is also available for a flush floor finish.
Multi-Layer Safety Protection
Full-cycle safety systems include bottom obstacle sensors, anti-slip platform surfaces, dual-position emergency stop buttons and mechanical manual lowering for power failures. Optional safety light curtains and pressure-sensitive edges are available for high-traffic public installations.
One-Key Dual Control System
Intuitive one-button operation is available from both the ground control station and platform panel. Remote control is also provided. The simple control logic requires minimal training for elderly users, caregivers and facility staff.
Wide Anti-Slip Platform

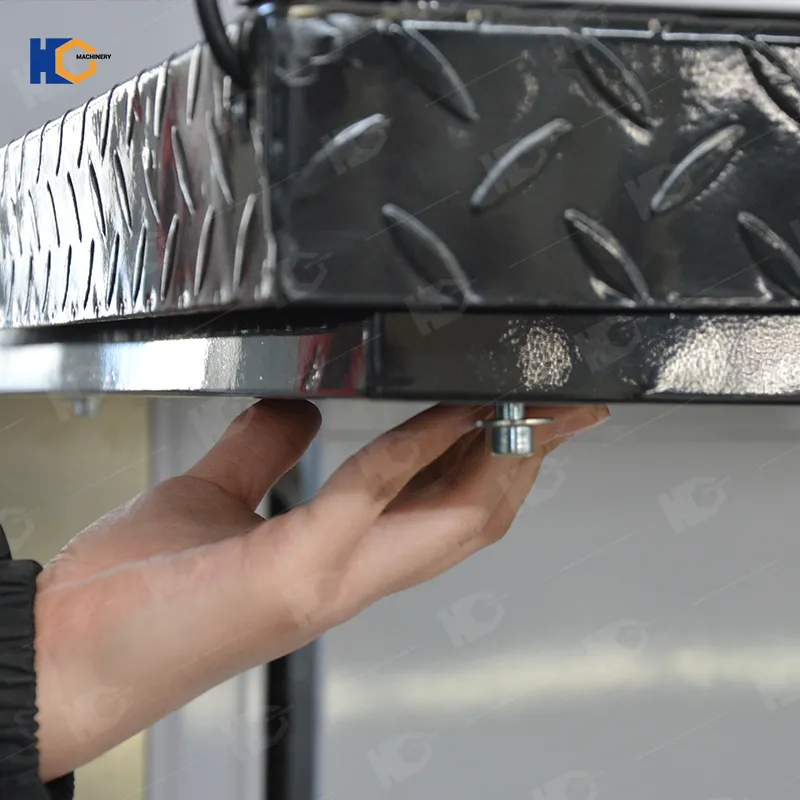

The textured stainless steel platform provides secure traction for wheelchair wheels even in damp conditions. The standard 1430×1000mm platform fits most manual and electric wheelchairs, with an automatic hinged entry ramp for smooth access. Sizes up to 1500×1500mm are available on request.
Weatherproof & Rustproof Construction
All metal surfaces receive corrosion-resistant treatment, including powder coated aluminum panels and stainless steel control enclosures. Rated for operating temperatures from -20°C to 60°C, the lift performs reliably in both indoor and outdoor environments.
Standard International Certification
All HC wheelchair lifts are CE certified and manufactured under strict quality control protocols. Full testing is conducted before shipment, simplifying customs clearance and helping buyers meet local regulatory requirements.

Designed for long-term daily operation, this lift model balances functional performance, aesthetic appearance and total cost of ownership, making it a cost-effective choice for both single residential installations and large-scale commercial accessibility projects. Its modular design also simplifies later component replacement and upgrade, further extending the equipment’s service life.

Technical Specifications

All core dimensional parameters follow standard production specifications, with full customization available for project-specific needs.

Parameter	Standard Specification	Customization Options
Model	HC-100 Hydraulic Wheelchair Lift	Custom configurations available
Platform Size	1430 × 1000 mm	Expandable up to 1500 × 1500 mm
Lifting Height	Up to 10 meters	Tailored for 1 to 6 floor applications
Rated Load Capacity	Up to 400 kg	Custom load ratings available
Lifting Speed	6 – 8 meters per minute	Adjustable based on height
Entry & Exit	Same side, 90°, 180°	Configurable to site layout

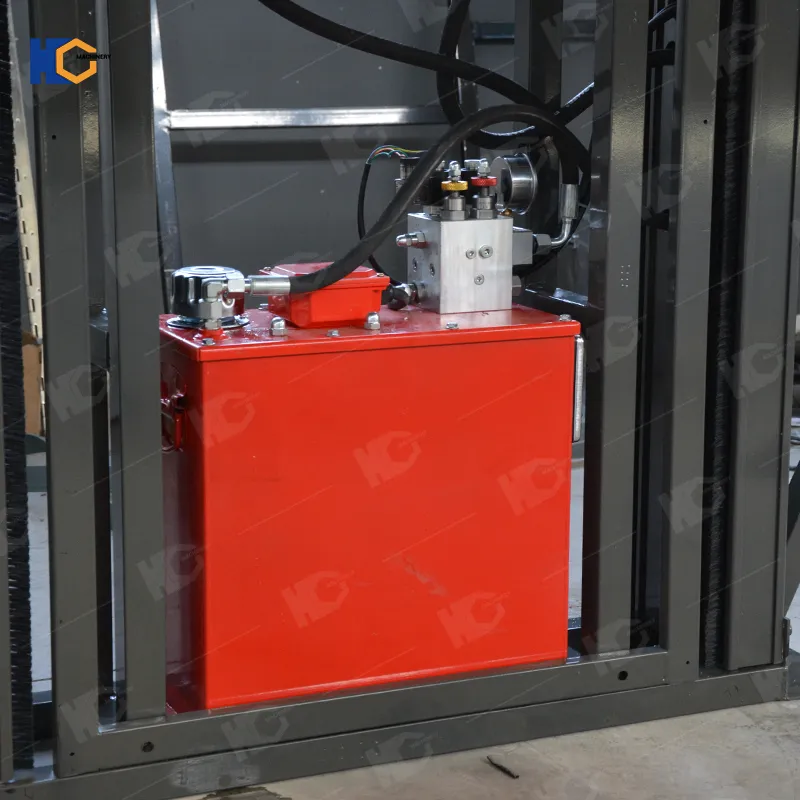

Drive System	Hydraulic power unit system	Traction drive for taller heights
Power Supply	Single phase, 220V / 50Hz	Custom voltage and frequency
Control Method	Button control + remote control	Voice / touchscreen upgrades
Overload Protection	Over current relay control	Weighing sensor options
Operating Temperature	-20°C to 60°C	Climate-specific packages
Installation	Direct floor mounting, no pit required	100mm shallow pit option
Certification	CE certified	Additional certification support

Beyond standard configurations, our engineering team can adjust platform load, lifting stroke and control logic according to specific site conditions and project requirements, ensuring each lift fits the actual usage scenario perfectly. All custom modifications follow the same strict safety and quality standards as standard models.

Installation Flexibility

The freestanding lift can be installed against any load-bearing wall or inside a dedicated shaft, and works with concrete floors, steel structures and glass shaft enclosures. Entry and exit directions can be configured to fit unusual floor plans and tight spaces. Its compact footprint also allows installation in hallways, lobbies and stairwell landings where full-size elevators would not fit.

Why Choose HUICHUANG as Your Wheelchair Lift Supplier?

Working directly with an experienced manufacturer brings clear advantages in price, quality, customization and after-sales support.

Direct Factory & Integrated Manufacturing

HC is an integrated enterprise combining independent R&D, in-house production, direct sales and after-sales service. Modern workshops and skilled technical teams oversee every step from raw material processing to final testing, ensuring strict quality control and stable delivery capacity.

Factory-Direct Pricing

Purchasing directly from our factory eliminates multiple distributor markups, typically delivering 20%–35% cost savings compared to local middlemen. Additional volume discounts apply for bulk orders and OEM projects, making our lifts highly competitive for distributors and large construction projects.

Full Customization & OEM/ODM Support

We offer comprehensive customization including adjustable platform sizes, custom lifting heights, finish colors, branded control panels and custom packaging. Full OEM and ODM services are available for distributors and brand partners, including private labeling and tailored technical specifications.

Reliable After-Sales Support

All wheelchair lifts come with a 12-month warranty covering major components. We supply genuine spare parts directly from the factory with fast international shipping to minimize downtime. Our technical team provides remote installation guidance, troubleshooting support and maintenance training to help local partners service equipment efficiently.

For partners in the Mexican market, we keep commonly used spare parts in our export warehouse to shorten delivery lead times, and can provide Spanish-language operation manuals and installation guidance materials upon request to support local end users.

Proven Export Experience

With years of export experience across North America, Latin America, Europe and other regions, HC is familiar with international shipping procedures, customs documentation and certification requirements. We support FOB, CIF and door-to-door delivery terms, and provide full English documentation including operation manuals and certification certificates.

Common Application Scenarios

HC wheelchair lifts serve a broad range of use cases:

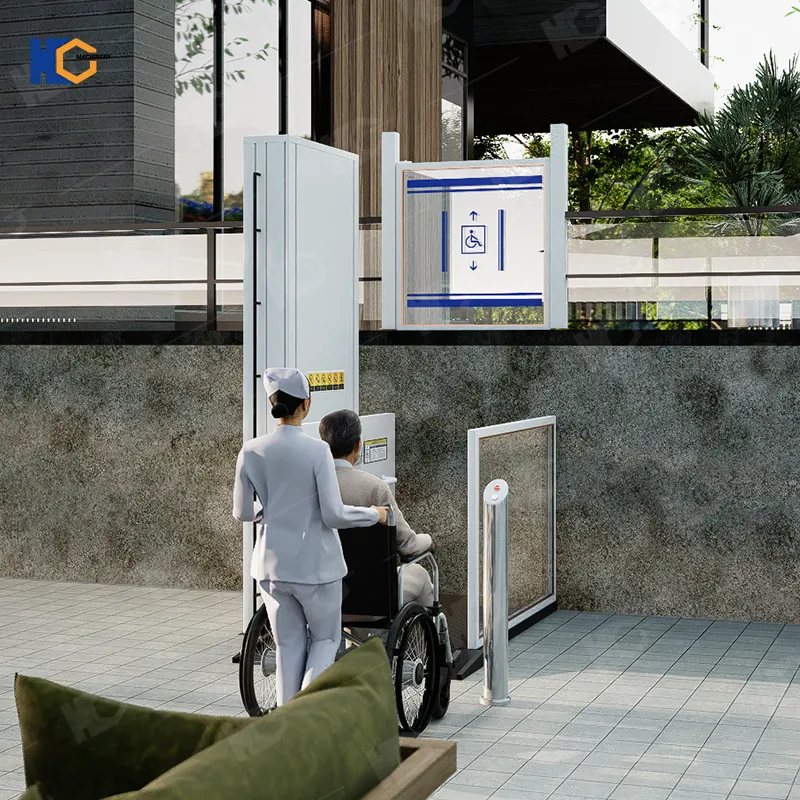

Residential homes & villas: Enable independent floor access for elderly and wheelchair users, with quiet operation and clean home-friendly aesthetics.
Commercial & office buildings: Meet accessibility requirements for employees and customers across retail, office and hospitality venues.
Healthcare & senior care: Support safe patient and resident transport in hospitals, clinics and nursing homes.
Public & institutional buildings: Ensure inclusive access in schools, government offices, cultural centers and places of worship.

All lifts can be configured with matching decorative panels and color options to blend with the interior or exterior design of the building, avoiding an obtrusive industrial look while maintaining full functional performance.

Conclusion

HC’s hydraulic wheelchair lift delivers a reliable, cost-effective vertical accessibility solution, combining robust construction, comprehensive safety features and flexible installation options. Engineered for long-term performance and low maintenance, it is well suited for residential, commercial and public accessibility projects throughout Mexico.

As a direct-from-factory manufacturer, HC offers competitive pricing, full customization, reliable export logistics and dedicated after-sales support, making us a trusted long-term partner for distributors, contractors and project owners.

If you are looking for a dependable wheelchair lift supplier for the Mexican market, welcome to contact HC for detailed specifications, project quotations and sample information.
