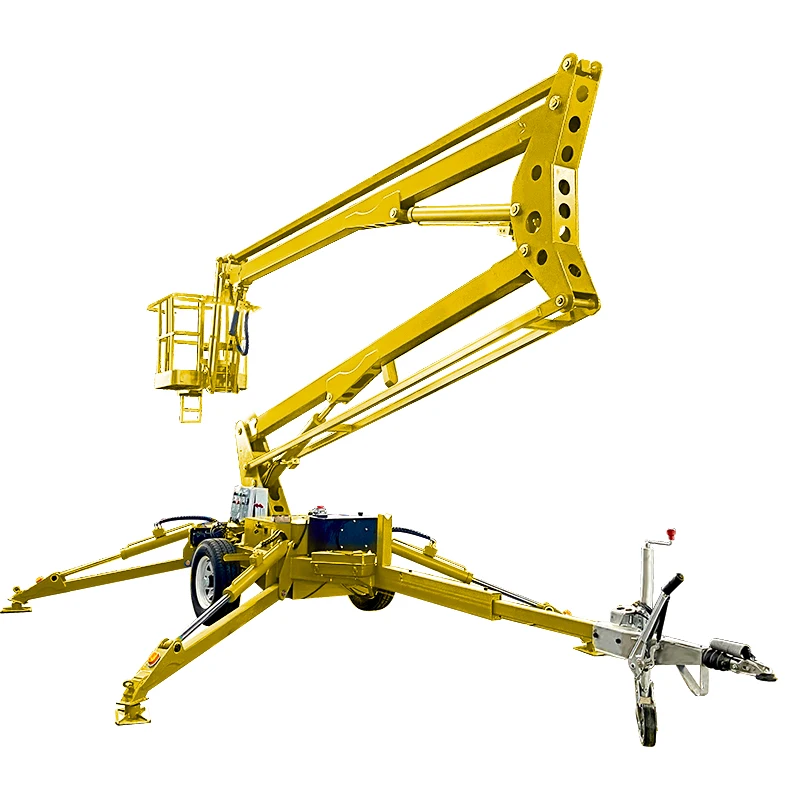

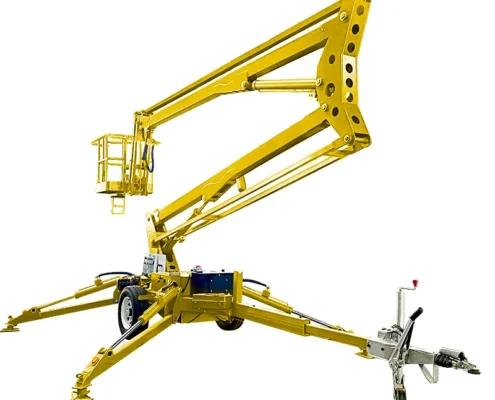

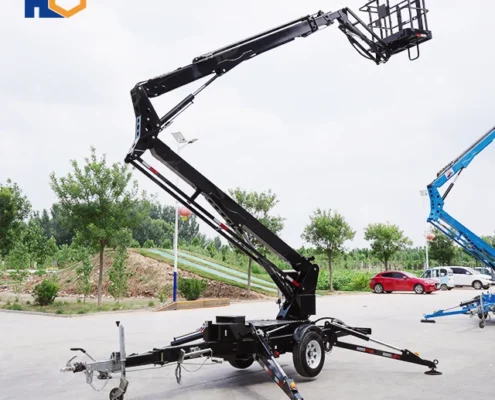

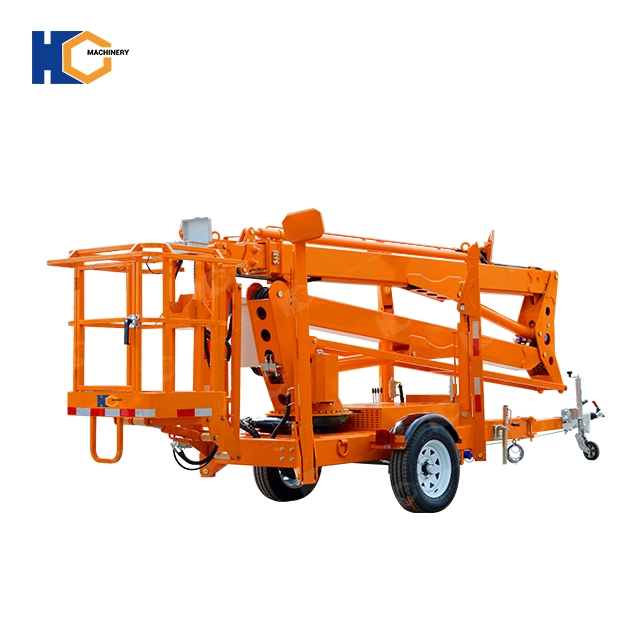

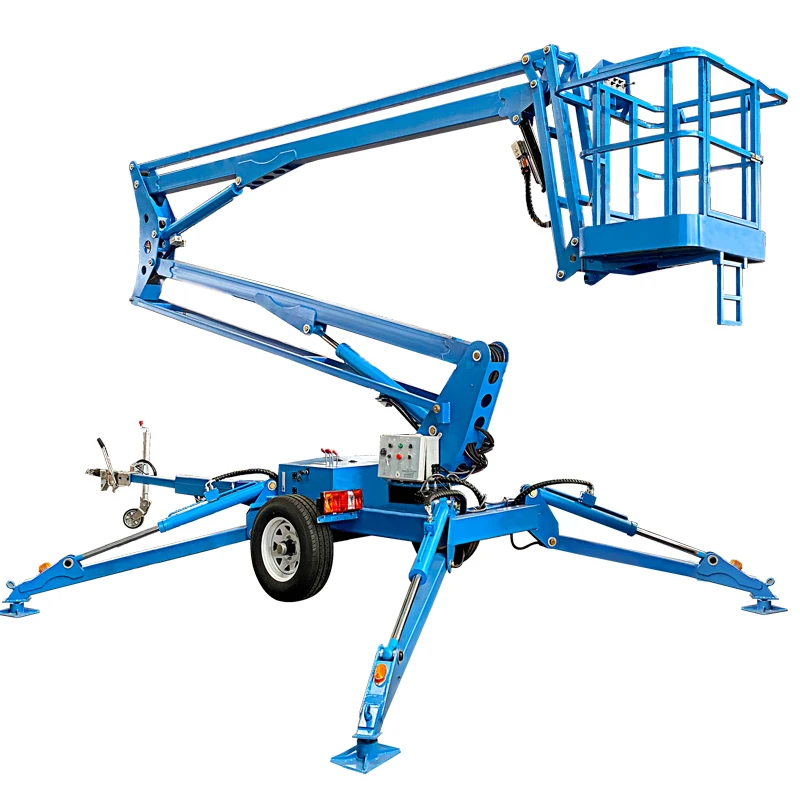

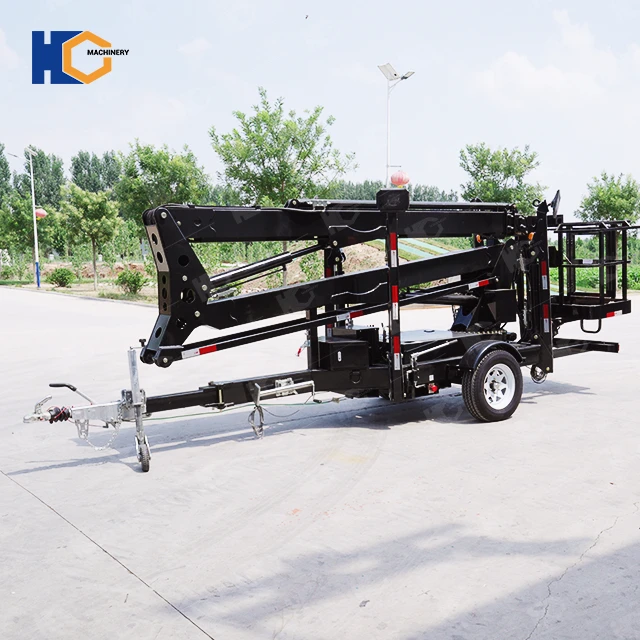

Trailer Mounted Boom Lift Cherry Picker

Model: Hydraulic telescopic towable boom lift
Lift height: 10-20m
Work height: 12-22m
Load capacity: 200 kg
Price: $8,200 – $24,000
Brand: HUICHUANG(JNHC lift)
Customization: YES
Manual: YES

+8615628811021

admin@jnhclift.com

What Is a Trailer Mounted Boom Lift Cherry Picker?

A trailer mounted boom lift, also widely known as a cherry picker, is a highly flexible aerial work platform mounted on a towable chassis. Unlike fixed lifting equipment or self-propelled units that require dedicated transport vehicles, it can be towed behind a standard pickup truck or light commercial vehicle to different job sites quickly. Once on site, operators only need to deploy the hydraulic outriggers, level the platform, and the equipment is ready for operation.

Key characteristics include:

Towable design for easy transportation

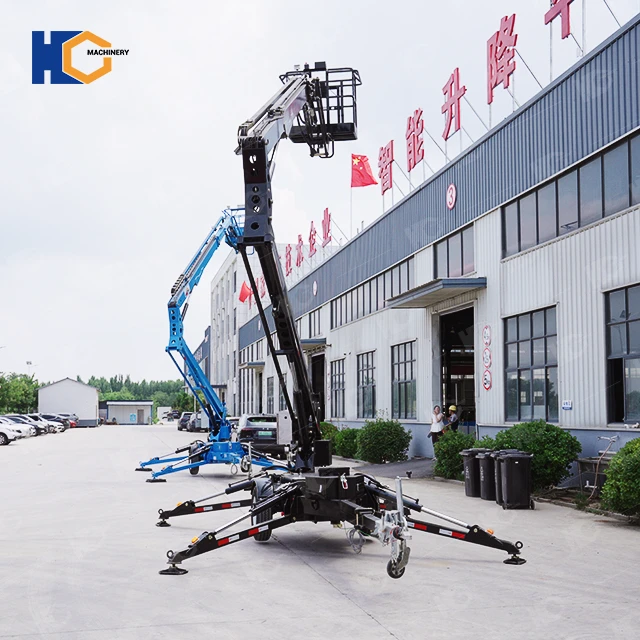

Stable outrigger system
Long horizontal outreach
Lower purchase and maintenance cost compared to truck-mounted lifts

These advantages make trailer mounted cherry pickers especially popular for maintenance, installation, landscaping, utilities, and rental fleets.

This guide covers the full model lineup, core material technology, specification interpretation, safety design and application scenarios of HUICHUANG trailer mounted boom lifts, to help you select the most suitable configuration for your project.

For multi-site operation teams and equipment rental businesses, it is an ideal cost-effective solution that balances portability and working performance.

Premium Material & Precision Engineering for Long-Term Durability

The reliability and service life of a boom lift are fundamentally determined by its structural materials and manufacturing processes. Our trailer mounted boom lifts are meticulously engineered to meet international high-altitude operation standards, integrating high-grade structural materials, mature surface treatment technology and stable control systems.

The boom arm is forged from Q700 high-strength manganese steel, which delivers exceptional tensile strength and fatigue resistance. This material can maintain stable load-bearing performance even under long-term frequent lifting, telescopic and rotating operations, as well as harsh outdoor working conditions. The entire machine body adopts electrophoretic coating treatment, which forms a dense, uniform anti-rust layer on the metal surface. This process effectively resists rain corrosion, UV damage and daily wear, extending the equipment’s service life while maintaining a neat, premium appearance for years.

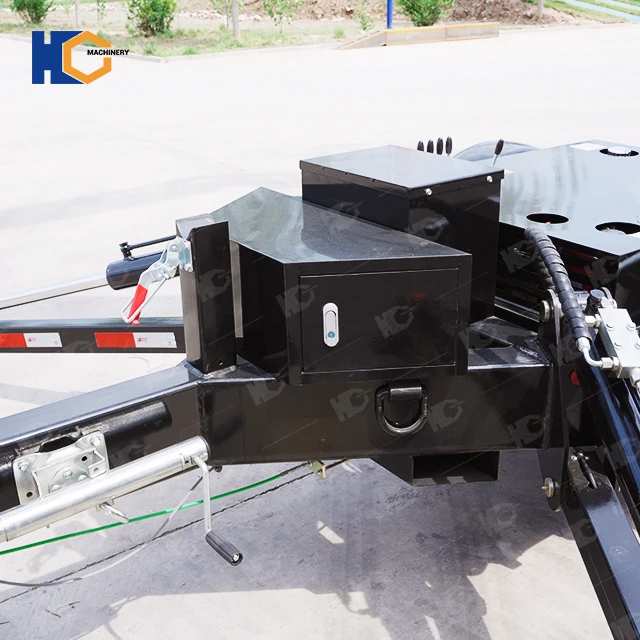

For transportation safety, the equipment is fitted with a German-imported AL-KO tow hook as standard, which complies with global traction safety standards and ensures secure, stable connection during highway towing. The industrial-grade PLC control system enables precise, smooth lifting, telescoping and rotating movements, with built-in travel limit programs to prevent misoperation. The 360° rotating turntable allows full-range operation without repositioning the entire machine, greatly improving work efficiency for large-area tasks such as facade maintenance and signage installation.

Full Model Range & Technical Specifications

We offer a complete lineup of trailer mounted boom lifts from 10m to 22m working height, covering light residential maintenance to heavy-duty industrial projects. All models share the same high-standard material and safety configuration, with differences in lifting height, working radius and overall dimensions to match different site requirements.

HCZB-10-200

Platform Height: 10 m
Working Height: 12 m
Overall Dimensions: 6300 × 1680 × 2100 mm
Platform Size: 900 × 700 mm
Machine Weight: 1.7 T
Working Radius: 5.5 m
Load Capacity: 200 kg

This is a compact and lightweight cherry picker, ideal for light maintenance work, signage installation, and residential projects. Its low weight makes towing easier and reduces ground pressure on soft surfaces.

HCZB-12-200

Platform Height: 12 m
Working Height: 14 m
Overall Dimensions: 7300 × 1680 × 2100 mm
Platform Size: 900 × 700 mm
Machine Weight: 2 T
Working Radius: 6.5 m
Load Capacity: 200 kg

This model offers more height and outreach while remaining compact. It is commonly used for building exterior maintenance, lighting installation, and tree trimming.

HCZB-12-200A (With Telescopic Boom)

Platform Height: 12 m
Working Height: 14 m
Overall Dimensions: 5800 × 1680 × 2100 mm
Platform Size: 900 × 700 mm
Machine Weight: 2.1 T
Working Radius: 7.8 m
Load Capacity: 200 kg

The telescopic boom significantly increases horizontal reach. This is especially useful when obstacles prevent the machine from being positioned directly under the work area.

HCZB-14-200

Platform Height: 14 m
Working Height: 16 m
Overall Dimensions: 6800 × 1680 × 2100 mm
Platform Size: 900 × 700 mm
Machine Weight: 2.4 T
Working Radius: 8.5 m
Load Capacity: 200 kg

This model strikes a strong balance between height and outreach, making it a popular choice for industrial maintenance, warehouse exterior work, and municipal projects.

HCZB-16-200

Platform Height: 16 m
Working Height: 18 m
Overall Dimensions: 6900 × 1680 × 2200 mm
Platform Size: 900 × 700 mm
Machine Weight: 2.6 T
Working Radius: 10.5 m
Load Capacity: 200 kg

With a working radius exceeding 10 meters, this cherry picker allows operators to reach over roofs, fences, and equipment without repositioning.

HCZB-18-200

Platform Height: 18 m
Working Height: 20 m
Overall Dimensions: 7600 × 1800 × 2250 mm
Platform Size: 900 × 700 mm
Machine Weight: 4.3 T
Working Radius: 11 m
Load Capacity: 200 kg

This is a heavy-duty trailer mounted boom lift designed for large-scale outdoor operations, including industrial plants, stadiums, and infrastructure maintenance.

HCZB-18-200A (With Telescopic Boom)

Platform Height: 18 m
Working Height: 20 m
Overall Dimensions: 6600 × 1800 × 2250 mm
Platform Size: 900 × 700 mm
Machine Weight: 4.1 T
Working Radius: 10.5 m
Load Capacity: 200 kg

This telescopic version provides strong outreach while maintaining a more compact transport length.

HCZB-20-200

Platform Height: 19.8 m
Working Height: 22 m
Overall Dimensions: 6900 × 1900 × 2250 mm
Platform Size: 900 × 700 mm
Machine Weight: 4.5 T
Working Radius: 11 m
Load Capacity: 200 kg

This is the tallest standard model in the lineup, designed for high-rise exterior maintenance, large signage installation, and utility line work.

Understanding Core Specifications for Practical Use

Clear understanding of parameter meanings is the premise of accurate model selection, which can effectively avoid over-purchase or insufficient configuration.

Many buyers only pay attention to lifting height when selecting a cherry picker, but in actual work, multiple parameters together determine operational efficiency and safety.

Working Height vs. Platform Height

Working height is typically calculated as platform height plus the average standing reach of an operator. For actual safety planning and project evaluation, working height is the more meaningful reference indicator. For example, a 14m platform height model corresponds to a 16m working height, which can meet the maintenance needs of most 4–5 story buildings.

Working Radius

The working radius determines how far the operator can reach horizontally from the center of the machine. A larger radius means fewer position adjustments during work, which saves on-site preparation time and improves efficiency. For projects with many ground obstacles, a telescopic boom model with larger outreach is more cost-effective.

Machine Weight

Machine weight affects:

Towing vehicle requirements
Ground bearing pressure
Transportation cost

Lightweight models are better for residential and landscaped areas, while heavier models provide greater stability at higher working heights.

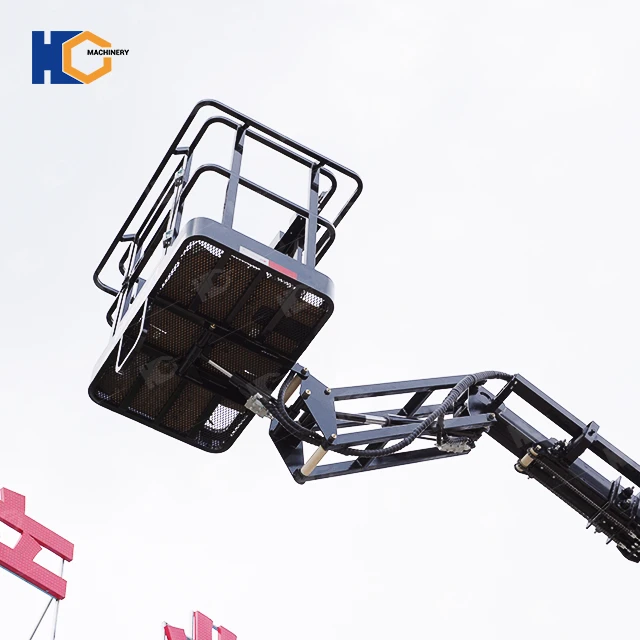

Standard Platform Configuration

The standard platform size of 900 × 700 mm comfortably accommodates one operator with tools. For special applications, the platform size can be expanded up to 1300 × 700 mm.

Optional features include:

Rotating work platform
Anti-slip flooring
Tool trays

Power Systems & Customization Options

To adapt to different working environments, our trailer mounted boom lifts support multiple power configurations:

AC electric power: Quiet, zero-emission operation, suitable for indoor work and noise-sensitive residential areas
Diesel / petrol engine: Strong power and long continuous operation time, ideal for outdoor construction sites without power supply
DC battery power (customized): Flexible for short-distance outdoor work with no power access
Dual-power configuration: Allows seamless switching between power sources, adapting to both indoor and outdoor work scenarios

We also provide a variety of practical customization options to improve on-site convenience:

Assisted walking device for easy short-distance positioning on site

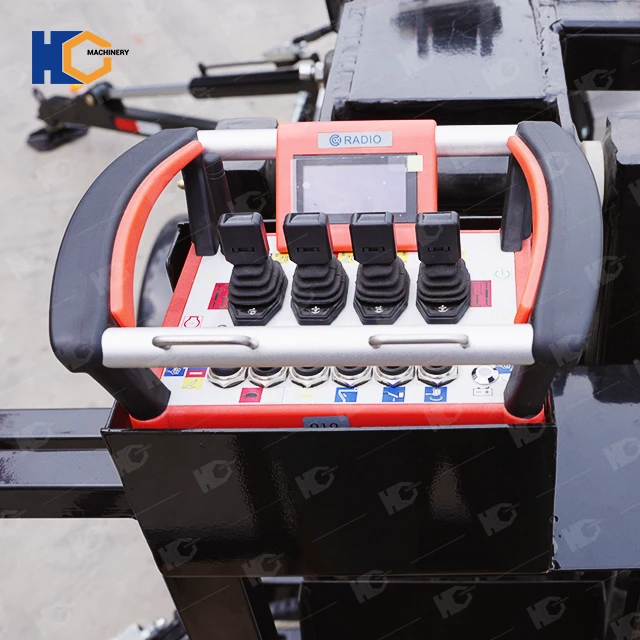

Wireless remote control operation for boom lifting and rotating
One-key automatic leveling system for faster outrigger setup
Increased load capacity up to 300 kg for heavy tool carrying needs
Rotating work platform for more flexible operation angles

All custom schemes will be professionally verified before production to ensure full compatibility with the original system and no impact on equipment safety performance.

Comprehensive Safety Protection Systems

Safety is always the primary design principle for aerial work equipment. Our trailer mounted boom lifts integrate multi-layer safety protection mechanisms to ensure stable and safe operation even at maximum working height.

Safety features typically include:

Hydraulic outriggers with leveling sensors
Emergency lowering system
Overload protection
Limit switches for boom movement

These systems work together to ensure stable and safe operation even at maximum working height.

Typical Applications & Scenario-Based Recommendations

Thanks to its flexible mobility and wide height coverage, the trailer mounted boom lift is suitable for a wide range of industries and work scenarios:

Building facade maintenance: For exterior wall cleaning, window repair and coating work, 12m–16m models are the most widely used
Municipal & utility work: For streetlight installation and repair, traffic signal maintenance and overhead line inspection, 14m–18m models are recommended
Landscaping & arboriculture: For tree pruning and landscape maintenance, 10m–14m lightweight models cause less damage to lawns
Advertising & signage installation: For billboard and luminous character installation, telescopic boom models with large outreach are preferred
Warehouse & industrial maintenance: For exterior equipment repair and high-bay lighting maintenance, medium and heavy-duty models provide higher stability
Equipment rental business: The full series has strong universality and low maintenance cost, making it a high-return asset for rental fleets

Why Choose a Trailer Mounted Boom Lift Instead of Other Types?

Compared with scissor lifts, cherry pickers offer horizontal outreach. Compared with truck-mounted lifts, they are more affordable and easier to maintain.For businesses that need flexibility without heavy investment, trailer mounted boom lifts provide a practical balance.If you would like to learn about the differences between the two, you can read our previous articles.

Scissor lift vs boom lift pros and cons

Compared with truck-mounted boom lifts, trailer mounted models have much lower purchase and maintenance costs, and do not require a dedicated heavy-duty vehicle chassis. For small and medium-sized enterprises and rental companies that need flexible multi-site operation without heavy upfront investment, trailer mounted boom lifts provide a very cost-effective balance of performance and cost.

Quick Tips for Selecting the Right Model

When selecting a trailer mounted boom lift, you can judge from four core dimensions: first, confirm the maximum working height required for the project, and leave an appropriate safety margin; second, evaluate whether there are ground obstacles, and select a model with sufficient working radius; third, choose the appropriate power type according to the main working environment (indoor or outdoor); fourth, check the towing vehicle capacity and site road conditions to ensure smooth transportation and entry.

Final Thoughts

A high-quality trailer mounted boom lift cherry picker is not only defined by its lifting height, but also by how its material technology, parameter configuration and safety design support actual work scenarios. From compact 10-meter light models to 22-meter high-reach heavy-duty models, each configuration is designed to improve on-site safety, work efficiency and long-term cost control.

As a professional aerial work platform manufacturer in China, HUICHUANG provides CE-certified trailer mounted boom lifts with factory direct supply and full customization support. If you have specific project requirements or need help selecting the right model, feel free to contact our technical team for a tailored solution.
