Hydraulic Home Elevator for Residential Use

This guide provides a fully structured and detailed overview of hydraulic home elevators for residential use—covering how they work, their advantages, technical specifications, applications, comparisons, and practical procurement advice. By the end, you will have a clear and confident understanding of whether this system is right for your project.

What Is a Hydraulic Home Elevator?

A hydraulic home elevator is a residential lift system that uses liquid pressure to move the elevator car vertically. Unlike traction elevators that rely on cables and counterweights, hydraulic systems use a piston-driven mechanism.

How It Works

The system operates through three main components:

• A hydraulic pump
• A fluid reservoir
• A cylinder and piston

When the elevator is activated, the pump pushes hydraulic oil into the cylinder, forcing the piston upward and lifting the cabin. To descend, the system gradually releases the fluid back into the tank, allowing a smooth and controlled lowering process.

This design results in stable, quiet, and vibration-free movement, making it particularly suitable for residential environments.

Why Hydraulic Elevators Are Ideal for Homes

Hydraulic elevators are widely used in low-rise residential buildings (typically 2–5 floors) due to their balance of performance, cost, and reliability.

Smooth and Quiet Operation

One of the biggest advantages is the exceptionally smooth ride quality. The hydraulic mechanism ensures gentle starts and stops, which is especially beneficial for elderly users or families with children.

Strong Load Capacity

Hydraulic systems can easily handle heavier loads compared to many other residential elevator types. Typical capacities range from:

• 250 kg for small households
• Up to 400–500 kg for larger families or wheelchair access

High Reliability

With fewer moving parts than traction systems, hydraulic elevators are known for:

• Stable performance
• Lower mechanical wear
• Long service life

Flexible Installation

Hydraulic elevators offer more installation flexibility because the machine room can be placed nearby, rather than above the shaft. This makes them suitable for both:

• New construction projects
• Existing home retrofits

Enhanced Safety

Safety is a major strength of hydraulic systems. The cabin is supported by the piston at all times, and in the event of power failure, the elevator can safely descend using controlled pressure release.

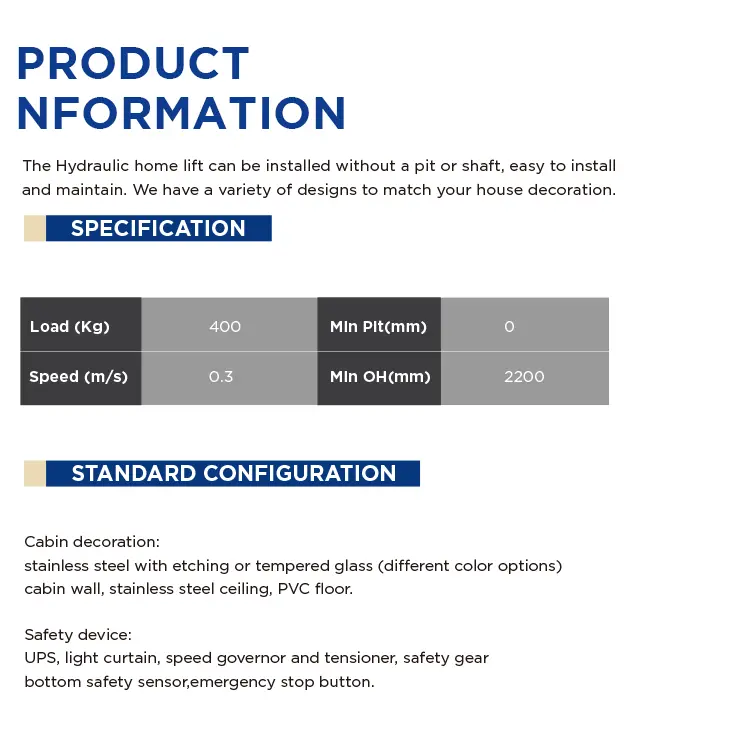

Technical Specifications Overview

Hydraulic home elevators are designed specifically for residential use, with parameters tailored for comfort and practicality.

These specifications make hydraulic elevators ideal for low-rise buildings where high speed is not required but stability is critical.

Types of Hydraulic Home Elevators

Understanding the different configurations helps in selecting the right system.

Holed Hydraulic Elevator

This traditional design uses a piston installed below ground level. It offers excellent stability but requires deeper construction work.

Holeless Hydraulic Elevator

A modern alternative that eliminates underground drilling. It is easier to install and well-suited for existing homes.

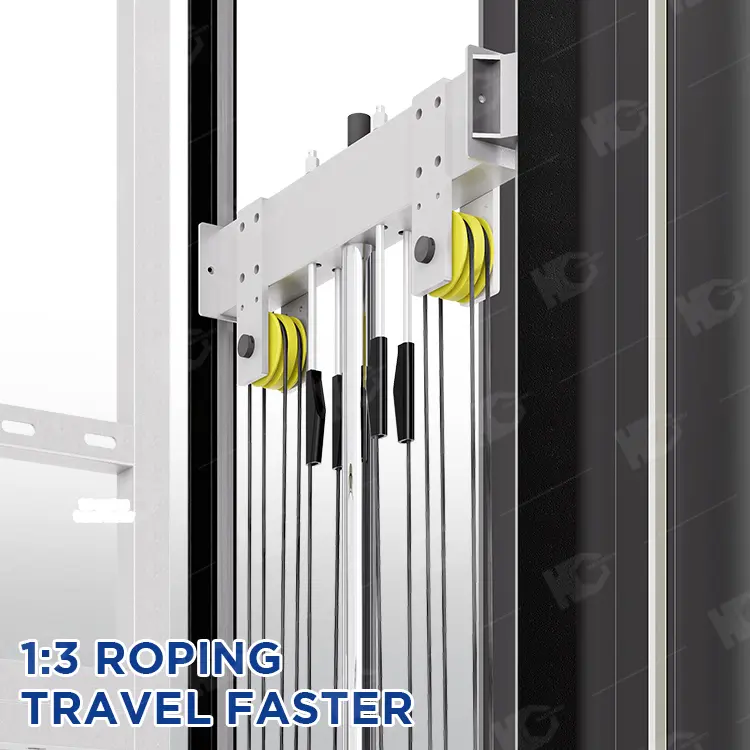

Roped Hydraulic Elevator

Combines hydraulic power with a rope system, allowing for slightly greater travel heights.

Machine Room vs Compact Systems

• Traditional systems require a dedicated machine room
• Newer designs reduce space requirements with compact power units

Main Components Explained

A hydraulic home elevator consists of several key components:

Hydraulic Power Unit

Drives the system by pumping fluid into the cylinder.

Cylinder and Piston

The core lifting mechanism responsible for vertical movement.

Elevator Cabin

The passenger area, which can be customized in terms of size, material, and design.

Control System

Manages operation, safety functions, and floor positioning.

Guide Rails

Ensure smooth and stable vertical travel.

Applications in Residential Settings

Hydraulic home elevators are versatile and can be used in a variety of residential scenarios.

Private Villas

Enhance luxury living while improving convenience.

Multi-Story Houses

Provide effortless access between floors, especially for daily use.

Homes with Elderly or Disabled Residents

Improve mobility and independence while reducing the risk of accidents.

Renovation Projects

Ideal for upgrading existing homes without major structural changes.

Small Residential Buildings

Suitable for low-rise apartments or shared housing.

Comparison with Other Elevator Types

Hydraulic vs Traction Elevators

Hydraulic elevators are more practical for residential use, while traction systems are better for commercial or tall buildings.

Hydraulic vs Pneumatic Elevators

Pneumatic elevators are space-saving, but hydraulic systems offer better strength and long-term reliability.

Space and Installation Requirements

Before purchasing, it’s important to evaluate installation conditions.

Key Requirements:

• Elevator shaft (hoistway)
• Pit depth of approximately 150–200 mm
• Machine room or compact unit space
• Stable power supply

Hydraulic elevators generally require more preparation than compact lift systems but deliver superior performance in return.

Safety Features

Modern hydraulic home elevators are equipped with advanced safety systems:

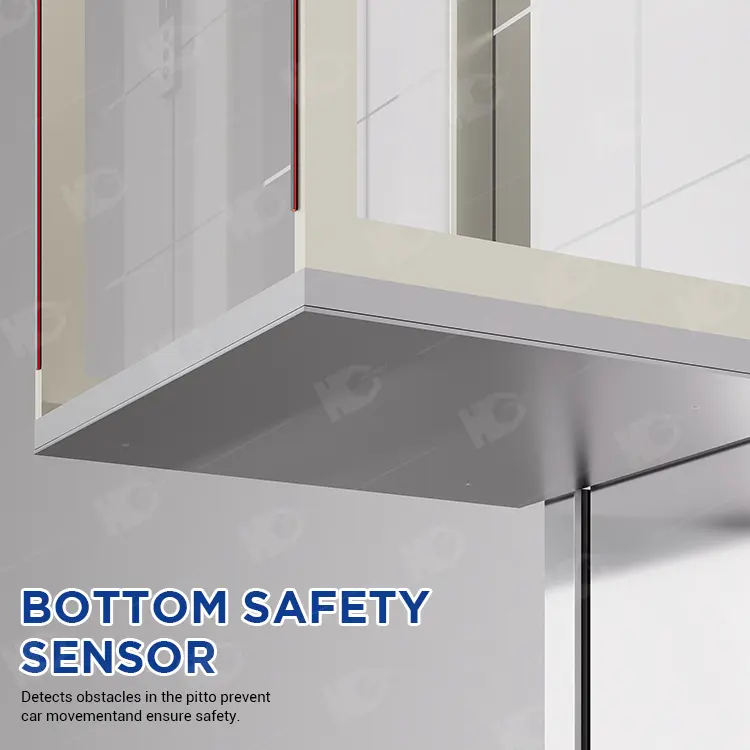

• Emergency stop button
• Overload protection

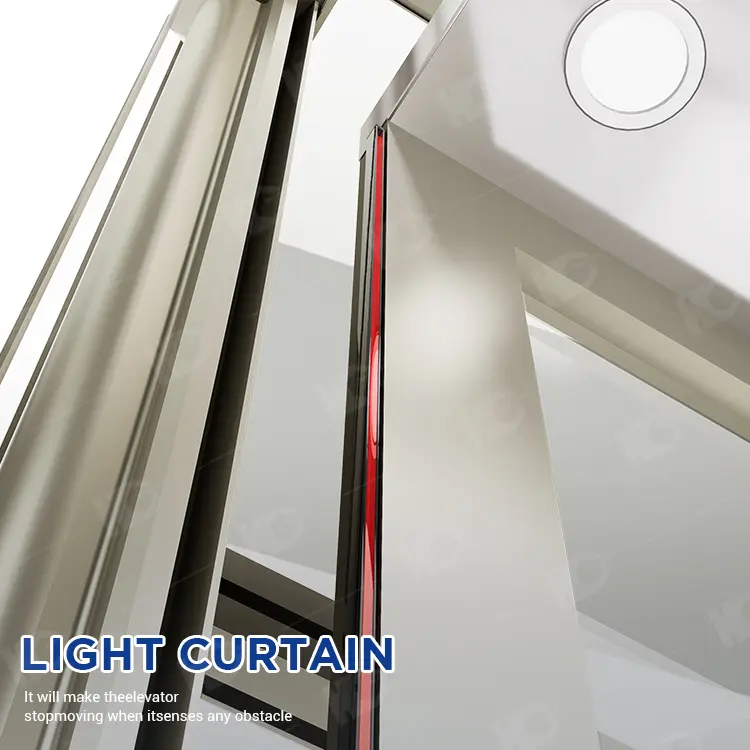

• Door interlock system
• Automatic leveling
• Power failure emergency lowering
• Alarm system

These features ensure safe and reliable operation for all users.

Cost Breakdown

The price of a hydraulic home elevator depends on multiple factors.

Main Cost Factors:

• Number of floors
• Load capacity
• Cabin size and materials
• Customization level
• Installation complexity

Typical Price Range:

• Basic models: $15,000 – $25,000
• Standard systems: $25,000 – $50,000
• Luxury designs: $50,000+

Additional costs may include civil works, electrical installation, and maintenance.

Maintenance and Lifespan

Maintenance Needs:

• Regular inspection of hydraulic oil
• Checking seals and valves
• Routine system testing

Lifespan:

Hydraulic elevators typically last 15–25 years, making them a long-term investment.

Advantages and Limitations

Advantages:

• Smooth and quiet operation
• Strong load capacity
• High safety level
• Cost-effective for residential use
• Durable and reliable

Limitations:

• Requires installation space
• Slower than traction elevators
• Needs periodic maintenance
• Potential risk of oil leakage (rare with modern systems)

How to Choose the Right Hydraulic Home Elevator

Step 1: Define Your Needs

Consider:

• Number of users
• Floors to be served
• Special requirements (wheelchair access, etc.)

Step 2: Evaluate Space

Ensure your home can accommodate:

• Shaft dimensions
• Machine room or compact system

Step 3: Select Appropriate Capacity

Choose based on usage:

• 250 kg → small households
• 400–500 kg → larger families

Step 4: Check Safety Features

Prioritize models with:

• Backup systems
• Emergency controls

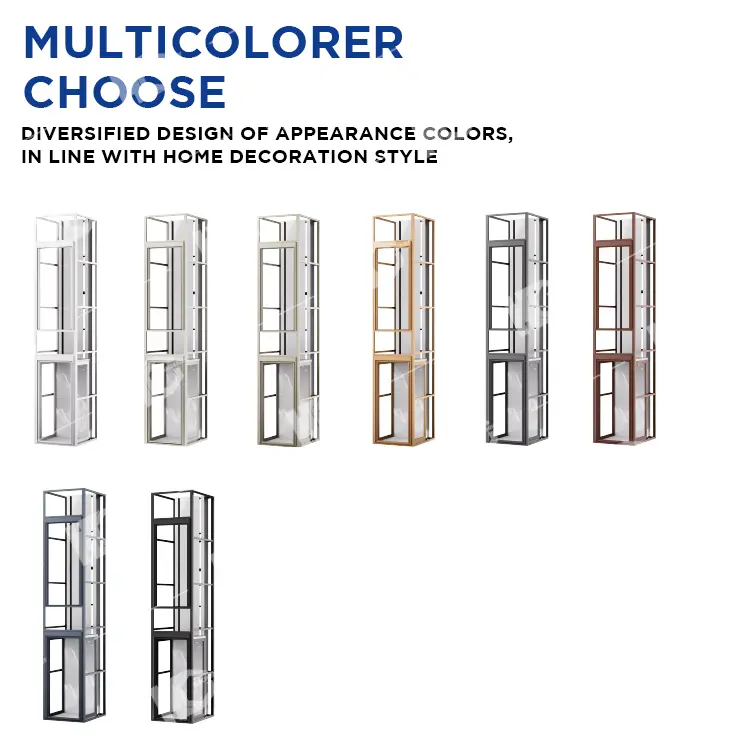

Step 5: Consider Design

Modern elevators can be customized with:

• Glass panels
• Premium finishes
• Smart lighting

Procurement Advice for Buyers

Choose a Trusted Supplier

Look for manufacturers with:

• Industry experience
• International certifications
• Proven export capability

Request Detailed Technical Data

Ensure specifications are clear and meet your requirements.

Compare Multiple Offers

Evaluate not just price, but:

• Features
• Installation services
• After-sales support

Confirm After-Sales Service

Reliable suppliers should provide:

• Maintenance support
• Spare parts availability
• Technical assistance

Plan for Long-Term Value

Focus on durability and performance rather than just initial cost.

Future Trends

Hydraulic home elevators are evolving with new technologies:

• Machine room-less designs
• Smart control systems
• Energy-efficient pumps
• Luxury customization options

These innovations are making hydraulic elevators even more attractive for modern homes.

Conclusion

Hydraulic home elevators are a practical, safe, and cost-effective solution for residential buildings. With their smooth operation, strong load capacity, and flexible installation, they meet the needs of both modern homeowners and property developers.

By understanding the system’s features, comparing available options, and working with reliable suppliers, buyers can make a confident investment that enhances both daily living and property value.

In today’s housing landscape, a hydraulic home elevator is no longer just an upgrade—it’s a smart, future-ready solution for comfortable and accessible living.
